19 M322D Wheel Excavator specifications

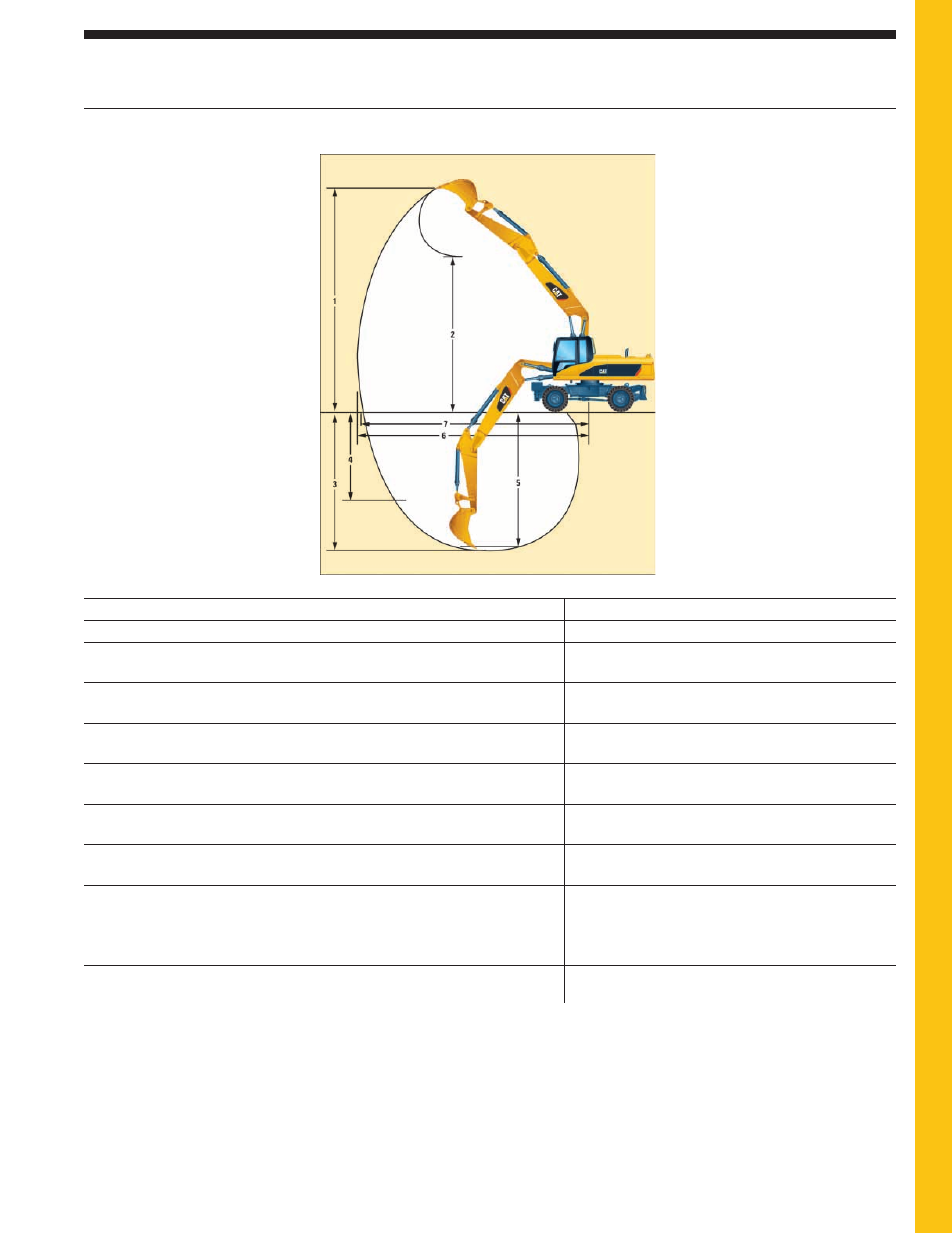

VA Boom and One-piece Boom Working Ranges
VA Boom One-piece Boom
Stick Length 2.2 m (7'3") 2.5 m (8'2") 2.9 m (9'6") 2.2 m (7'3") 2.5 m (8'2") 2.9 m (9'6")
1 Digging Height 10 560 mm 10 620 mm 10 930 mm 9670 mm 9540 mm 9760 mm
(34'8") (34'11") (35'11") (31'9") (31'4") (32'1")
2 Dump Height 6930 mm 7170 mm 7500 mm 6300 mm 6230 mm 6450 mm
(22'9") (23'7") (24'8") (20'8") (20'5") (21'2")
3 Digging Depth 5990 mm 6280 mm 6680 mm 5770 mm 6070 mm 6470 mm
(19'8") (20'7") (21'11") (18'11") (19'11") (21'3")
4 Vertical Wall 4420 mm 4450 mm 4830 mm 4480 mm 4780 mm 5160 mm
Digging Depth (14'6") (14'7") (15'10") (14'9") (15'8") (16'11")
5 Depth 2.5 m (8'2") 5780 mm 6090 mm 6510 mm 5570 mm 5880 mm 6300 mm
Straight Clean-up (20'0") (20'0") (21'5") (18'3") (19'4") (20'8")
6 Reach 9770 mm 10 000 mm 10 390 mm 9890 mm 10 100 mm 10 490 mm
(32'1") (32'10") (34'1") (32'6") (33'2") (34'5")
7 Reach at 9590 mm 9830 mm 10 230 mm 9720 mm 9930 mm 10 320 mm
Ground Level (31'6") (32'3") (33'7") (31'11") (32'7") (33'11")
Bucket Forces 140 kN 140 kN 140 kN 140 kN 140 kN 140 kN
(ISO 6015) (31,472 lbf) (31,472 lbf) (31,472 lbf) (31,472 lbf) (31,472 lbf) (31,472 lbf)
Stick Forces 123 kN 114 kN 104 kN 123 kN 114 kN 104 kN
(ISO 6015) (27,650 lbf) (25,627 lbf) (23,379 lbf) (27,650 lbf) (25,627 lbf) (23,379 lbf)
Values 1-7 are calculated with bucket and quick coupler with a tip radius of 1712 mm (5'7").
Breakout force values are calculated with heavy lift on (no quick coupler) and a tip radius of 1511 mm (4'11").
2.2 m (7'3"), 2.5 m (8'2"), 2.9 m (9'6") Sticks
