24 140M Motor Grader specifications
Dimensions

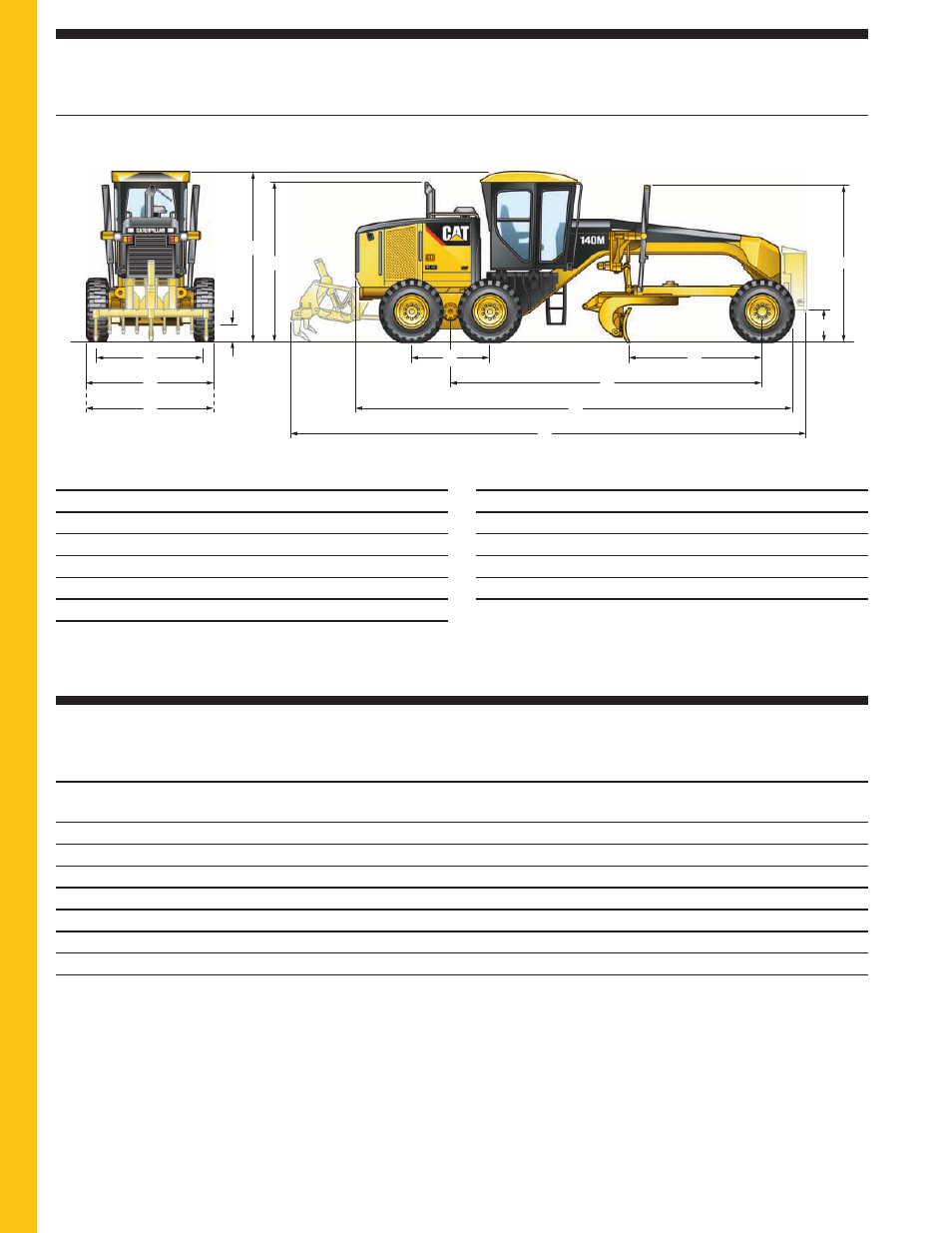

All dimensions are approximate based on standard machine configuration with 14.00-24 16PR (G-2) tires.
1 Height – Top of Cab 3293 mm 129.6 in
2 Height – Front Axle Center 571 mm 22.5 in
3 Length – Between Tandem Axles 1523 mm 60 in
4 Length – Front Axle to Moldboard 2552 mm 100.5 in
5 Length – Front Axle to Mid Tandem 6121 mm 241 in
6 Length – Front Tire to Rear of Machine 8641 mm 340.2 in
7 Length – Counterweight to Ripper 10 144 mm 399.4 in
8 Ground Clearance at Rear Axle 341 mm 13.4 in
9 Height to Top of Cylinders 3040 mm 119.7 in
10 Height to Exhaust Stack 3054 mm 120.3 in
11 Width – Tire Center Lines 2127 mm 83.7 in
12 Width – Outside Rear Tires 2518 mm 99.1 in
13 Width – Outside Front Tires 2518 mm 99.1 in
2
9
1
8
10
4 3
5
11
12
13 6
7
Optional Tire Arrangements
Total machine width and changes in machine weight are shown for common tire options.
Wheel Width – Outside Width – Outside Tire Arrangement
Group Tires Front Tires Rear Tires Weight
10x24 MP 14.00-24 Firestone SGG RB 12PR 2600 mm 102.4 in 2600 mm 102.4 in 156 kg 343 lb
10x24 MP 14.00-24 Goodyear SGG-2A 12PR 2562 mm 100.9 in 2562 mm 100.9 in 223 kg 491 lb
10x24 MP 14.00R24 Bridgestone VUT 1 Star 2550 mm 100.4 in 2550 mm 100.4 in 303 kg 667 lb
10x24 MP 14.00R24 Michelin XGLA2 1 Star 2567 mm 101.1 in 2567 mm 101.1 in 327 kg 720 lb
10x24 MP 14.00R24 Michelin XSNO Plus 1 Star 2557 mm 100.7 in 2557 mm 100.7 in 425 kg 936 lb
10x24 MP 14.00R24 Bridgestone VKT 1 Star 2562 mm 100.9 in 2562 mm 100.9 in 520 kg 1,146 lb
14x25 MP 17.5R25 Michelin XHA 1 Star 2754 mm 108.4 in 2754 mm 108.4 in 628 kg 1,384 lb
14x25 MP 17.5R25 Bridgestone VKT 1 Star 2734 mm 107.6 in 2734 mm 107.6 in 695 kg 1,532 lb
• Based off the Standard Arrangement, AWD Arrangements will have between 44 mm (1.7 in) – 240 mm (9.4 in) additional width.
