17 D6K Track-Type Tractor specifications
Dimensions
(approximate)

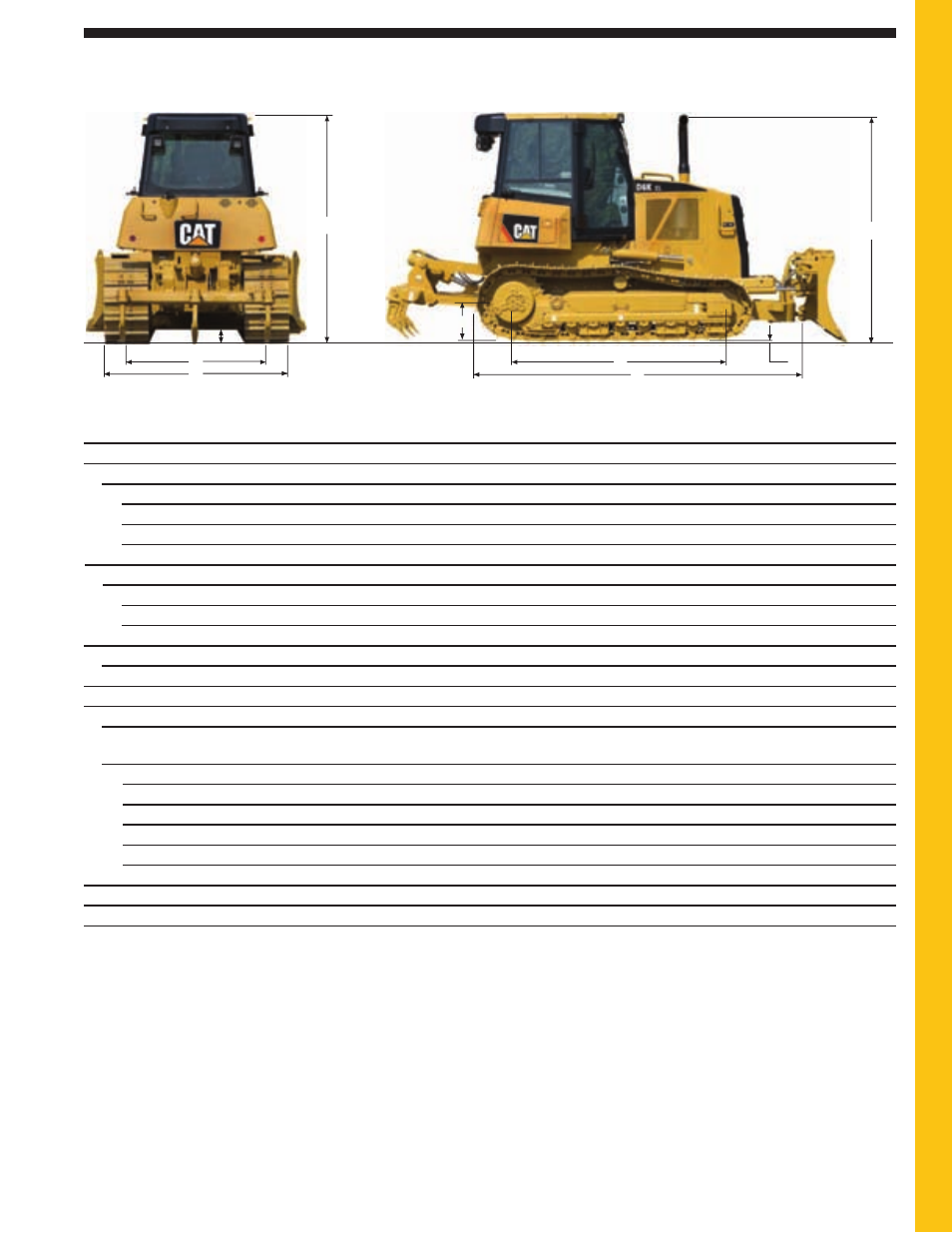

Tractor Dimensions
XL LGP
1 Track gauge 1770 mm 70 in 2000 mm 79 in
2 Width of tractor
With the following attachments:
Standard shoes without blade 2330 mm 92 in 2760 mm 109 in
Standard shoes with VPAT blade angled 25
°
2817 mm 111 in 3118 mm 123 in
Standard shoes with foldable blade in transport position 2336 mm 92 in 2760 mm 109 in
3 Machine height from tip of grouser:
With the following equipment: — —
ROPS canopy 2958 mm 116 in 2958 mm 116 in
ROPS cab 2958 mm 116 in 2958 mm 116 in
4 Drawbar height (center of clevis)
From ground face of shoes 483 mm 19 in 483 mm 19 in
5 Length of track on ground 2645 mm 104 in 2645 mm 104 in
6 Length of basic tractor (with C-Frame) 4220 mm 166 in 4220 mm 166 in
With the following attachments,
add to basic tractor length:
— —
With the following attachments, add to basic tractor length:
Drawbar 320 mm 13 in 320 mm 13 in
Ripper 1133 mm 45 in 1133 mm 45 in
PA50 winch 640 mm 25 in 640 mm 25 in
VPAT blades, straight 468 mm 18 in 468 mm 18 in
VPAT blade, angled 25 ° 1116 mm 44 in 1179 mm 46 in
7 Height over stack from tip of grouser 2914 mm 115 in 2914 mm 115 in
8 Height of grouser 48 mm 2 in 48 mm 2 in
9 Ground clearance from ground face of shoe (per SAE J1234) 360 mm 14 in 360 mm 14 in
