365C L Hydraulic Excavator specifications

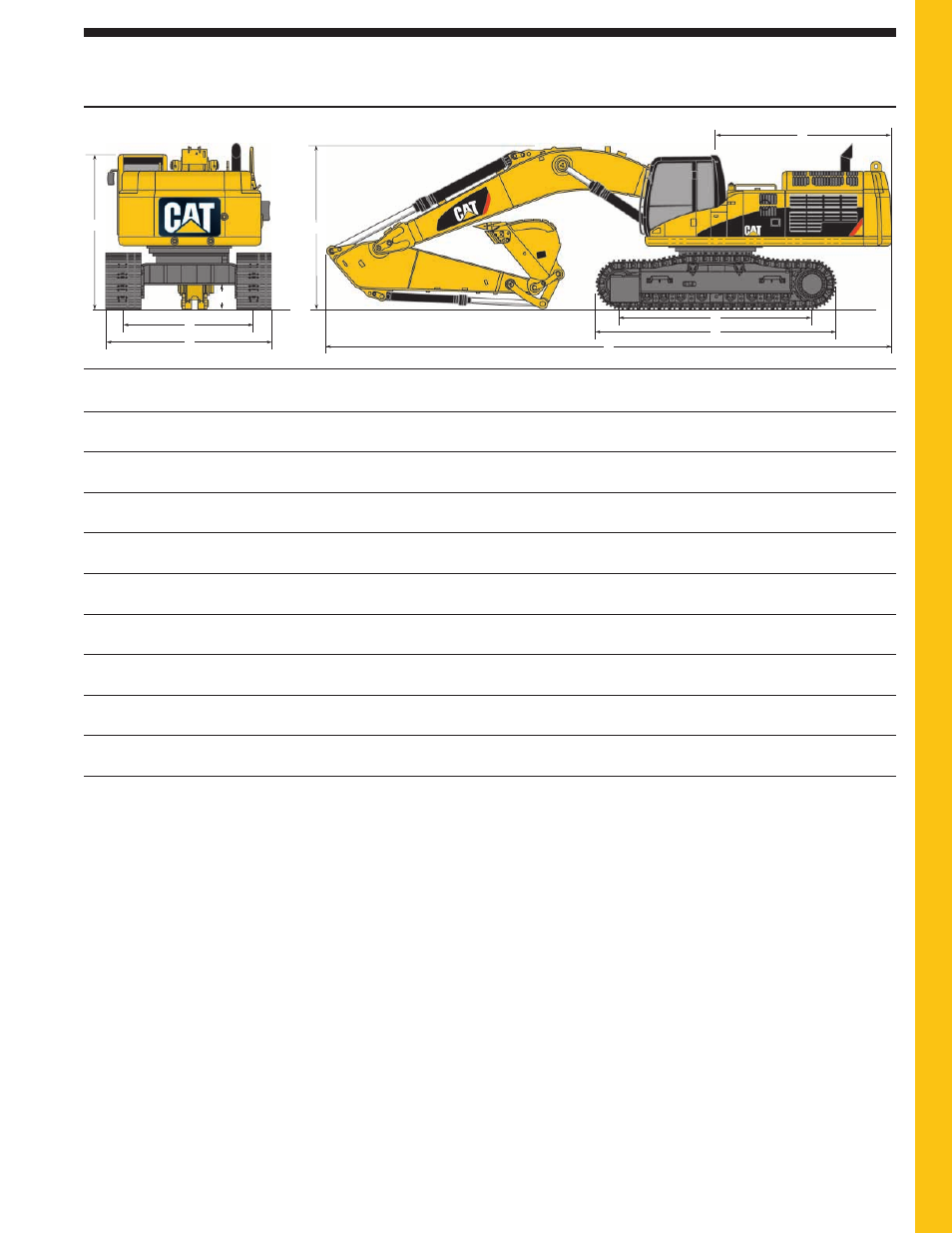

Dimensions
All dimensions are approximate.
Reach Boom
Mass Boom
7.8 m (25'7")
6.59 m (21'7")
Stick
R4.67 m
R4.15 m
R3.6 m
R2.84 m
M3.0 m
M2.57 m
(15'4")
(13'7")
(11'10")
(9'4")
(9'10")
(8'5")
1
Shipping Height
4960 mm
4615 mm
4390 mm
4200 mm
4560 mm
4600 mm
(16'3")
(15'2")
(14'5")
(13'9")
(15'0")
(15'1")
2
Shipping Length
13 170 mm
13 225 mm
13 310 mm
13 310 mm
12 150 mm
12 160 mm
(43'3")
(43'5")
(43'9")
(43'9")
(39'11")
(39'11")
3
Tail Swing Radius
4020 mm
4020 mm
4020 mm
4020 mm
4020 mm
4020 mm
(13'3")
(13'3")
(13'3")
(13'3")
(13'3")
(13'3")
4
Length to Center of Rollers
4705 mm
4705 mm
4705 mm
4705 mm
4705 mm
4705 mm
(15'5")
(15'5")
(15'5")
(15'5")
(15'5")
(15'5")
5
Track Length
5860 mm
5860 mm
5860 mm
5860 mm
5860 mm
5860 mm
(19'3")
(19'3")
(19'3")
(19'3")
(19'3")
(19'3")
6
Ground Clearance
840 mm
840 mm
840 mm
840 mm
840 mm
840 mm
(33")
(33")
(33")
(33")
(33")
(33")
7
Track Gauge (Shipping)*
2750 mm
2750 mm
2750 mm
2750 mm
2750 mm
2750 mm
(9'0")
(9'0")
(9'0")
(9'0")
(9'0")
(9'0")
8
Transport Width**
3500 mm
3500 mm
3500 mm
3500 mm
3500 mm
3500 mm
(11'6")
(11'6")
(11'6")
(11'6")
(11'6")
(11'6")
9
Cab Height
3535 mm
3535 mm
3535 mm
3535 mm
3535 mm
3535 mm
(11'7")
(11'7")
(11'7")
(11'7")
(11'7")
(11'7")
**
* Track gauge in extended (working) position: 3250 mm (10'8")
*
** Transport width shown for 750 mm (30") shoes.
Add 150 mm (6") for 900 mm (36") shoes.
Subtract 100 mm (4") for 650 mm (26") shoes.
