22 12M Motor Grader specifications

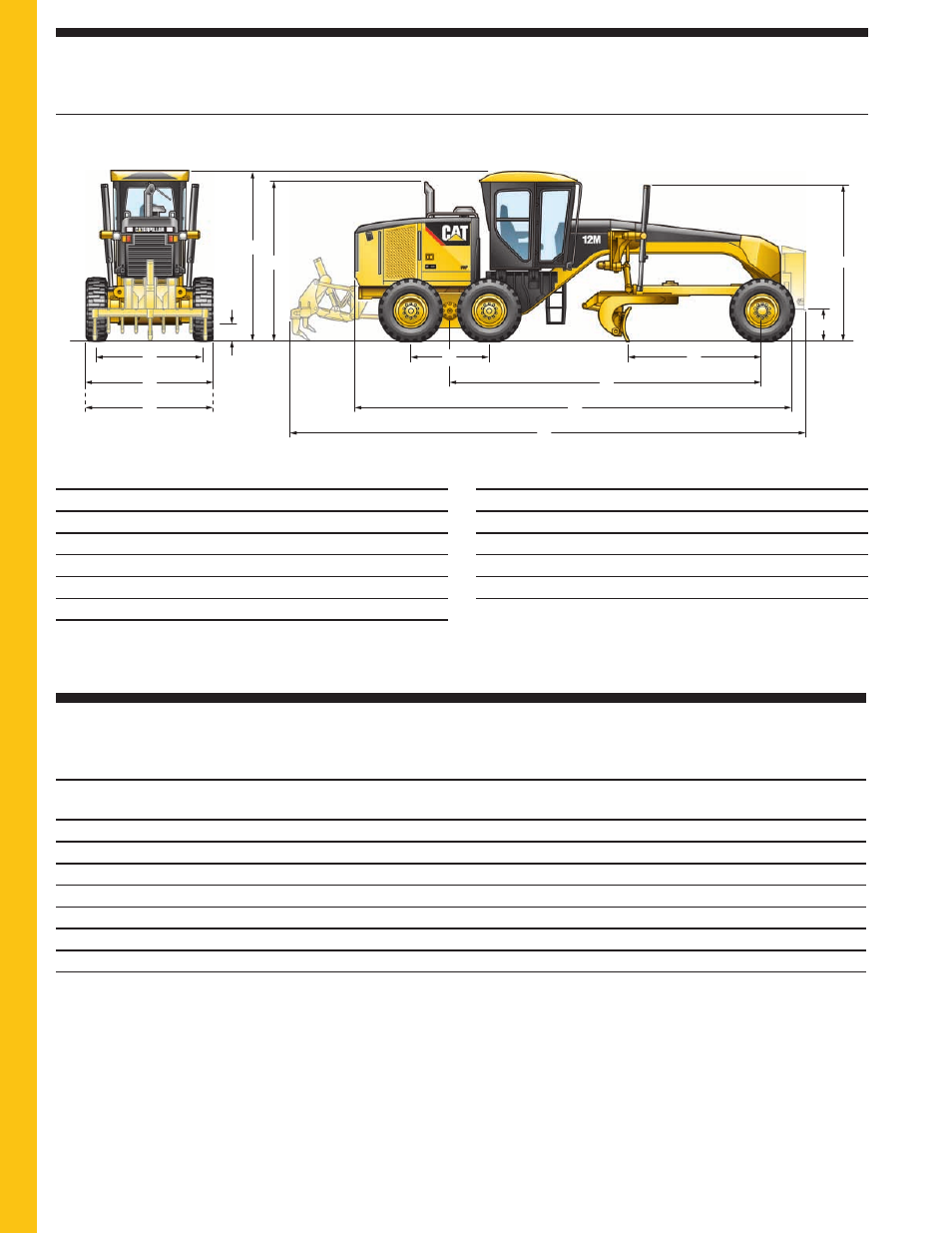

Dimensions
All dimensions are approximate, based on standard machine configuration with 13.00-24 12PR (G-2) tires.
1 Height – top of cab 3290 mm 129.5 in
2 Height – front axle center 572 mm 22.5 in
3 Length – between tandem axles 1511 mm 59.5 in
4 Length – front axle to moldboard 2511 mm 98.9 in
5 Length – front axle to mid tandem 5915 mm 232.8 in
6 Length – front tire to rear of machine 8488 mm 334.1 in
7 Length – counterweight to ripper 9889 mm 389.3 in
8 Ground clearance at rear axle 347 mm 13.6 in
9 Height to top of cylinders 2920 mm 115 in
10 Height to exhaust stack 2885 mm 113.6 in
11 Width – tire center lines 2136 mm 84.1 in
12 Width – outside rear tires 2512 mm 98.9 in
13 Width – outside front tires 2531 mm 99.6 in
2
9
1
8
10
4 3
5
11
12
13 6
7
Optional Tire Arrangements
Total machine width and changes in machine weight are shown for common tire options.
Wheel Outside Front Tires Outside Rear Tires Tire Arrangement
Group Tires Width Width Weight
9x24 SP 13.00-24 Firestone SGG RB 12PR 2531 mm 99.6 in 2512 mm 98.9 in 0 kg 0 lb
10x24 MP 14.00-24 Goodyear SGG 12PR 2562 mm 100.9 in 2541 mm 100 in 223 kg 491 lb
10x24 MP 14.00R24 Bridgestone VKT 1 Star 2562 mm 100.9 in 2541 mm 100 in 520 kg 1,146 lb
10x24 MP 14.00R24 Michelin XGLA2 1 Star 2567 mm 101.1 in 2546 mm 100.2 in 327 kg 720 lb
10x24 MP 14.00R24 Bridgestone VUT 1 Star 2550 mm 100.4 in 2529 mm 99.6 in 302 kg 666 lb
14x25 MP 17.5R25 Bridgestone VKT 1 Star 2734 mm 107.6 in 2713 mm 106.8 in 694 kg 1,531 lb
13x25 SP 17.5R25 Michelin XTLA 1 Star 2805 mm 110.4 in 2784 mm 109.6 in 293 kg 647 lb
13x25 SP 17.5R25 Michelin XHA 1 Star 2801 mm 110.3 in 2780 mm 109.4 in 425 kg 937 lb
