9 301.6C/301.8C Mini Hydraulic Excavators specifications

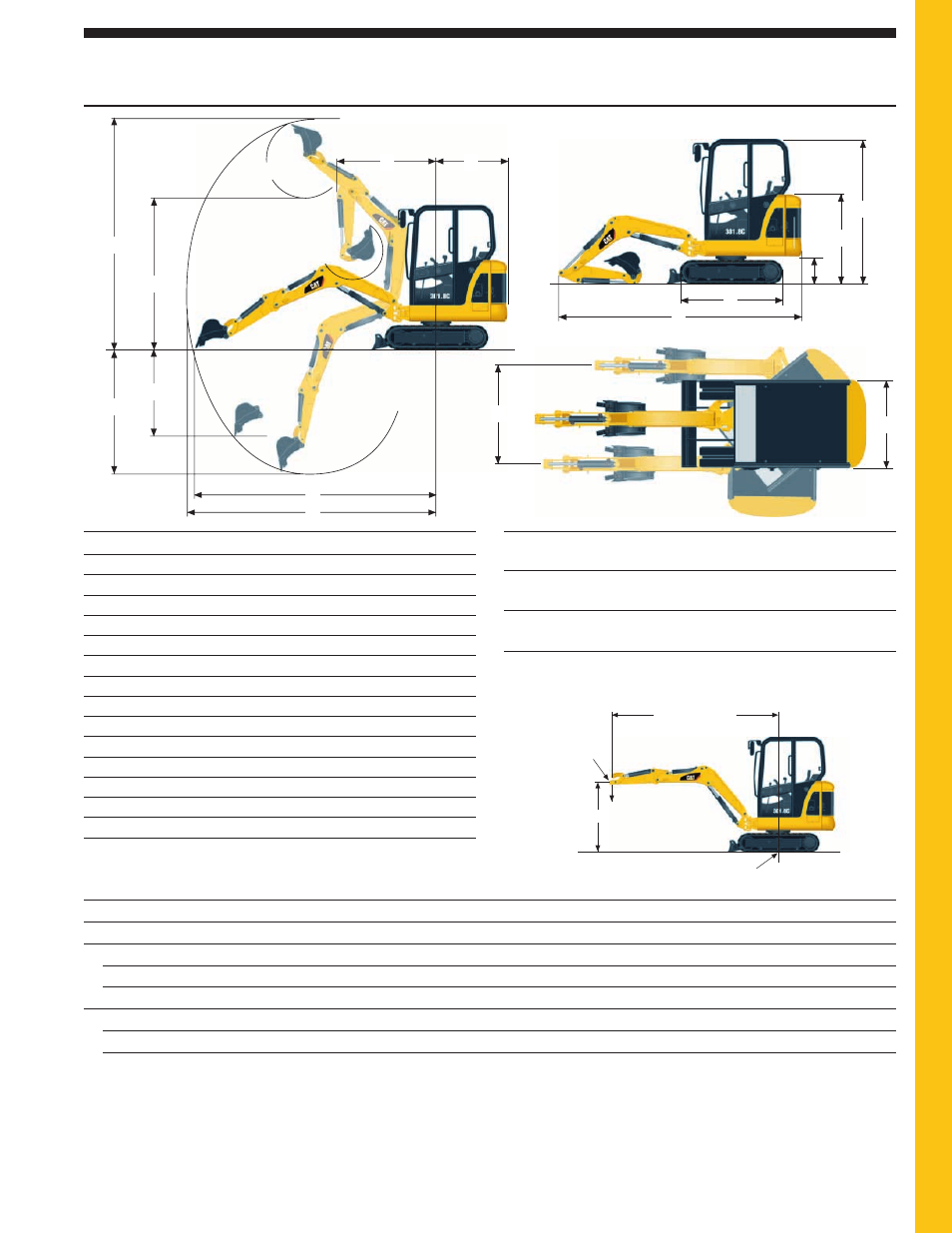

Dimensions and Lift Capacities
Standard 301.8C Extended
Undercarriage Undercarriage
Track and blade width 980 mm 1340 mm
3'3" 4'5"
Gauge width 750 mm 1110 mm
2'6" 3'8"
Shoe width 230 mm 230 mm
9" 9"
Lift Capacities at Ground Level Over Front Over Side Over Front Over Side
Lift point radius 2000 mm 6'7" 2000 mm 6'7" 3000 mm 9'10" 3000 mm 9'10"
Standard track
Blade down 787 kg* 1,735 lb* 362 kg 798 lb 450 kg* 992 lb* 219 kg 483 lb
Blade up 515 kg 1,135 lb 329 kg 725 lb 300 kg 661 lb 201 kg 443 lb
Extended track (301.8 only)
Blade down 782 kg* 1,724 lb* 580 kg 1,278 lb 445 kg* 981 lb* 334 kg 736 lb
Blade up 524 kg 1,155 lb 536 kg 1,181 lb 303 kg 668 lb 311 kg 686 lb
* Limited by hydraulic capacity rather than tipping load.
The above loads are in compliance with SAE hydraulic excavator lift capacity rating standard SAE J1097 and do not exceed 87% of hydraulic lifting capacity
or 75% of tipping capacity.
Excavator bucket weight is not included on this chart. Lifting capacities are for standard stick.
Standard Stick Long Stick
1 1550 mm 5'1" 1560 mm 5'1"
2 3350 mm 11' 3460 mm 11'4"
3 2360 mm 7'9" 2480 mm 8'2"
4 2080 mm 6'10" 2320 mm 7'7"
5 1620 mm 5'4" 1810 mm 5'11"
6 3610 mm 11'10" 3800 mm 12'6"
7 3700 mm 12'2" 3890 mm 12'9"
8 1090 mm 3'7" 1090 mm 3'7"
9 2190 mm 7'2" 2190 mm 7'2"
10 1365 mm 4'6" 1365 mm 4'6"
11 435 mm 1'5" 435 mm 1'5"
12 1575 mm 5'2" 1575 mm 5'2"
13 3695 mm 12'1" 3695 mm 12'1"
14 975 mm 3'2" 975 mm 3'2"
With tracks level on the ground.
15 980 mm 3'3" 980 mm 3'3"
Lift Point Radius
Lift Point Height
Lift Point
Axis of Rotation
1 8
2
3
4
5
6
7
9
10
11
12
13
14
15
200°
