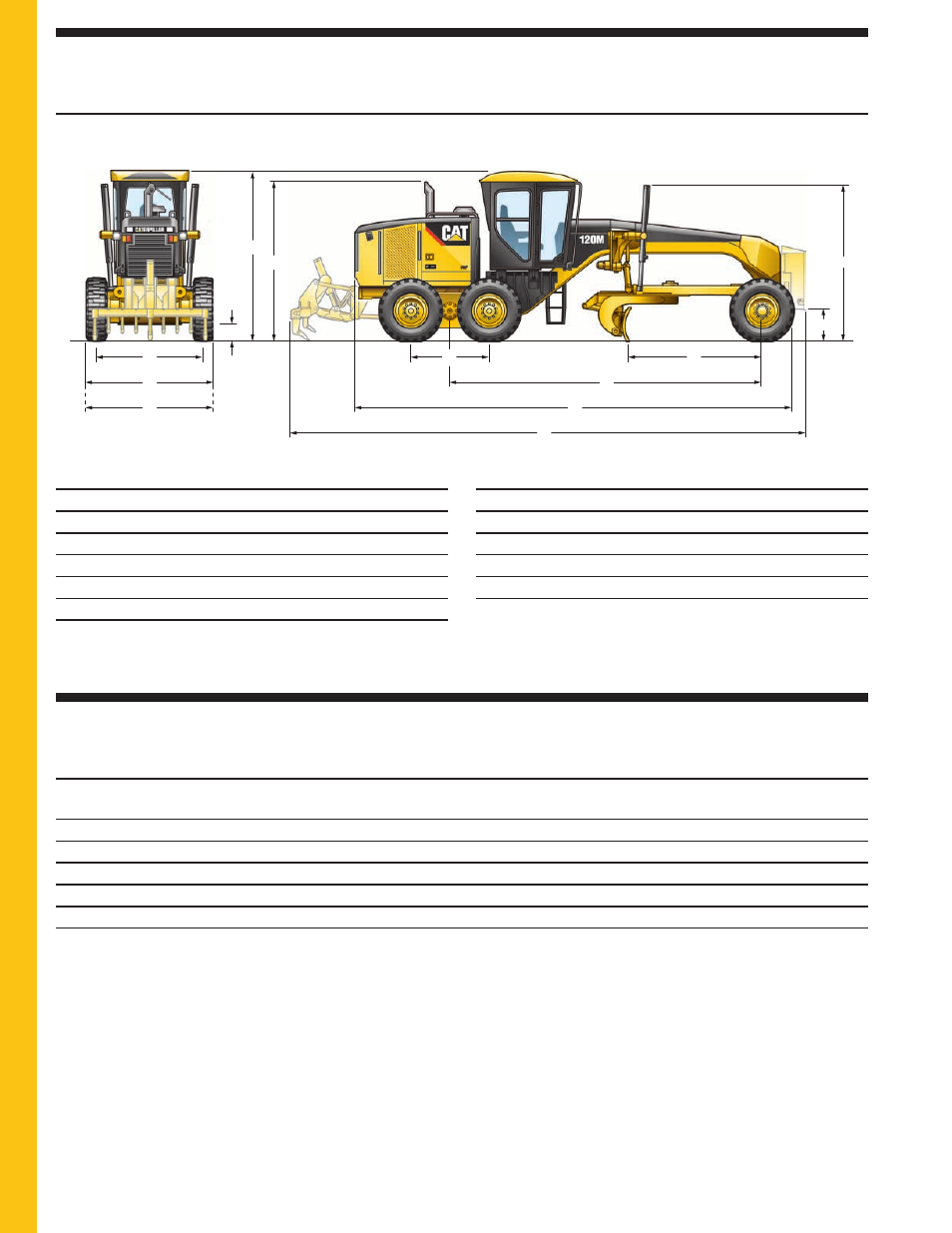

Dimensions
All dimensions are approximate, based on standard machine configuration with 13.00-24 12PR (G-2) tires.
1 Height – top of cab 3308 mm 130 in
2 Height – front axle center 572 mm 22.5 in
3 Length – between tandem axles 1511 mm 59.5 in
4 Length – front axle to moldboard 2511 mm 98.9 in
5 Length – front axle to mid tandem 5915 mm 232.8 in
6 Length – front tire to rear of machine 8488 mm 334.1 in
7 Length – counterweight to ripper 9889 mm 389.3 in
8 Ground clearance at rear axle 347 mm 13.6 in
9 Height to top of cylinders 2920 mm 115 in
10 Height to exhaust stack 2885 mm 113.6 in
11 Width – tire center lines 2136 mm 84.1 in
12 Width – outside rear tires 2512 mm 98.9 in
13 Width – outside front tires 2531 mm 99.6 in
2
9
1
8
10
4 3
5
11
12
13 6
7
24 120M Motor Grader specifications
Optional Tire Arrangements
Total machine width and changes in machine weight are shown for common tire options.
Wheel Outside Front Tires Outside Rear Tires Tire Arrangement
Group Tires Width Width Weight
9x24 SP 13 .00-24 Firestone SGG RB 12PR 2531 mm 99.6 in 2512 mm 98.9 in 0 kg 0 lb
10x24 MP 14.00-24 Goodyear SGG-2A 12PR 2562 mm 100.9 in 2543 mm 101.1 in 323 kg 712 lb
9x24 SP 14.00R24 Michelin XGLA2 1 Star 2553 mm 100.5 in 2534 mm 99.8 in 272 kg 600 lb
10x24 MP 14.00R24 Michelin XGLA2 1 Star 2567 mm 101.1 in 2548 mm 100.3 in 427 kg 941 lb
14x25 MP 17.5R25 Michelin XTLA 1 Star 2758 mm 108.6 in 2739 mm 107.8 in 596 kg 1314 lb
14x25 MP 17.5R25 Bridgestone VKT 1 Star 2734 mm 107.6 in 2715 mm 106.9 in 795 kg 1753 lb
• Based off the standard arrangement, AWD arrangements will have between 113 mm (4.4 in) – 309 mm (12.2 in) additional width.
