Atdec Telehook TH-WH-PJ-CM Installation manual User Manual

Page 2

Centre of
Ceiling Mount

Centre of Gravity

NOTE

If your mounting holes are recessed

into the projector, you may need to use

the additional Spacers supplied in the

Bits Bag. Please select the appropriate

Spacers according to the design of your

projector.

Extension Bracket

Bottom Spacer

Spacer

Recessed Mounting Hole

E.1.
Pick up the projector using both of your index fingers.
Move your fingers along the side of the Projector (follow
Step 1) until it is level. Remember the balance point.

E.2.
Repeat this process for the perpendicular side
(follow Step 2)

E.3.
Where both balance points meet is the Centre of Gravity
of your projector. Use a pencil to mark this point.

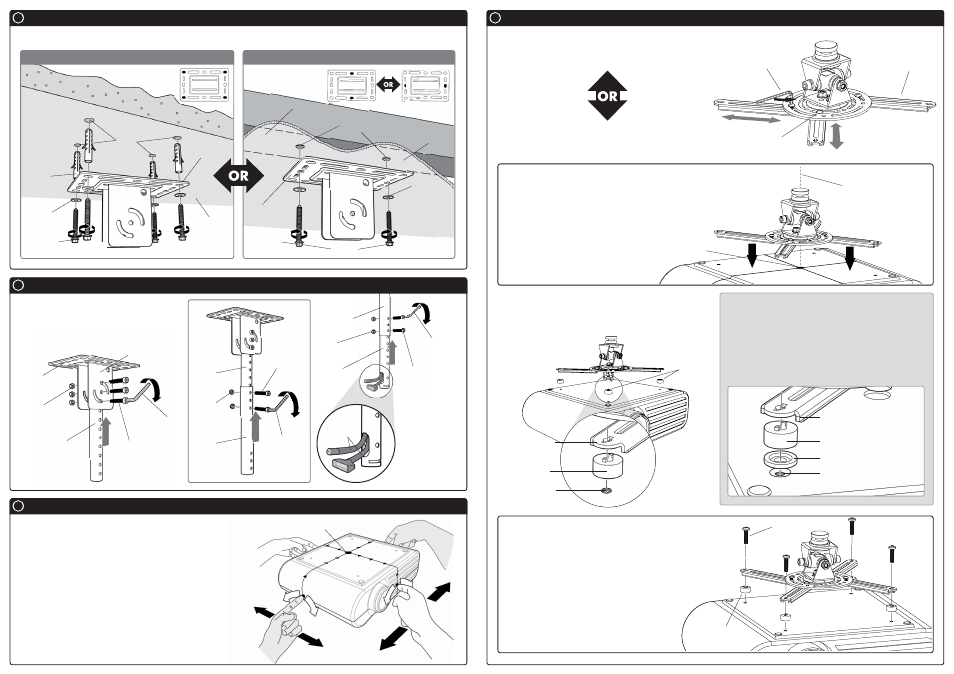

Choose the appropriate installation procedure depending on your ceiling type.

Installing the Ceiling Plate

Finding the Centre of Gravity of the Projector

Attaching the Ceiling Mount Assembly to the Projector

Nylon
Anchor
Plug

Centre of Gravity

3mm
Allen Key

Extension
Bracket

F.1.
Loosen the M5x10mm Screws using the supplied 3mm
Allen Key until you can slide the extension brackets freely,
as shown.

You may need to replace the attached Extension Brackets
with the additional longer brackets supplied in the package,
to suit the mounting hole configuration of your projector.

F.4.
Select the correct Mounting Screws from the Bits
Bag and firmly screw the Ceiling Mount Assembly
onto your Projector.

Once this is done, the Projector Ceiling Mount
Assembly is ready to be mounted onto the Bottom
Ceiling Hanger.

F.2.
Place the Ceiling Mount Assembly over the Projector and
align the centre of the Ceiling Mount with the Centre of
Gravity marked previously on the Projector.

Step 1

Step 2

NOTE:

Ensure the
screws are

securely

fixed into the

Timber Beam

Mounting
Plate

Washer

14 Gauge
Coach Screw

Masonry
Ceiling

8mm

(

”)

Holes

Timber
Beam

20mm
Washer

14 Gauge
Coach Screw

Mounting
Plate

Plaster
Board

3mm (

”)

Holes

Tighten

Masonry

Plaster Board

Attaching the Ceiling Hangers to the Fixing Coupler

D.1.
Install the Ceiling Hangers to the
required height as shown in the following
diagrams.

D.2.

D.3.

Bottom
Spacer

Extension
Bracket

Mounting
Hole

Bottom
Spacers

Mounting Screws

Bottom Spacer

F.3.
Place the Bottom Spacers in between the Extension
Brackets and the Projector, and align the mounting
holes as shown below.

Use the recommended mounting

hole pattern shown:

Use the recommended

mounting hole pattern

shown:

Mounting
Plate

Fixing
Coupler

M8x50mm
Socket Head
Cap Screw

6mm
Allen
Key

M8
Nyloc Nut

Top
Ceiling
Hanger

M8
Nyloc
Nut

M8x50mm
Socket Head
Cap Screw

6mm
Allen
Key

Mid Ceiling
Hanger

Bottom
Ceiling
Hanger

M8x50mm
Socket Head
Cap Screw

6mm
Allen
Key

M8
Nyloc Nut

Top
Ceiling
Hanger

Mid
Ceiling
Hanger

Cable Management

Option

Feed the projector

cables through the

slot on the Bottom
Ceiling Hanger as

shown.

projector
cables

M5x10mm
Socket Button
Cap Screw
