Document Number: 93564 For technical questions, contact: [email protected] www.vishay.com
Revision: 17-Jun-08 1

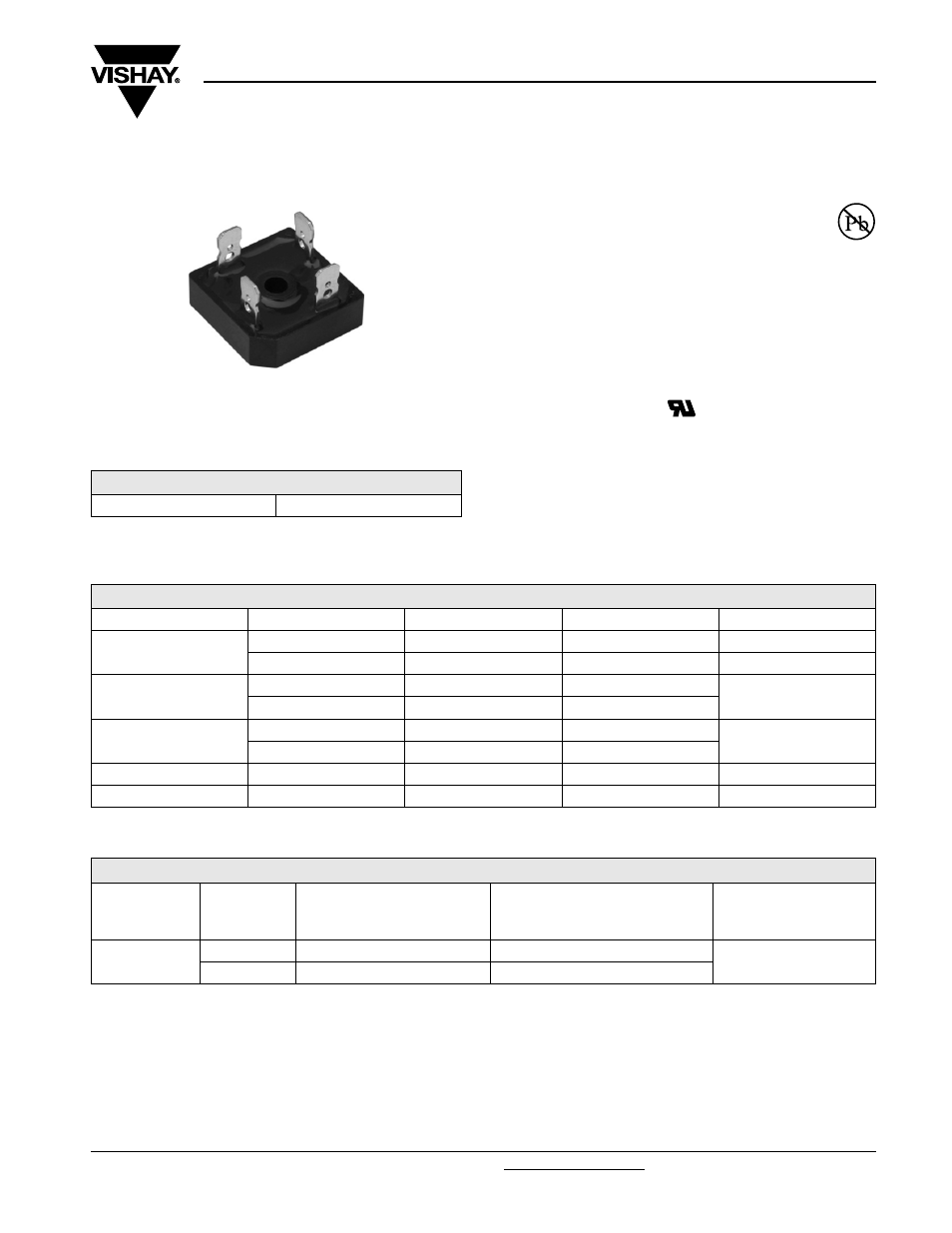

Single Phase Bridge
(Power Modules), 25 A/35 A
MB High Voltage Series
Vishay High Power Products
FEATURES
• Universal, 3 way terminals:
push-on, wrap around or solder
• High thermal conductivity package, electrically
insulated case
• Center hole fixing
• Excellent power/volume ratio
• Nickel plated terminals solderable using lead (Pb)-free
solder; solder alloy Sn/Ag/Cu (SAC305); solder
temperature 260 to 275 °C
• UL E300359 approved
• RoHS compliant
• Designed and qualified for industrial and consumer level
DESCRIPTION
A range of extremely compact, encapsulated single phase
bridge rectifiers offering efficient and reliable operation. They
are intended for use in general purpose and instrumentation
applications.
ELECTRICAL SPECIFICATIONS
PRODUCT SUMMARY
I
O
25 A/35 A
D-34
RoHS
COMPLIANT
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL CHARACTERISTICS 26MB-A 36MB-A UNITS
I
O
25 35 A
T
C
70 55 °C
I
FSM
50 Hz 400 475
A
60 Hz 420 500
I 2 t
50 Hz 790 1130
A 2 s
60 Hz 725 1030
V
RRM
Range 1400 to 1600 1400 to 1600 V
T
J
- 55 to 150 - 55 to 150 °C
VOLTAGE RATINGS
TYPE
NUMBER VOLTAGE
CODE
V
RRM
, MAXIMUM REPETITIVE
PEAK REVERSE VOLTAGE
V
V
RSM
, MAXIMUM NON-REPETITIVE
PEAK REVERSE VOLTAGE
V
I
RRM
MAXIMUM
AT T
J
MAXIMUM
mA
26MB..A
36MB..A 140 1400 1500
2
160 1600 1700
