Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
POW-R-BLOK
TM
http://www.pwrx.com
Dual SCR Isolated Module
90 Amperes / Up to 1800 Volts
Revision Date: 08/31/2011
CD43__90C
®
BB

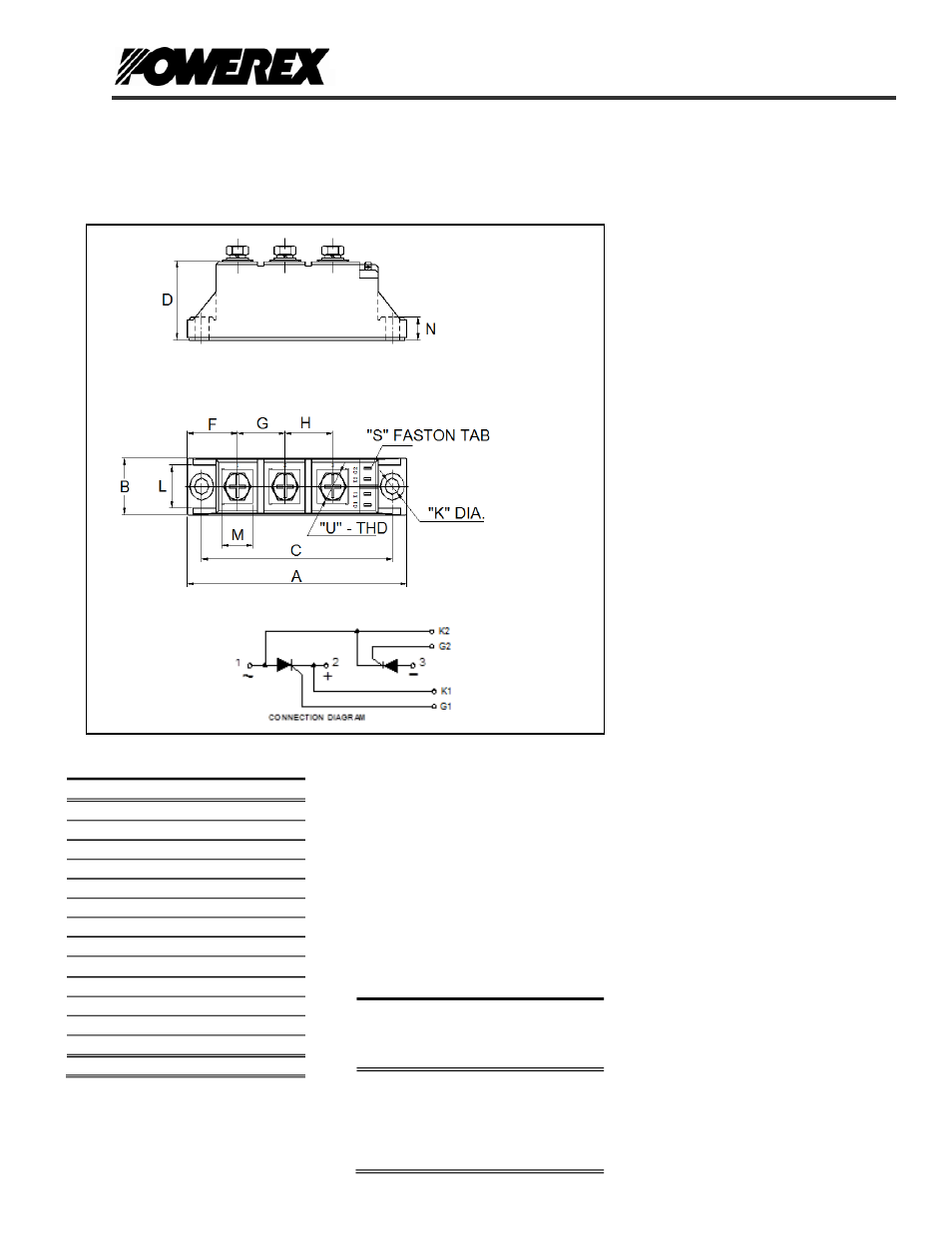

CD43__90C Outline Dimensions
Dimension
Inches
Millimeters
A
3.62
92
B
0.83
21
C
3.15
80
D
1.18
30
F
0.83
21
G
0.79
20
H
0.79
20
K
0.24
6.2
L
0.63
16
M
0.51
13
N
0.33
8.5
S
0.11 x .02
2.8 x 0.5
U
M5
M5
Note: Dimensions are for reference only.
CD43__90C
Dual SCR Isolated
POW-R-BLOK
TM
Module
90 Amperes / Up to 1800 Volts
Ordering Information:
Select the complete nine digit module
part number from the table below.
Example: CD431690C is a 1600Volt,
90 Ampere Dual SCR Isolated
POW-R-BLOK
TM
Module
Type
Voltage
Volts
(x100)
Current
Amperes
Version
CD43
08
12
14
16
18
90
C
Description:
Powerex Dual SCR Modules are
designed for use in applications
requiring phase control and isolated
packaging. The modules are isolated
for easy mounting with other
components on a common heatsink.
Features:
Electrically Isolated Heatsinking
Compression Bonded for Increased
Power Cycling Capability
Low Thermal Impedance
for Improved Current Capability
RoHS Compliant
UL Recognized (E78240)
Benefits:
No Additional Insulation
Components Required
Easy Installation
No Clamping Components
Required
Reduce Engineering Time
Applications:
Bridge Circuits
AC & DC Motor Drives
Battery Supplies
Power Supplies
Large IGBT Circuit Front Ends
Lighting Control
Heat & Temperature Control
Welders
