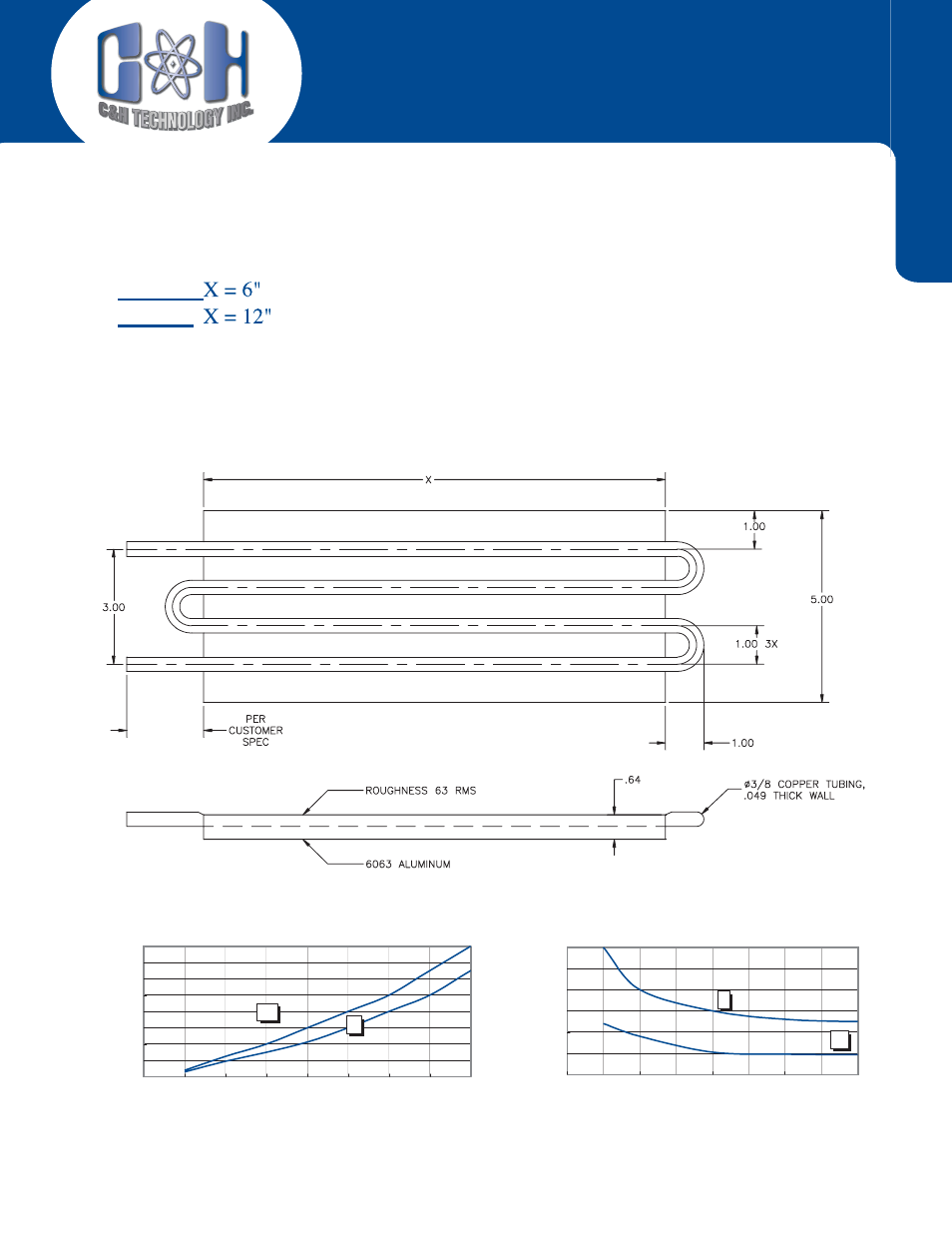

Thermal performance as low as .005 ˚ C/W. Ideal for cooling IGBT modules or other high
wattage modules. Can handle extremely high heat concentrations with lower device
temperature rise. Maintains lower overall junction temperatures. Precision machined
module mounting surface. Custom widths and lengths available.
CH8000
CH8010
6"
12"
0
0.005
0.01
0.015
0.02
0.025
0.03
0 1 2 3 4
Water Flow GPM
Thermal Resistance C/W
6"
12"
0
2
4
6
8
10
12
14
16
0 0.5 1 1.5 2 2.5 3 3.5 4
Water Flow GPM
Pressure Drop-PSI
C&H TECHNOLOGY, INC. • Phone: 952-933-6190 • Fax: 952-933-6223 • Toll Free: 1-800-274-4284
www.chtechnology.com
LIQUID COOLED HEAT SINKS
4-Pass Model
