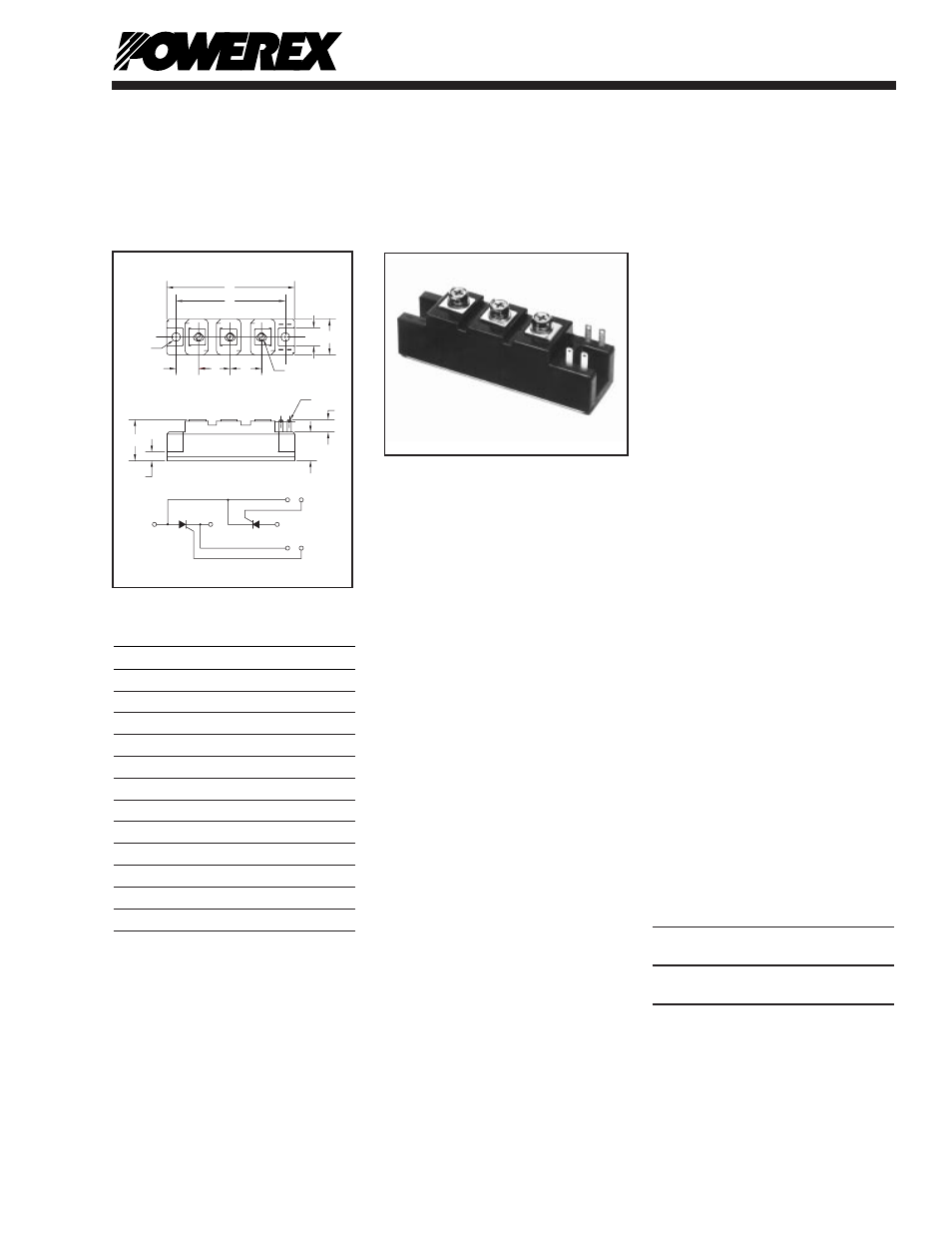

Dual scr pow-r-blok™ modules – C&H Technology CM4316A2 User Manual
Page 2
Dimension
Inches
Millimeters
A
3.681 Max.
93.5 Max.
B
3.150
80
C
1.181 Max.
30 Max.
D
1.024 Max.
26 Max.
E
0.906
23
F
0.827
21
G
0.650
16.5
H
0.512
13
J
0.354
9
K
0.256
6.5
L
0.256 Dia.
Dia. 6.5
M
M5 Metric
M5
Description:
Powerex Dual SCR
POW-R-BLOK™ Modules are
designed for use in applications
requiring phase control and
isolated packaging. The modules
are isolated for easy mounting
with other components on
common heatsinks.
Features:
Ⅺ
Isolated Mounting
Ⅺ
Glass Passivated Chips
Ⅺ
Metal Baseplate
Ⅺ
Low Thermal Impedance
Applications:
Ⅺ
Battery Supplies
Ⅺ
Bridge Circuits
Ⅺ
AC and DC Motor Control
Ⅺ
Tap Changers
Ⅺ
Lighting Control
Ordering Information:
Select the complete eight digit
module part number you desire
from the table below.
Example: CM4312A2 is a
1200 Volt, 25 Ampere Dual SCR
POW-R-BLOK™ Module.
Voltage
Current Rating
Type
Volts (x100)
Amperes (25)
CM43
12
A2
16
S-13
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
Dual SCR
POW-R-BLOK™ Modules
25 Amperes/1200-1600 Volts
CM4312A2
CM4316A2
Outline Drawing
CM4312A2, CM4316A2
Dual SCR POW-R-BLOK™ Modules
25 Amperes/1200-1600 Volts
J
F
C
K
E
E
G
D
H
A
B
K2 G2
K1
G1
K2
G2
G1
K1
K1
A2
L - DIA.
(2 TYP.)
M - M5 THD
(3 TYP.)
A1K2
K1
A2
.110 TAB
A1K2
