307
Six-IGBT IGBTMOD™
H-Series Module
50 Amperes/600 Volts
CM50TF-12H
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

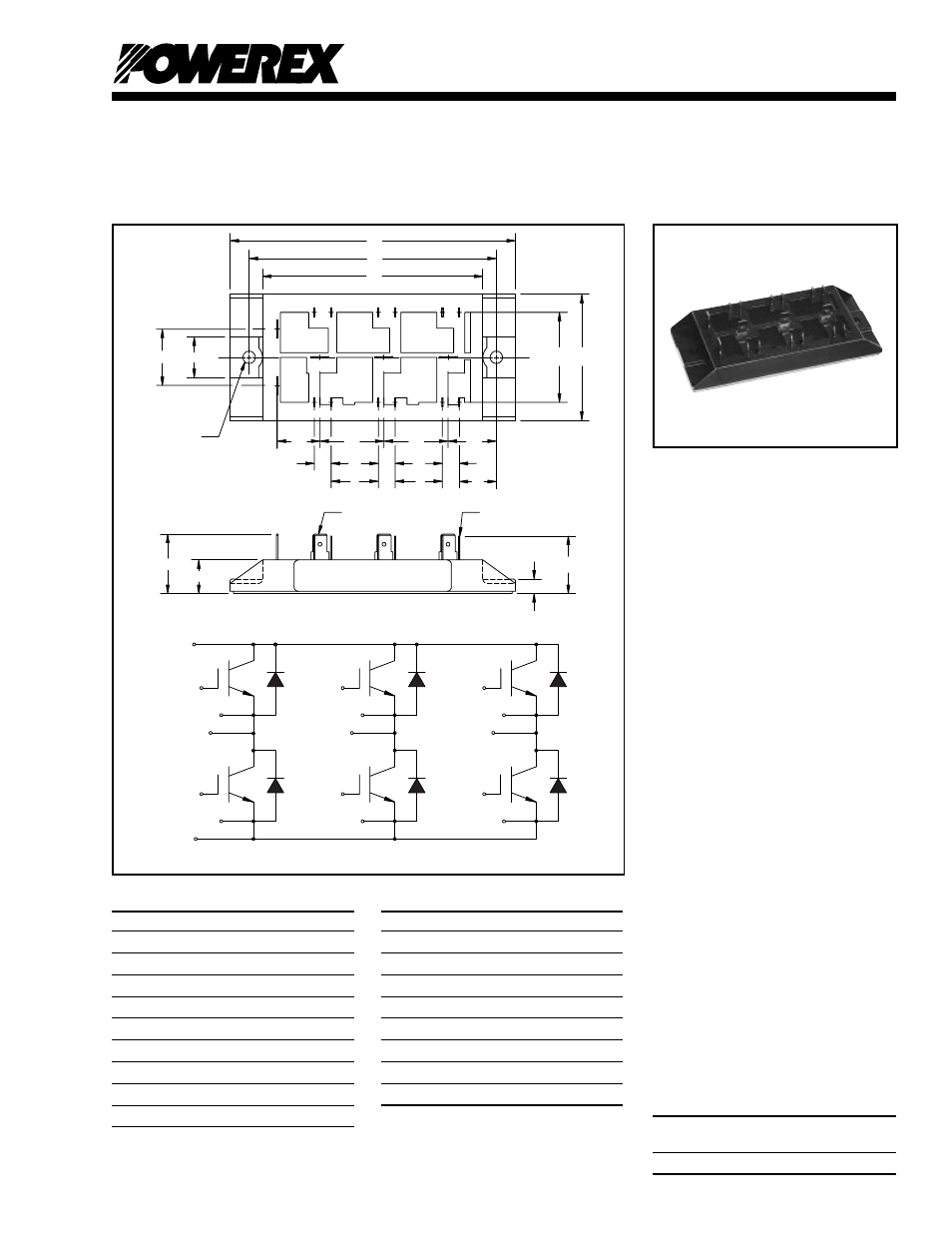

Outline Drawing and Circuit Diagram
Dimensions Inches Millimeters
A 5.00 127.0
B 4.33
±
0.01 110.0
±
0.3
C 3.86 98.0
D 2.20 56.0
E 1.57 40.0
F 1.12 28.5
G 1.04 26.5
H 1.01 25.6
J 0.98 25.0
Dimensions Inches Millimeters
K 0.85 21.5
L 0.83 21.0
M 0.75 19.0
N 0.71 18.0
P 0.69 17.5
Q 0.65 16.5
R 0.30 7.5
S 0.22 Dia. Dia. 5.5
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module consists
of six IGBT Transistors in a three
phase bridge configuration, with
each transistor having a reverse-
connected super-fast recovery
free-wheel diode. All components
and interconnects are isolated
from the heat sinking baseplate,
offering simplified system assem-
bly and thermal management.
Features:
□
Low Drive Power
□ Low V
CE(sat)
□ Discrete Super-Fast Recovery
(70ns) Free-Wheel Diode
□
High Frequency Operation
(20-25kHz)
□ Isolated Baseplate for Easy
Heat Sinking
Applications:
□
AC Motor Control
□
Motion/Servo Control
□
UPS
□ Welding Power Supplies
□
Laser Power Supplies
Ordering Information:
Example: Select the complete part
module number you desire from
the table below -i.e. CM50TF-12H
is a 600V (V
CES
), 50 Ampere Six-
IGBT IGBTMOD™ Power Module.
Type Current Rating V
CES
Amperes Volts (x 50)
CM 50 12
H
P
G
R
.250 TAB .110 TAB
R
L
R
L
B
E J
F F K M
Q
R
D
A
C
N
P
N
u v w
B u P E u P B v P E v P B w P E w P
B u N E u N B v N E v N B w N E w N
S - DIA.
(2 TYP.)
P
* Parentheses indicate module marking
N
(BuP)*
GuP
(BvP)
GvP
(BwP)
GwP
(BuN)
GuN
(BvN)
GvN
(BwN)
GwN
EuP
EuN
u
EvP
v
EvN
EwP
w
EwN
