DO-205AA (DO-8) for 150U(R) Series

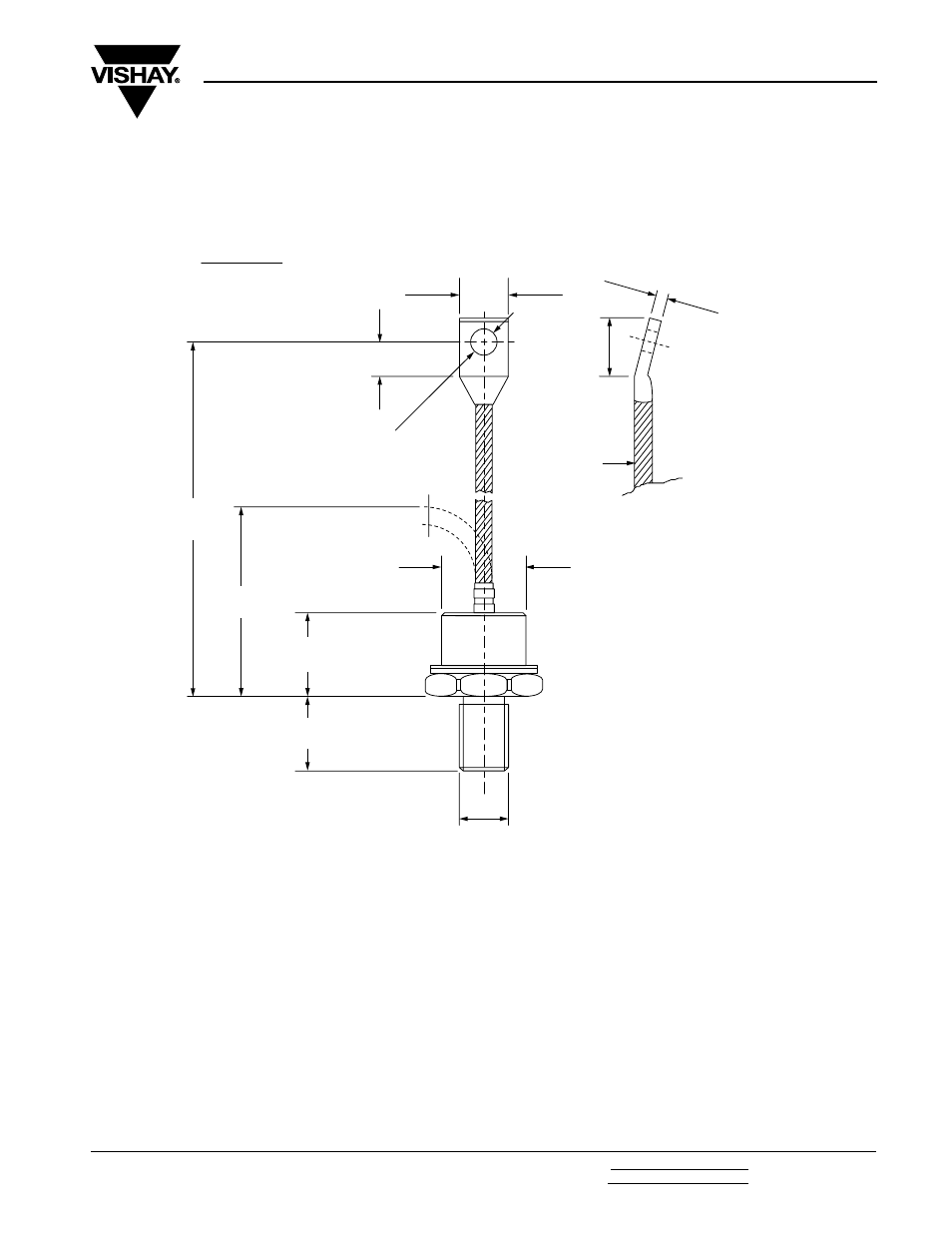

Outline Dimensions
Vishay High Power Products
DIMENSIONS in millimeters (inches)
Note
(1) For stud base 1/2"-20UNF-2A threads; refer to “Ordering Information Table”
16.5 (0.65)
MAX.
6.5 (0.26) MIN.
Ø 8.5 (0.33) NOM.
Glass-metal seal
3/8"-24UNF-2A
(For metric device M12 x 1.75) (1)
C.S. 16 mm 2
(0.015 s.i.)
Ø 23.5 (0.93) MAX.
2.6 (0.10) MAX.
35 (1.38)
MAX.
17 (0.69)
MAX.
24 (0.94)
MAX.
55 (2.16) MIN.
165 (6.49) MIN
170 (6.69) MAX.
