120NQ045PbF
Vishay High Power Products Schottky Rectifier, 120 A

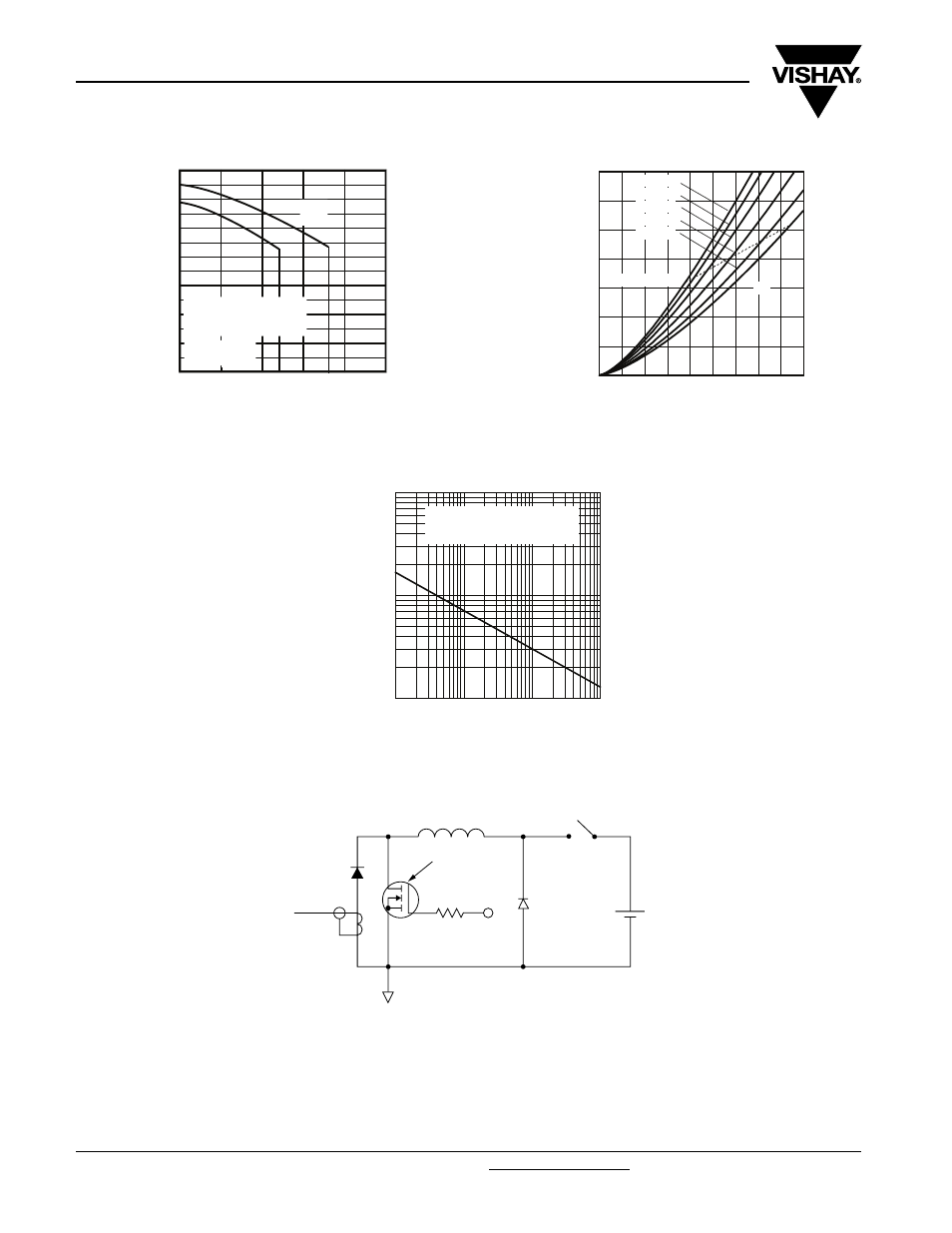

Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current
Fig. 6 - Forward Power Loss Characteristics
Fig. 7 - Maximum Non-Repetitive Surge Current
Fig. 8 - Unclamped Inductive Test Circuit
Note
(9) Formula used: T
C
= T
J
- (Pd + Pd
REV
) x R
thJC
;
Pd = Forward power loss = I
F(AV)
x V
FM
at (I
F(AV)
/D) (see fig. 6);
Pd
REV
= Inverse power loss = V
R1
x I
R
(1 - D); I
R
at V
R1
= Rated V
R
Average Forward Current - I
F (AV)
(A)
Allowable Case Temperature (°C)
0 50 100 150 200 250
20
40
60
80
100
120
140
160
DC
see note (1)
Square wave (D=0.50)
80% rated Vr applied
Average Forward Current - I
F (AV)
(A)
Average Power Loss (Watts)
0 20 40 60 80 100 120 140 160 18
0
20
40
60
80
100
120
140
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
RMS limit
DC
Square Wave Pulse Duration - t
p
(microsec)
Non-Repetitive Surge Current - I
FSM
(A)
1000
10000
100000
10 100 1000 10000
At Any Rated Load Condition
And With Rated V Applied
Following Surge
RRM
Current
monitor
High-speed
switch
D.U.T.
R
g
= 25 Ω
+
Freewheel
diode
V
d
= 25 V
L
IRFP460
40HFL40S02
