Single IGBTMOD™
HVIGBT Module
200 Amperes/6500 Volts
CM200HG-130H
Powerex, Inc., 200 E. Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
1 8/05

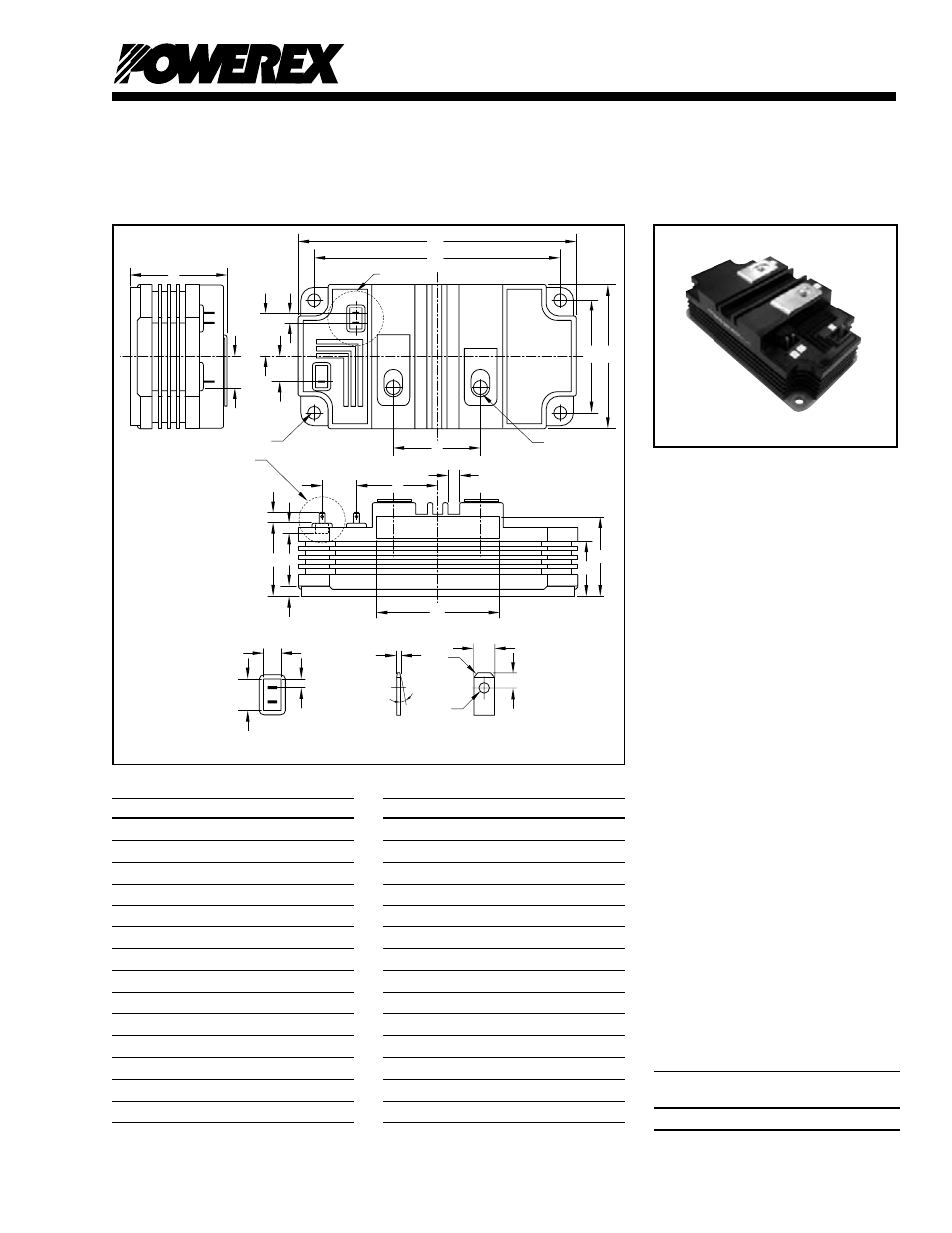

Outline Drawing and Circuit Diagram
D
A
E B
L (2 PLACES)
J
C
K (4 PLACES)
DETAIL “A”
DETAIL “A” DETAIL “B”
DETAIL “B”
H
F
G M
V
X
Y
H
W
Q
S
R T
V
U
N
P
Z
AA
CC
BB BB
DD
Dimensions Inches Millimeters
A 5.51 140.0
B 2.87 73.0
C 1.89+0.04/-0.0 48.0+1.0/-0.0
D 4.88 124.0
E 2.24 57.0
F 0.85 21.6
G 0.51 12.9
H 0.20 5.0
J 1.73 44.0
K M6 Metric M6
L M8 Metric M8
M 0.64 16.2
N 1.59 40.4
P 1.10 28.0
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module consists
of one IGBT Transistor in a
reverse-connected super-fast
recovery free-wheel diode.
All components and interconnects
are isolated from the heat sinking
baseplate, offering simplified
system assembly and thermal
management.
Features:
£ Low Drive Power
£ Low V
CE(sat)
£ Super-Fast Recovery
Free-Wheel Diode
£ Isolated Baseplate for Easy
Heat Sinking
Applications:
£ Traction
£ Medium Voltage Drives
£ High Voltage Power Supplies
Ordering Information:
Example: Select the complete
part module number you desire
from the table below -i.e.
CM200HG-130H is a 6500V
(V
CES
), 200 Ampere Single
IGBTMOD™ Power Module.
Type Current Rating V
CES
Amperes Volts (x 50)
CM 200 130
Dimensions Inches Millimeters
Q 1.44 36.5
R 0.22 5.5
S 0.16 4.0
T 0.68 17.4
U 1.61 41.0
V 0.24 6.0
W 2.44 62.0
X 0.47 12.0
Y 0.14 3.5
Z 0.11 2.8
AA 0.06 1.6
BB 0.02 0.5
CC 0.05 Dia. 1.2 Dia.
DD 10° 10°
