Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
www.pwrx.com
Dual IGBTMOD™
NX-S Series Module
300 Amperes/1200 Volts
CM300DX-24S
1
06/11 Rev. 2
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module
consists of two IGBT Transistors
in a half-bridge configuration with
each transistor having a reverse-
connected super-fast recovery
free-wheel diode. All components
and interconnects are isolated from
the heat sinking baseplate, offering
simplified system assembly and
thermal management.
Features:
£
Low Drive Power
£
Low V
CE(sat)
£
Discrete Super-Fast Recovery
Free-Wheel Diode
£
Isolated Baseplate for Easy
Heat Sinking
Applications:
£
AC Motor Control
£
Motion/Servo Control
£
Photovoltaic/Fuel Cell
Ordering Information:
Example: Select the complete
module number you desire from
the table below -i.e.
CM300DX-24S is a 1200V (V
CES
),
300 Ampere Dual IGBTMOD™
Power Module.
Type
Current Rating
V
CES
Amperes
Volts (x 50)
CM 300 24

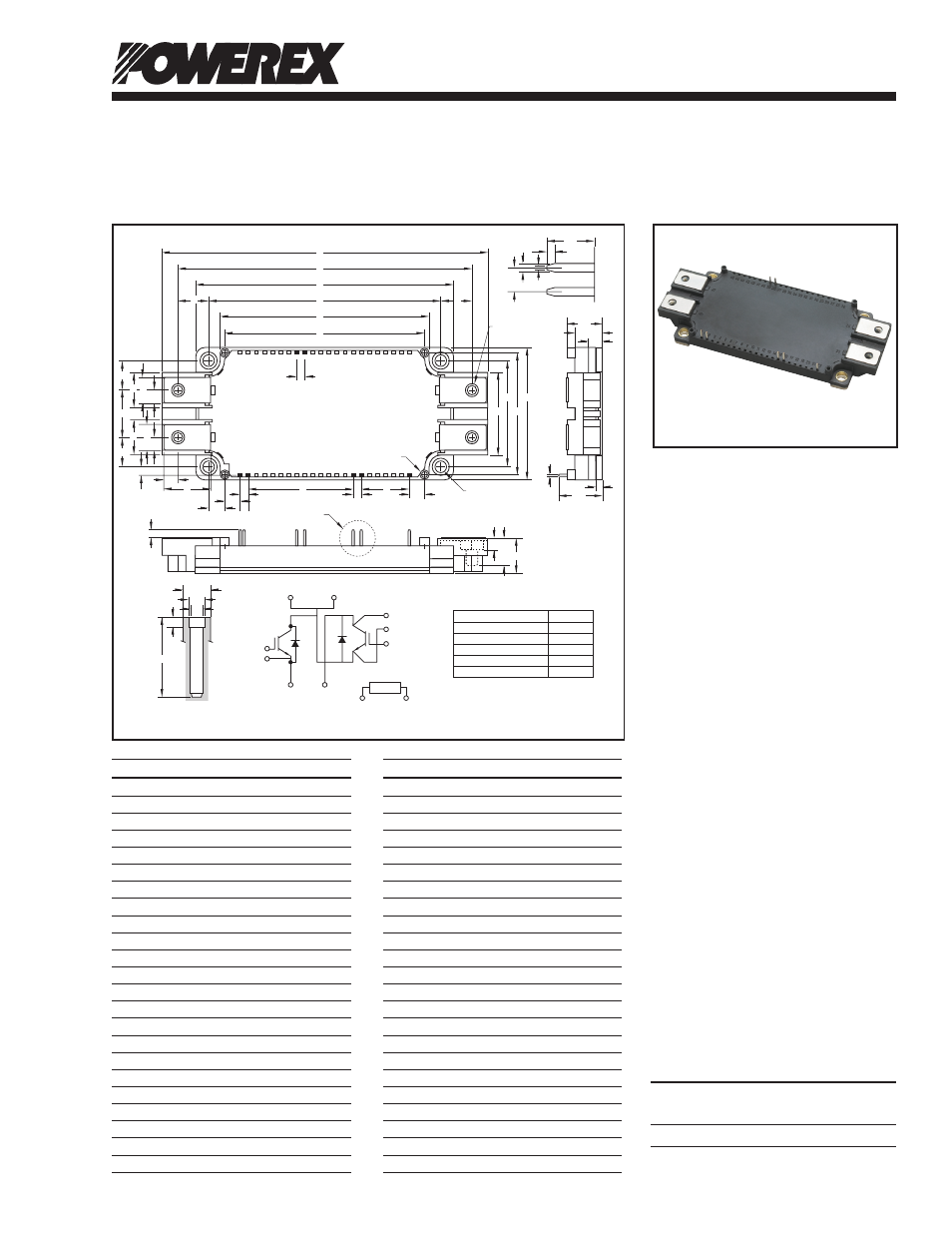

Outline Drawing and Circuit Diagram
G2(38)
E1C2(24) E1C2(23)
Tr2
Di2
Di1
Tr1
E2(39)
E2
(47)
C1
(48)
Th
TH1
(1)
TH2
(2)
G1(15)
C1(22)
E1(16)
NTC
DETAIL "B"
A
D
E
F
J
J
AR
Z
AA
AB
B
AH
AJ
AX
AW
AL
AM
AK
AE
AD
AS
AN
AQ
AF
AG
AT
AU
AV
AP
G
H
P
C
X
T
T
S
S
Q
R
Q
N
V
U
U
W
AC (4 PLACES)
M
K
K
K
L
L
Y
(4 PLACES)
DETAIL "A"
DETAIL "B"
DETAIL "A"
1
2
3 4 5
6
7 8
9 10 11 12 13 14 15 16 17 18 19 20 21 22
23
24
48
47
46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25
Tolerance Otherwise Specified (mm)
The tolerance of size between
terminals is assumed to ±0.4
Division of Dimension Tolerance
0.5 to 3
±0.2
over
3 to 6
±0.3
over
6 to 30
±0.5
over 30 to 120
±0.8
over 120 to 400
±1.2
Dimensions
Inches
Millimeters
A
5.98
152.0
B
2.44
62.0
C
0.67+0.04/-0.02 17.0+1.0/-0.5
D
5.39
137.0
E
4.79
121.7
F
4.33±0.02 110.0±0.5
G
3.89
99.0
H
3.72
94.5
J
0.53
13.5
K
0.15
3.81
L
0.28
7.25
M
0.30
7.75
N
1.95
49.53
P
0.9
22.86
Q
0.55
14.0
R
0.87
22.0
S
0.67
17.0
T
0.48
12.0
U
0.24
6.0
V
0.16
4.2
W
0.37
6.5
X
0.83
21.14
Y
M6
M6
Dimensions
Inches
Millimeters
Z
1.53
39.0
AA
1.97±0.02 50.0±0.5
AB
2.26
57.5
AC
0.22 Dia.
5.5 Dia.
AD
0.67+0.04/-0.02 17.0+1.0/-0.5
AE
0.51
13.0
AF
0.27
7.0
AG
0.03
0.8
AH
0.81
20.5
AJ
0.12
3.0
AK
0.14
3.5
AL
0.26
6.5
AM
0.53
13.5
AN
0.15
3.81
AP
0.05
1.15
AQ
0.025
0.65
AR
0.29
7.4
AS
0.05
1.2
AT
0.17 Dia.
4.3 Dia.
AU
0.102 Dia.
2.6 Dia.
AV
0.088 Dia.
2.25 Dia.
AW
0.12
3.0
AX
0.49
12.5
