80PF(R)...(W) High Voltage Series
Vishay High Power Products Standard Recovery Diodes
Generation 2 DO-5 (Stud Version), 80 A

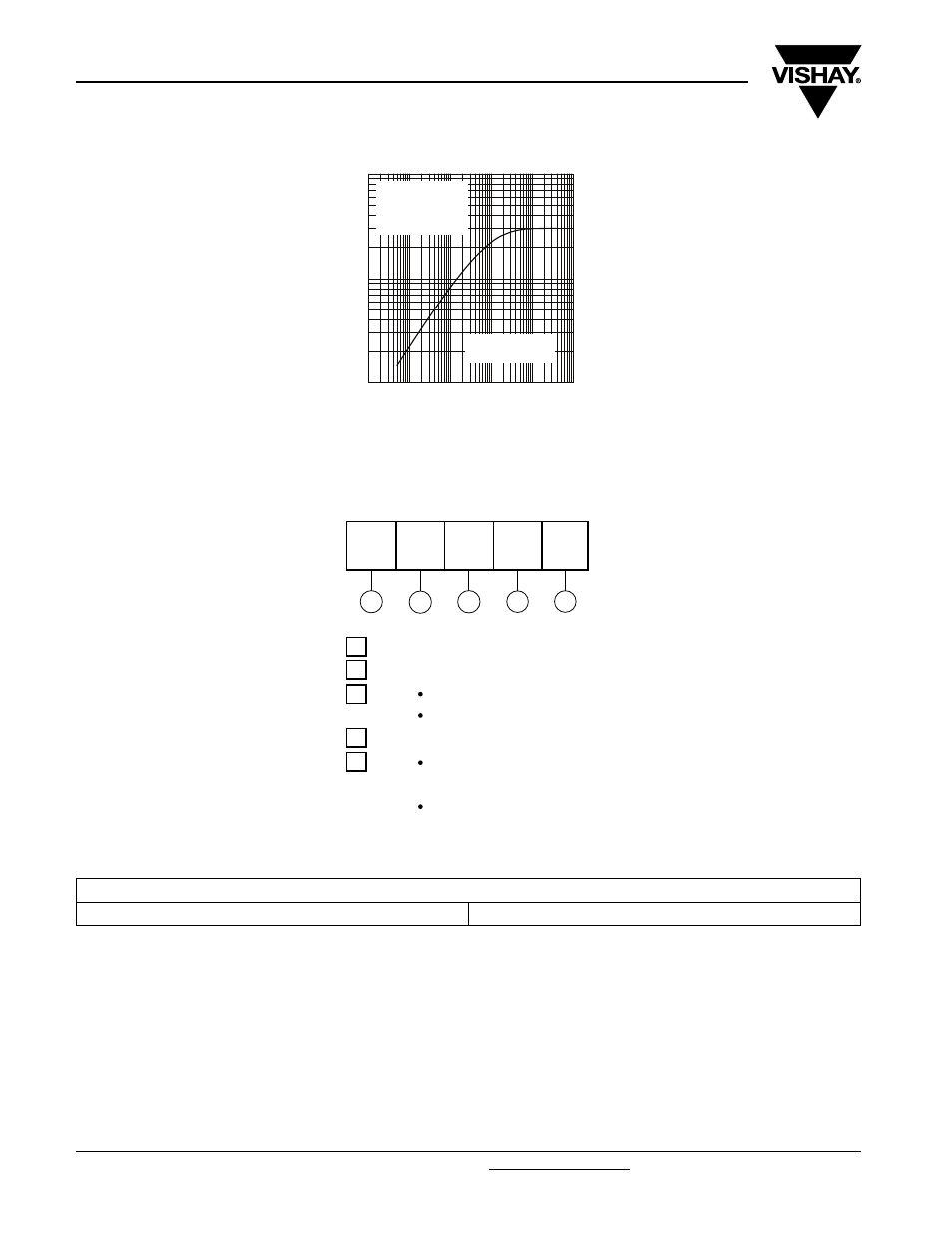

Fig. 5 - Thermal Impedance Z
thJC
Characteristics
ORDERING INFORMATION TABLE
Square Wave Pulse Duration (s)
Transient Thermal Impedance Z
thJC
(K/W)
0.01
0.1
1
0.0001 0.001 0.01 0.1 1 10
Steady State Value
RthJC = 0.3 K/W
(DC Operation)
80PF(R) Series
80PF(R) Series
140 to 160
1 - 80 = Standard device
Device code
5 1 3 2 4
80 PF R 160 W
2 - PF = Plastic package
3 - None = Stud normal polarity (cathode to stud)
R = Stud reverse polarity (anode to stud)
4 - Voltage code x 10 = V
RRM
(see Voltage Ratings table)
5 - None = Standard terminal
(see dimensions for 80PF(R)... - link at the end of datasheet)
W = Wire terminal
(see dimensions for 80PF(R)...W - link at the end of datasheet)
LINKS TO RELATED DOCUMENTS
Dimensions http://www.vishay.com/doc?95345
