C&H Technology CN24_ _500N - Manual (Page 2)

P
Q Q
D
F
K
E
M
J
C
A
L
G
H
H
B
J
J
(2 TYP.)
R - M4 THD
(3 TYP.)
N - DIA.
(3 TYP.)
Dimension Inches Millimeters
A 2.106 53.5
B 1.705±0.008 43.3±0.2
C 1.437 36.5
D 1.299 33
E 0.925 23.5
F 0.866 22
G 0.551 14
H 0.354 9
J 0.315 8
K 0.276 7
L 0.236 R R6
M 0.209 5.3
N 0.209 Dia. Dia. 5.3
P 0.177 4.5
Q 0.138 3.5
R M4 Metric M4
CN—Common Anode Diode Module
CC—Common Cathode Diode Module
Description:
Powerex Super Fast Recovery
Dual Diode Modules are designed
for use in applications requiring
high speed rectification or voltage
clamping in isolated packaging.
The modules are insulated for
easy mounting onto a common
heatsink with other components.
They consist of two diodes
connected in either a common
cathode (CC) or a common
anode (CN) configuration.
Features:
Ⅺ Isolated Mounting
Ⅺ Metal Baseplate
Ⅺ Low Thermal Impendance
Ⅺ trr = 200 ns, Maximum
Applications:
Ⅺ Battery Supplies
Ⅺ Freen Wheeling Diodes
Ⅺ Motor Control Inventers
Ⅺ UPS Inventers
Ordering Information:
Select the complete ten digit
module part number you desire
from the table below.
Example: CC2406500N is a
600 Volt, 50 Ampere, trr = 200ns
Common Cathode Super Fast
Recovery Diode Module.
Current Current
Voltage Rating Recovery
Volts Amperes Time
Type (x100) (50) (200ns)
CC24 03 50 ON
CN24 06
D-43
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Super Fast Recovery
Dual Diode Modules
50 Amperes/300-600 Volts
CC24_ _500N
CN24_ _500N

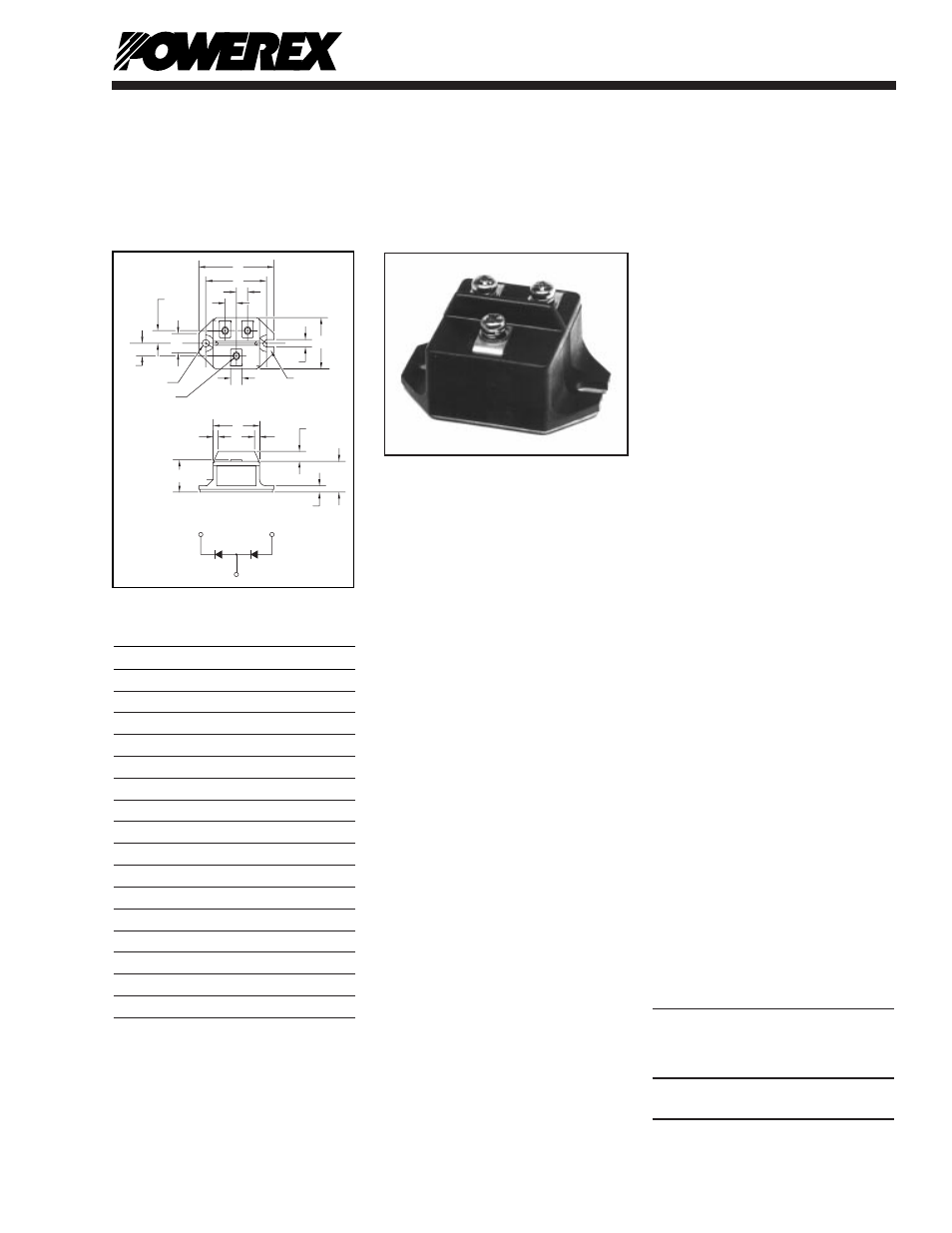

Outline Drawing
CN24_ _500N, CC24_ _500N
Super Fast Recovery
Dual Diode Modules
50 Amperes/300-600 Volts
