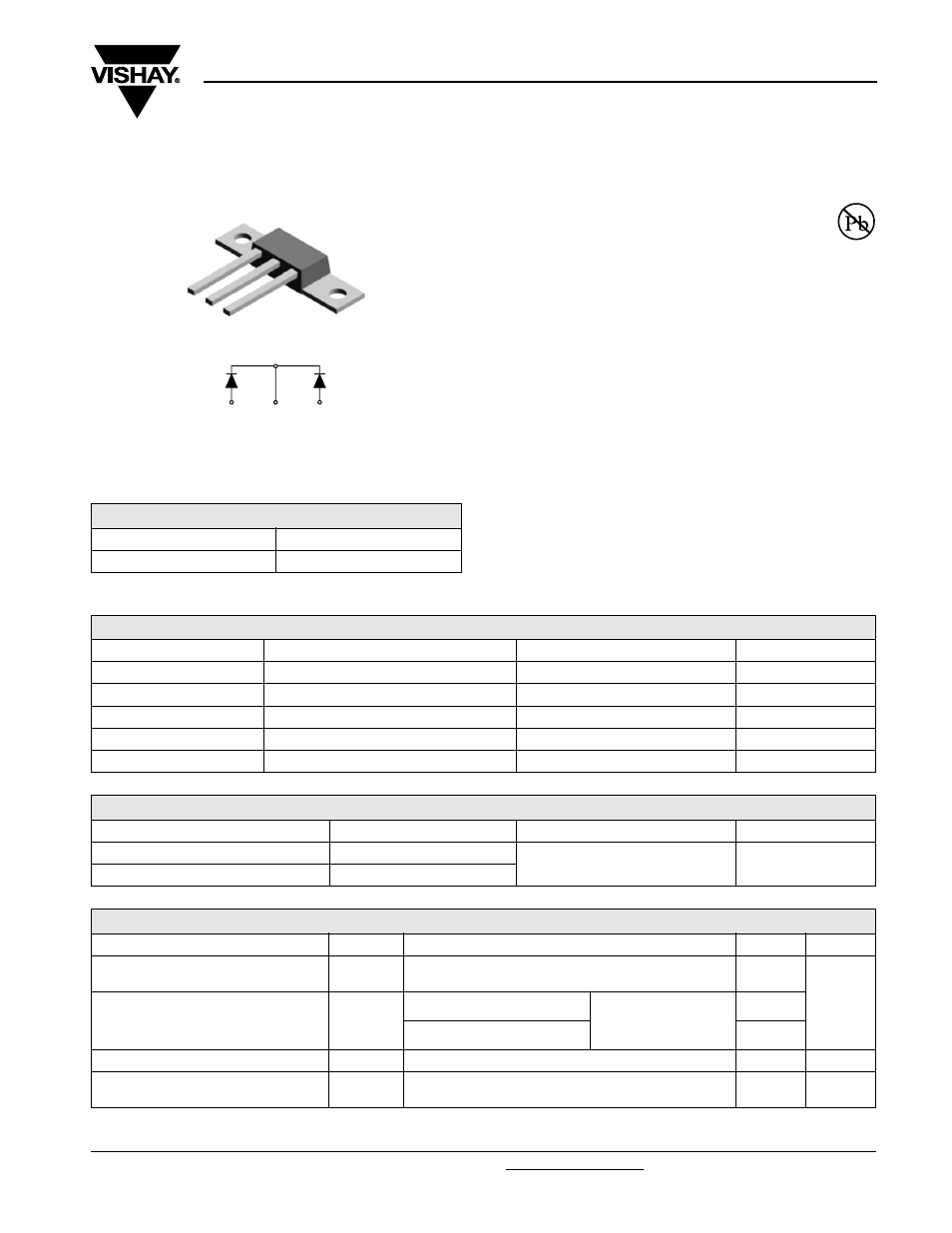

Document Number: 94258 For technical questions, contact: [email protected] www.vishay.com
Revision: 13-Aug-08 1
Schottky Rectifier
New Generation 3 D-61 Package, 2 x 40 A
82CNQ030APbF
Vishay High Power Products
FEATURES
• 150 °C T
J
operation
• Dual center tap module
• Very low forward voltage drop
• High frequency operation
• High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
• Guard ring for enhanced ruggedness and long term
reliability
• New fully transfer-mould low profile, small footprint, high
current package
• Through-hole versions are currently available for use in
lead (Pb)-free applications (“PbF” suffix)
• Designed and qualified for industrial level
DESCRIPTION
The center tap Schottky rectifier module has been optimized
for very low forward voltage drop, with moderate
leakage. The proprietary barrier technology allows for
reliable operation up to 150 °C junction temperature. Typical
applications are in switching power supplies, converters,
freewheeling diodes, and reverse battery protection.
PRODUCT SUMMARY
I
F(AV)
2 x 40 A
V
R
30 V
Base
common
cathode
Common
cathode
Anode
2
Anode
1
1 2 3
D-61-8
Available
RoHS*
COMPLIANT
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL CHARACTERISTICS VALUES UNITS
I
F(AV)
Rectangular waveform 80 A
V
RRM
30 V
I
FSM
t
p
= 5 µs sine 5100 A
V
F
40 Apk, T
J
= 125 °C (per leg) 0.37 V
T
J
Range - 55 to 150 °C
VOLTAGE RATINGS
PARAMETER SYMBOL 82CNQ030APbF UNITS
Maximum DC reverse voltage V
R
30 V
Maximum working peak reverse voltage V
RWM
ABSOLUTE MAXIMUM RATINGS
PARAMETER SYMBOL TEST CONDITIONS VALUES UNITS
Maximum average forward current
See fig. 5
I
F(AV)
50 % duty cycle at T
C
= 119 °C, rectangular waveform 80
A Maximum peak one cycle
non-repetitive surge current per leg
See fig. 7
I
FSM
5 µs sine or 3 µs rect. pulse Following any rated
load condition and with
rated V
RRM
applied
5100
10 ms sine or 6 ms rect. pulse 880
Non-repetitive avalanche energy per leg E
AS
T
J
= 25 °C, I
AS
= 8 A, L = 1.12 mH 36 mJ
Repetitive avalanche current per leg I
AR
Current decaying linearly to zero in 1 µs
Frequency limited by T
J
maximum V
A
= 1.5 x V
R
typical
8 A
* Pb containing terminations are not RoHS compliant, exemptions may apply
