1
Dual IGBTMOD™
F-Series Module
400 Amperes/1200 Volts
CM400DU-24F
Powerex, Inc., 200 E. Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
1
Description:
Powerex IGBTMOD™ Modules are
designed for use in switching
applications. Each module consists
of two IGBT Transistors in a half-
bridge configuration with each
transistor having a reverse-
connected super-fast recovery
free-wheel diode. All components
and interconnects are isolated
from the heat sinking baseplate,
offering simplified system
assembly and thermal
management.
Features:
□
Low Drive Power
□
Low V
CE(sat)
□
Discrete Super-Fast Recovery
Free-Wheel Diode
□
Isolated Baseplate for Easy
Heat Sinking
Applications:
□
AC Motor Control
□
Motion/Servo Control
□
UPS
□
Welding Power Supplies
□
Laser Power Supplies
Ordering Information:
Example: Select the complete
module number you desire from
the table - i.e. CM400DU-24F is a
1200V (V
CES
), 400 Ampere Dual
IGBTMOD™ Power Module.
Current Rating
V
CES
Type
Amperes
Volts (x 50)
CM
400
24
T - (4 TYP.)
C2E1
E2
RTC
G1
C1
E1
E2
G2
CL
L
C
W -
(4 PLACES)
LABEL
A
F
G
H
J
K
L
M
N
P
Q
P
R
U
V
D
X
Y
Z
AA
TC MEASURED POINT
B
C E
S - (3 PLACES)
RTC
C2E1
E2
C1
E1
G1
E2
G2
Dimensions
Inches
Millimeters
A
5.51
140.0
B
5.12
130.0
C
5.12
130.0
D
1.38 +0/-0.02
35.0 +0/-0.5
E
4.33
±
0.01
110.0
±
0.25
F
4.33
±
0.01
110.0
±
0.25
G
0.39
10.0
H
0.45
11.5
J
0.54
13.8
K
1.72
43.8
L
1.42
36.0
M
0.39
10.0
N
0.80
20.4
Dimensions
Inches
Millimeters
P
0.57
14.5
Q
1.57
40.0
R
2.56
65.0
S
M8
M8
T
0.32
8.0
U
0.32
8.0
V
0.97 +0.04/-0.02 24.5 +1.0/-0.5
W
M4
M4
X
0.59
15.0
Y
0.35
9.0
Z
1.02
26.0
AA
0.79
20.0

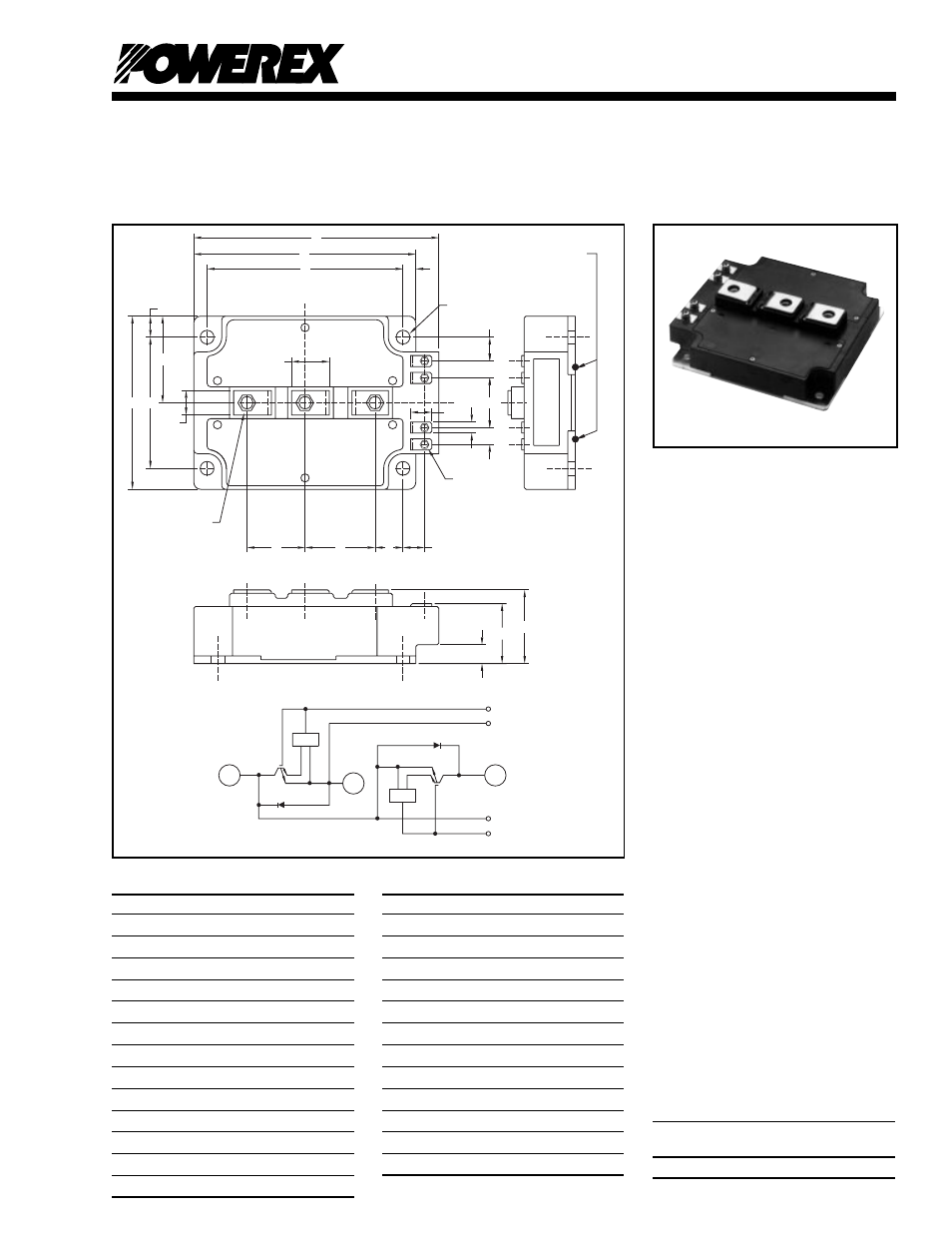

Outline Drawing and Circuit Diagram
