Aluminum Capacitors
Power High Ripple Current Snap-In
198 PHR-SI
Vishay BCcomponents
FEATURES
• Polarized aluminum electrolytic capacitors,
non-solid electrolyte
• Large types, miniaturized dimensions,
cylindrical aluminum case, insulated with a blue
sleeve
• Very high ripple current capability
• Keyed polarity version available
• High reliability
APPLICATIONS
• Motor control and industrial systems
• Smoothing and filtering
• Standard and switched mode power supplies
• Energy storage in pulse systems
MARKING
The capacitors are marked (where possible) with the
following information:
• Rated capacitance (in µF)
• Tolerance code on rated capacitance, code letter in
accordance with IEC 60062 (M for ± 20 %)
• Rated voltage (in V)
• Date code (YYMM)
• Name of manufacturer
• Code for factory of origin
• ‘-’ sign to identify the negative terminal, visible from the top
and side of the capacitor
• Code number
• Climatic category in accordance with IEC 60068
QUICK REFERENCE DATA
DESCRIPTION VALUE
Nominal case size (Ø D x L in mm) 22 x 25 to 35 x 60
Rated capacitance range
(E6/E12 series), C
R
56 to 680 µF
Tolerance on C
R
± 20 %
Rated voltage range, U
R
400 and 450 V
Category temperature range - 25 to + 85 °C
Endurance test at 85
°C
7000 hours
Useful life at 85 °C 15000 hours
Shelf life at 0 V, 85
°C
1000 hours
Based on sectional specification IEC 60384-4/EN130300
Climatic category IEC 60068 25/085/56

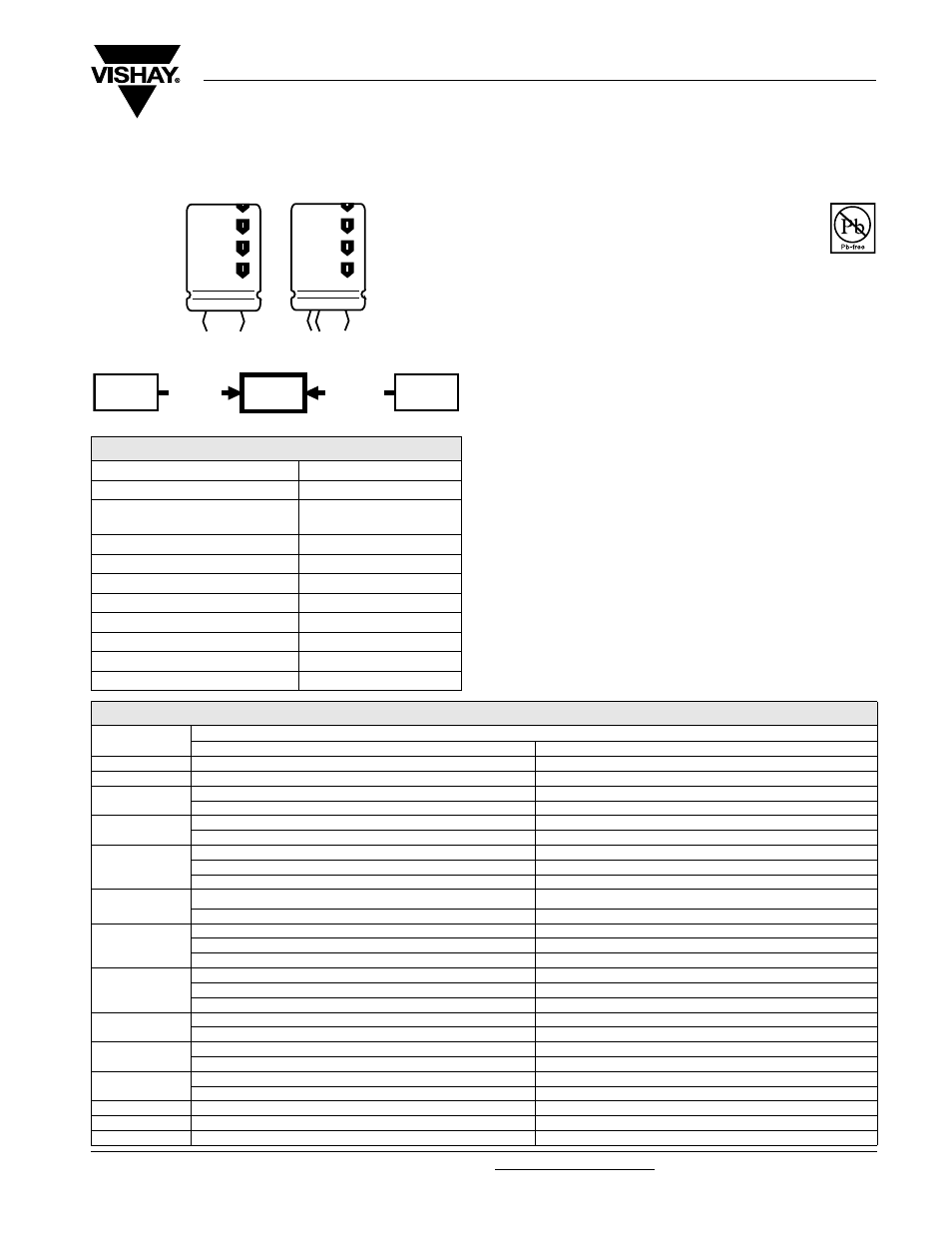

Fig. 1 Component outlines
198
PHR-SI
057
PSM-SI
157
PUM-SI
smaller
dimensions
longer life
higher ripple
RoHS
COMPLIANT
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES (Ø D x L in mm)
C
R
(µF)
U
R
(V)
400 450
56 22 x 25 22 x 25
68 22 x 25 22 x 30
82
- 22 x 30
- 25 x 25
100
22 x 30 22 x 35
- 25 x 30
120
22 x 35 22 x 40
25 x 30 25 x 30
- 30 x 25
150
22 x 40 25 x 40
25 x 35 30 x 30
180
25 x 40 25 x 40
30 x 30 30 x 35
35 x 25 35 x 25
220
25 x 45 25 x 50
30 x 35 30 x 40
35 x 30 35 x 30
270
30 x 40 30 x 45
35 x 30 35 x 35
330
30 x 45 30 x 50
35 x 35 35 x 40
390
30 x 50 35 x 45
35 x 40 -
470 35 x 45 35 x 50
560 35 x 50 35 x 60
680 35 x 60 35 x 60
