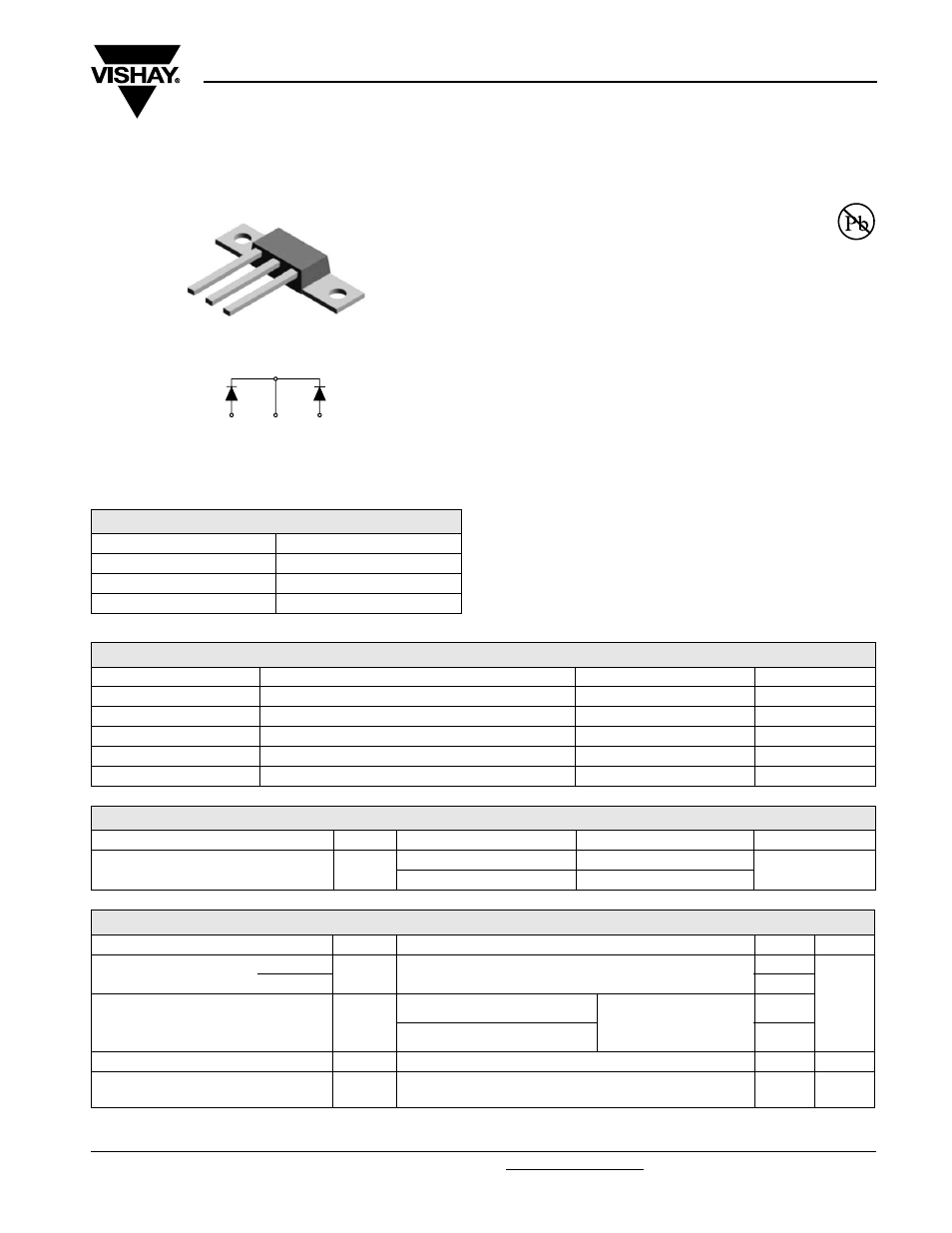

Schottky Rectifier
New Generation 3 D-61 Package, 2 x 40 A
87CNQ020APbF
Vishay High Power Products
FEATURES
• 150 °C T
J
operation
• Center tap module
• Optimized for 3.3 V application
• Ultra low forward voltage drop
• High frequency operation
• Guard ring for enhanced ruggedness and long term
reliability
• High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
• New fully transfer-mold low profile, small footprint, high
current package
• Through-hole versions are currently available for use in
lead (Pb)-free applications (“PbF” suffix)
• Lead (Pb)-free
• Designed and qualified for industrial level
DESCRIPTION
The center tap Schottky rectifier module has been optimized
for ultra low forward voltage drop specifically for 3.3 V output
power supplies. The proprietary barrier technology allows for
reliable operation up to 150 °C junction temperature. Typical
applications are in parallel switching power supplies,
converters, reverse battery protection, and redundant power
subsystems. PRODUCT SUMMARY
I
F(AV)
2 x 40 A
V
R
at 125 °C 20 V
V
R
at 150 °C 10 V
I
RM
550 mA at 125 °C
Base
common
cathode
Common
cathode
Anode
2
Anode
1
1 2 3
D-61-8
Available
RoHS*
COMPLIANT
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL CHARACTERISTICS VALUES UNITS
I
F(AV)
Rectangular waveform 80 A
V
RRM
20 V
I
FSM
t
p
= 5 µs sine 6000 A
V
F
40 Apk, T
J
= 125 °C (per leg) 0.32 V
T
J
Range - 55 to 150 °C
VOLTAGE RATINGS
PARAMETER SYMBOL TEST CONDITIONS 87CNQ020APbF UNITS
Maximum DC reverse voltage V
R
125 °C 20
V
150 °C 10
ABSOLUTE MAXIMUM RATINGS
PARAMETER SYMBOL TEST CONDITIONS VALUES UNITS
Maximum average
forward current per leg
I
F(AV)
50 % duty cycle at T
C
= 135 °C, rectangular waveform
40
A
per device 80
Maximum peak one cycle
non-repetitive surge current per leg
I
FSM
5 µs sine or 3 µs rect. pulse Following any rated load
condition and with rated
V
RRM
applied
6000
10 ms sine or 6 ms rect. pulse 1100
Non-repetitive avalanche energy per leg E
AS
T
J
= 25 °C, I
AS
= 8 A, L = 1.12 mH 36 mJ
Repetitive avalanche current per leg I
AR
Current decaying linearly to zero in 1 µs
Frequency limited by T
J
maximum V
A
= 1.5 x V
R
typical
8 A
* Pb containing terminations are not RoHS compliant, exemptions may apply
