Six IGBTMOD™
U-Series Module
100 Amperes/600 Volts
CM100TU-12H
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

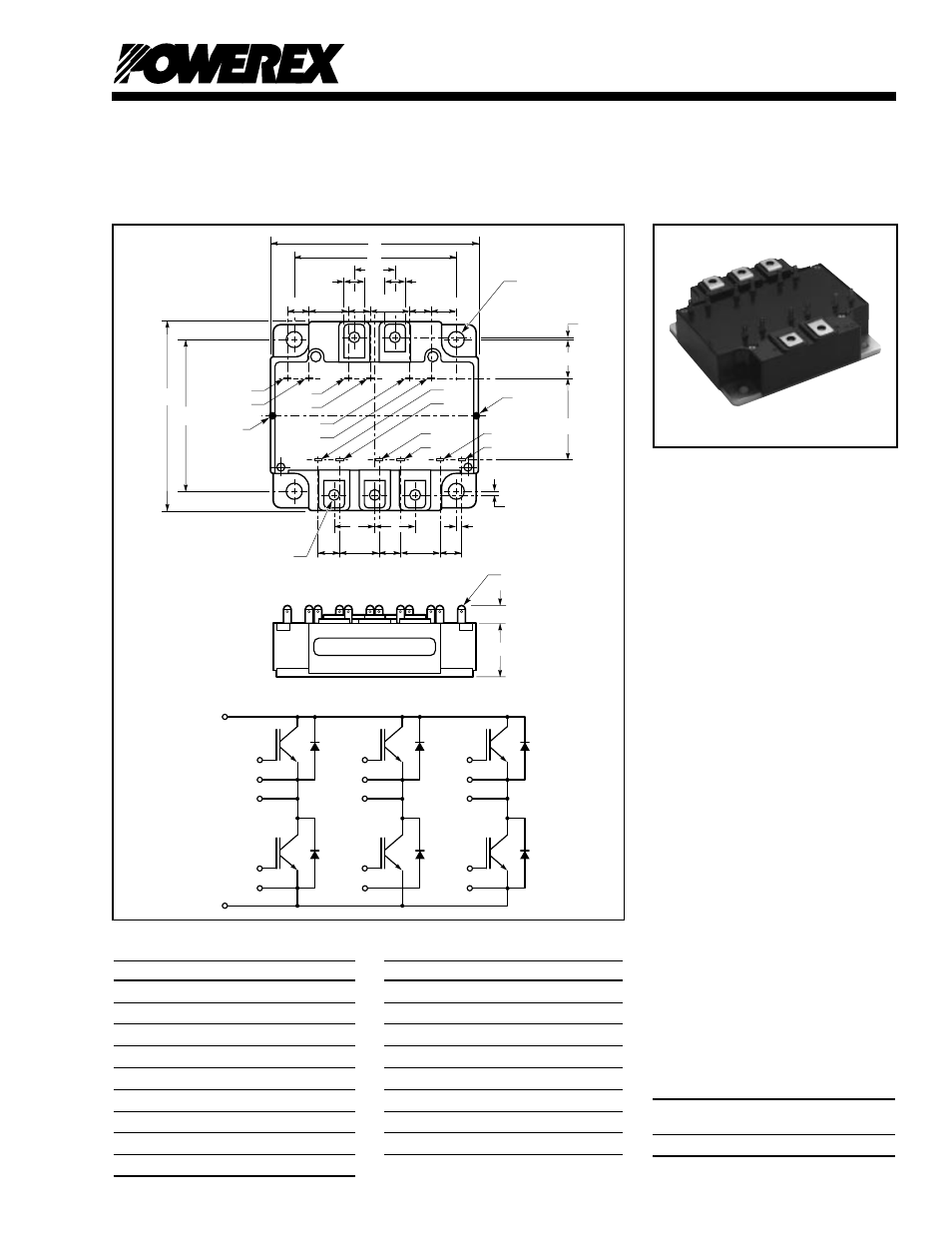

Outline Drawing and Circuit Diagram
81
Dimensions Inches Millimeters
A 4.02 102.0
B 3.15
±
0.01 80.0
±
0.25
C 3.58 91.0
D 2.91
±
0.01 74.0
±
0.25
E 0.43 11.0
F 0.79 20.0
G 0.39 10.0
H 0.75 19.1
J 0.79 20.0
Dimensions Inches Millimeters
K 0.05 1.25
L 0.74 18.7
M 1.55 39.3
N 0.12 3.05
P 0.32 8.1
Q 1.02 26.0
R 0.47 11.85
S 0.22 Dia. 5.5 Dia.
A
S 4 - Mounting
Holes
D
C
B
Q
P
u v w
GuN
EuN
GvN
EvN GwN
EwN
GuP
EuP
GwP
EwP
GvP
EvP
E
G
F
G
E E R H H
E E E
K
0.110 - 0.5 Tab
N
H H
J J
5 - M4 NUTS
M
L
K
GuP
EuP
GuN
EuN
U
P
N
GvP
EvP
GvN
EvN
V
GwP
EwP
GwN
EwN
W
T
C
Measured
Point
T
C
Measured
Point
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module consists
of six IGBT Transistors in a three
phase bridge configuration, with
each transistor having a reverse-
connected super-fast recovery
free-wheel diode. All components
and interconnects are isolated
from the heat sinking baseplate,
offering simplified system assembly
and thermal management.
Features:
□
Low Drive Power
□
Low V
CE(sat)
□ Discrete Super-Fast Recovery
Free-Wheel Diode
□
Isolated Baseplate for Easy
Heat Sinking
Applications:
□ AC Motor Control
□
Motion/Servo Control
□
UPS
□ Welding Power Supplies
□ Laser Power Supplies
Ordering Information:
Example: Select the complete
module number you desire from
the table - i.e. CM100TU-12H is a
600V (V
CES
), 100 Ampere Six-
IGBT IGBTMOD™ Power Module.
Current Rating V
CES
Type Amperes Volts (x 50)
CM 100 12
