Document Number: 94125 For technical questions, contact: [email protected] www.vishay.com
Revision: 25-Jun-07 1

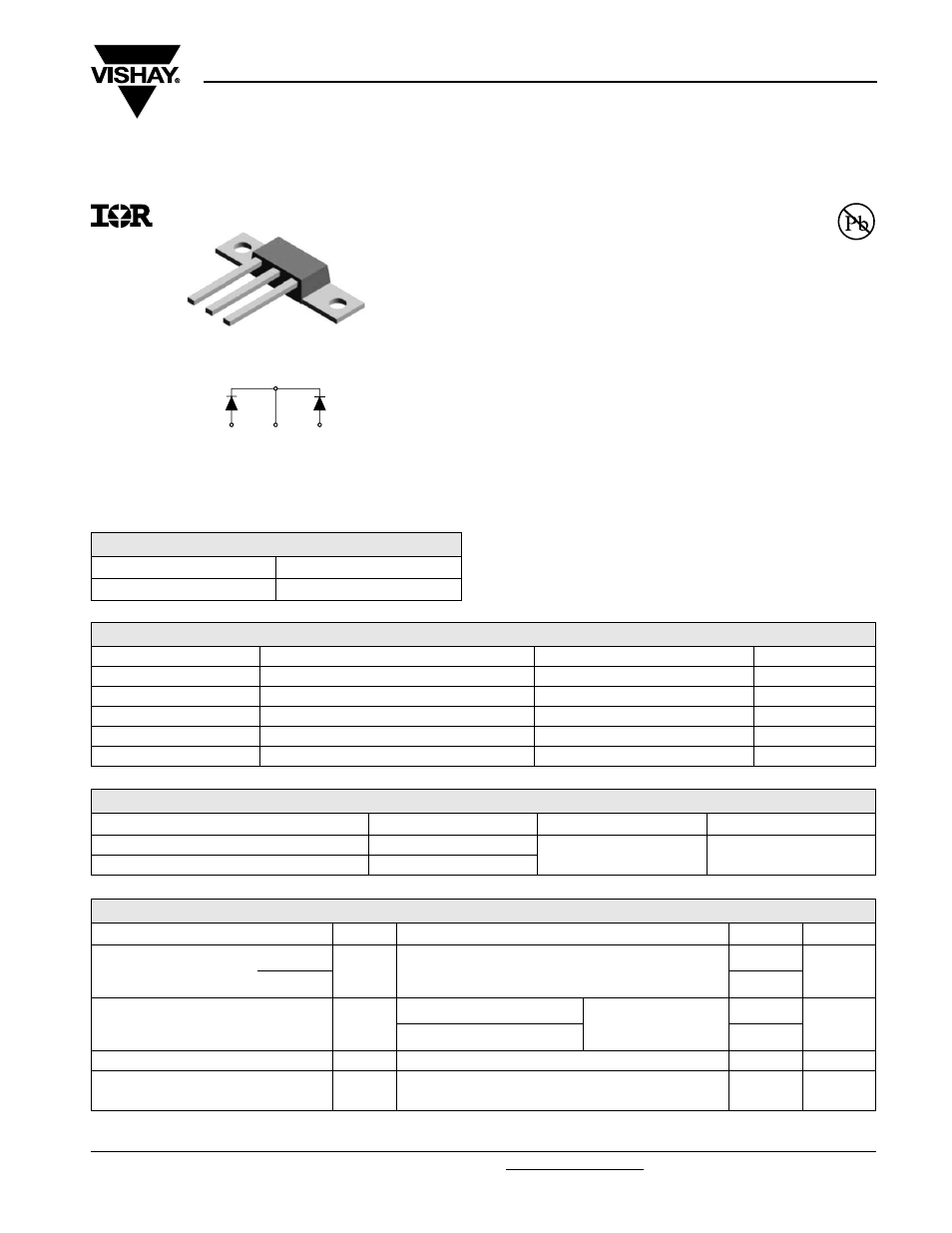

Schottky Rectifier
New Generation 3 D-61 Package, 110 A
113CNQ100APbF
Vishay High Power Products
FEATURES
• 175 °C T
J
operation
• Center tap module
• Low forward voltage drop
• High frequency operation
• High purity, high temperature epoxy
encapsulation for enhanced mechanical strength and
moisture resistance
• Guard ring for enhanced ruggedness and long term
reliability
• New fully transfer-mold low profile, small footprint, high
current package
• Through-hole versions are currently available for use in
lead (Pb)-free applications (“PbF” suffix)
• Designed and qualified for industrial level and
lead (Pb)-free
DESCRIPTION
The center tap Schottky rectifier module series has been
optimized for low reverse leakage at high temperature. The
proprietary barrier technology allows for reliable operation up
to 175 °C junction temperature. Typical applications are in
switching power supplies, converters, freewheeling diodes,
and reverse battery protection.
PRODUCT SUMMARY
I
F(AV)
110 A
V
R
100 V
®
Base
common
cathode
Common
cathode
Anode
2
Anode
1
1 2 3
D-61-8
Available
RoHS*
COMPLIANT
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL CHARACTERISTICS VALUES UNITS
I
F(AV)
Rectangular waveform 110 A
V
RRM
100 V
I
FSM
t
p
= 5 µs sine 7000 A
V
F
55 Apk, T
J
= 125 °C (per leg) 0.67 V
T
J
Range - 55 to 175 °C
VOLTAGE RATINGS
PARAMETER SYMBOL 113CNQ100APbF UNITS
Maximum DC reverse voltage V
R
100 V
Maximum working peak reverse voltage V
RWM
ABSOLUTE MAXIMUM RATINGS
PARAMETER SYMBOL TEST CONDITIONS VALUES UNITS
Maximum average
forward current
See fig. 5
per leg
I
F(AV)
50 % duty cycle at T
C
= 150 °C, rectangular waveform
55
A
per device 110
Maximum peak one cycle
non-repetitive surge current per leg
See fig. 7
I
FSM
5 µs sine or 3 µs rect. pulse
Following any rated load
condition and with rated
V
RRM
applied
7000
A
10 ms sine or 6 ms rect. pulse 720
Non-repetitive avalanche energy per leg E
AS
T
J
= 25 °C, I
AS
= 1 A, L = 30 mH 15 mJ
Repetitive avalanche current per leg I
AR
Current decaying linearly to zero in 1 µs
Frequency limited by T
J
maximum V
A
= 1.5 x V
R
typical
1 A
* Pb containing terminations are not RoHS compliant, exemptions may apply
