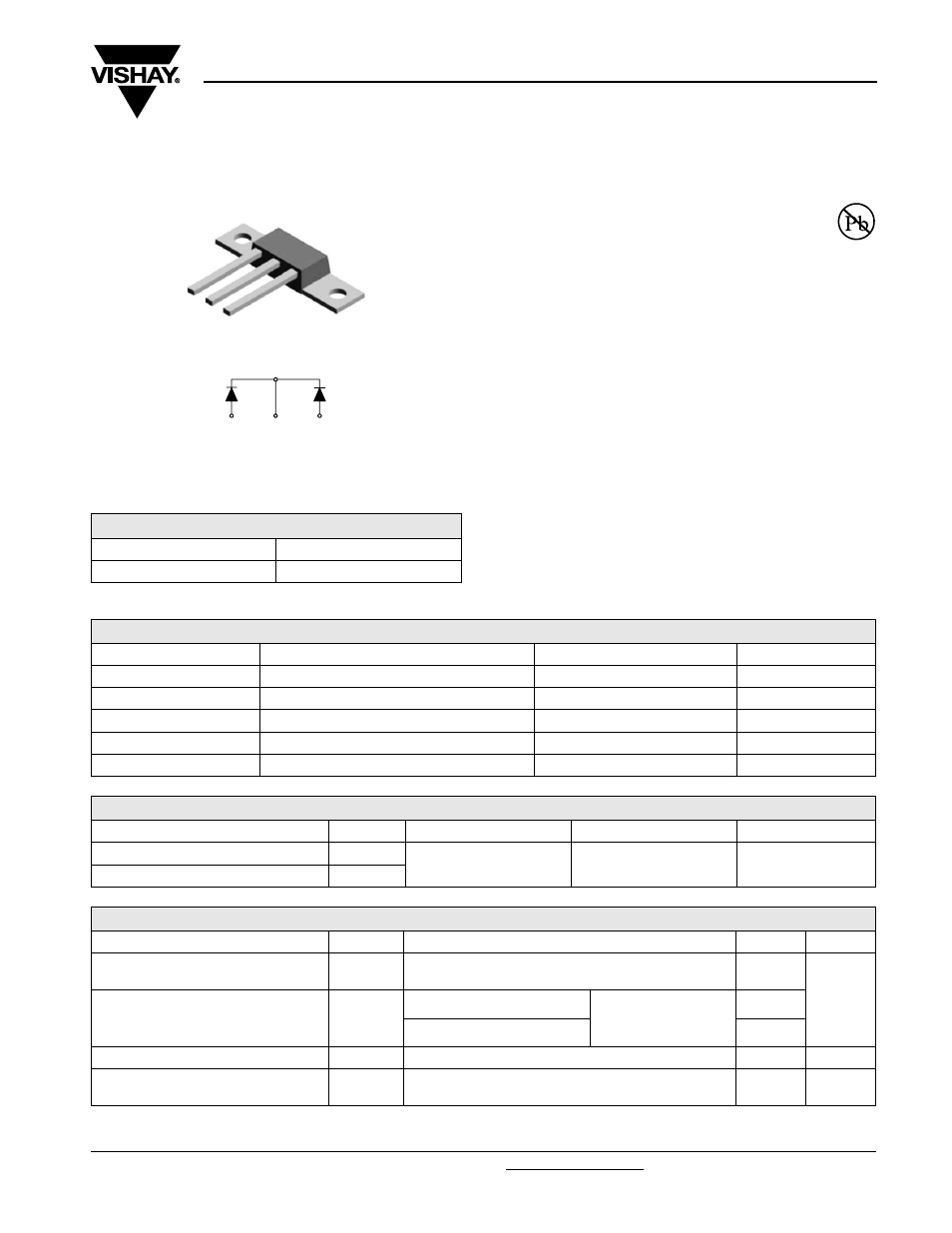

Schottky Rectifier
New Generation 3 D-61 Package, 2 x 40 A
83CNQ...APbF
Vishay High Power Products
FEATURES
• 175 °C T
J
operation
• Center tap module
• Low forward voltage drop
• High frequency operation
• High purity, high temperature epoxy
encapsulation for enhanced mechanical strength and
moisture resistance
• Guard ring for enhanced ruggedness and long term
reliability
• New fully transfer-mold low profile, small footprint, high
current package
• Through-hole versions are currently available for use in
lead (Pb)-free applications (“PbF” suffix)
• Lead (Pb)-free
• Designed and qualified for industrial level
DESCRIPTION
The center tap Schottky rectifier module series has been
optimized for low reverse leakage at high temperature. The
proprietary barrier technology allows for reliable operation up
to 175 °C junction temperature. Typical applications are in
switching power supplies, converters, freewheeling diodes,
and reverse battery protection.
PRODUCT SUMMARY
I
F(AV)
2 x 40 A
V
R
80/100 V
Base
common
cathode
Common
cathode
Anode
2
Anode
1
1 2 3
D-61-8
Available
RoHS*
COMPLIANT
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL CHARACTERISTICS VALUES UNITS
I
F(AV)
Rectangular waveform 80 A
V
RRM
Range 80/100 V
I
FSM
t
p
= 5 µs sine 7000 A
V
F
40 Apk, T
J
= 125 °C (per leg) 0.67 V
T
J
Range - 55 to 175 °C
VOLTAGE RATINGS
PARAMETER SYMBOL 83CNQ080APbF 83CNQ100APbF UNITS
Maximum DC reverse voltage V
R
80 100 V
Maximum working peak reverse voltage V
RWM
ABSOLUTE MAXIMUM RATINGS
PARAMETER SYMBOL TEST CONDITIONS VALUES UNITS
Maximum average forward current
See fig. 5
I
F(AV)
50 % duty cycle at T
C
= 132 °C, rectangular waveform 80
A Maximum peak one cycle
non-repetitive surge current per leg
See fig. 7
I
FSM
5 µs sine or 3 µs rect. pulse Following any rated
load condition and with
rated V
RRM
applied
7000
10 ms sine or 6 ms rect. pulse 720
Non-repetitive avalanche energy per leg E
AS
T
J
= 25 °C, I
AS
= 1 A, L = 30 mH 15 mJ
Repetitive avalanche current per leg I
AR
Current decaying linearly to zero in 1 µs
Frequency limited by T
J
maximum V
A
= 1.5 x V
R
typical
1 A
* Pb containing terminations are not RoHS compliant, exemptions may apply
