Dual IGBTMOD™
NF-Series Module
400 Amperes/600 Volts
CM400DY-12NF
Powerex, Inc., 200 E. Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

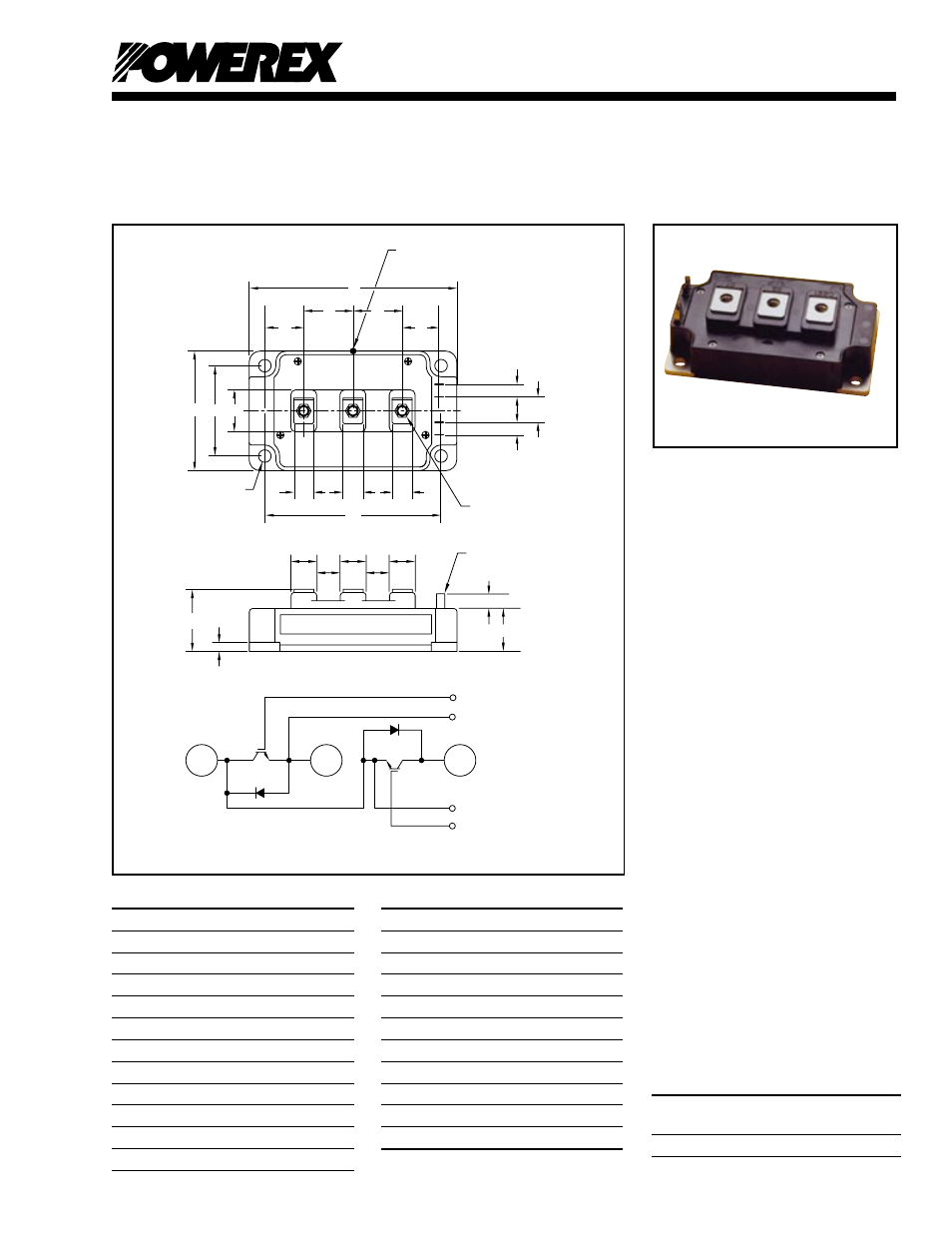

Outline Drawing and Circuit Diagram
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module consists
of two IGBT Transistors in a half-
bridge configuration with each tran-
sistor having a reverse-connected
super-fast recovery free-wheel
diode. All components and inter-
connects are isolated from the heat
sinking baseplate, offering simpli-
fied system assembly and thermal
management.
Features:
£ Low Drive Power
£ Low V
CE(sat)
£ Discrete Super-Fast Recovery
Free-Wheel Diode
£ Isolated Baseplate for Easy
Heat Sinking
Applications:
£ AC Motor Control
£ UPS
£ Battery Powered Supplies
Ordering Information:
Example: Select the complete
part module number you desire
from the table below -i.e.
CM400DY-12NF is a 600V (V
CES
),
400 Ampere Dual IGBTMOD™
Power Module.
Type Current Rating V
CES
Amperes Volts (x 50)
CM 400 12
Dimensions Inches Millimeters
A 4.25 108.0
B 2.44 62.0
C 1.18+0.04/-0.02 30.0+1.0/-0.5
D 3.66±0.01 93.0±0.25
E 1.89±0.01 48.0±0.25
F 0.98 25.0
G 0.24 6.0
H 0.59 15.0
K 0.55 14.0
L 0.26 Dia. Dia. 6.5
M M6 Metric M6
Dimensions Inches Millimeters
N 1.18 30.0
P 0.71 18.0
Q 0.28 7.0
R 0.87 22.2
S 0.33 8.5
T 0.02 0.5
U 0.110 2.8
V 0.16 4.0
W 0.85 21.5
X 0.94 24.0
A
X W
F F
B N
L
(4 PLACES)
D
M NUTS
(3 PLACES)
G
G
H
K K K
P P P T THICK
U WIDTH
Q Q
V C
S
R
G2
E2
E1
G1
C1 E2 C2E1
TC MEASURED POINT
(BASEPLATE)
LABEL
C2E1 E2 C1
G2
E2
E1
G1
E
