Dual IGBTMOD™
U-Series Module
400 Amperes/1200 Volts
CM400DU-24H
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

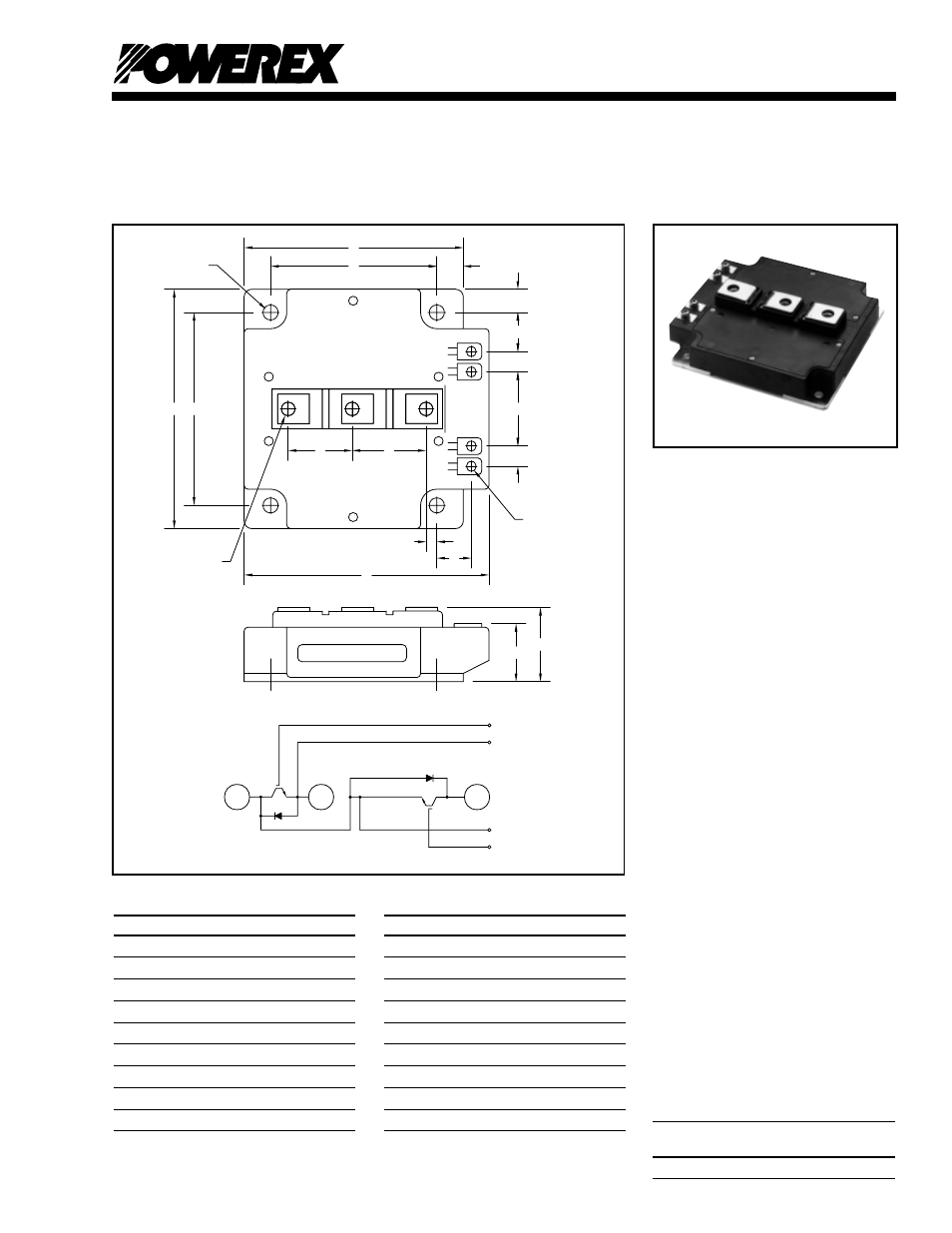

Outline Drawing and Circuit Diagram
1
Dimensions
Inches
Millimeters
A
5.12
130.0
B
5.12
130.0
C
1.38
35.0
D
0.96
24.5
E
4.33
110.0
F
0.39
10.0
G
0.39
10.0
H
0.81
20.5
J
0.53
14.5
Dimensions
Inches
Millimeters
K
1.65
42.0
L
1.42
36.0
M
1.72
43.8
N
0.54
13.8
P
0.45
11.5
Q
5.51
140.0
R 0.26 Dia .6.5 Dia.
S
M8
M8
T
M4
M4
Description:
Powerex IGBTMOD™ Modules are
designed for use in switching
applications. Each module consists
of two IGBT Transistors in a half-
bridge configuration with each
transistor having a reverse-
connected super-fast recovery
free-wheel
diode. All components and
interconnects are isolated from the
heat sinking baseplate, offering
simplified system assembly and
thermal management.
Features:
□
Low Drive Power
□
Low V
CE(sat)
□
Discrete Super-Fast Recovery
Free-Wheel Diode
□
Isolated Baseplate for Easy
Heat Sinking
Applications:
□
AC Motor Control
□
Motion/Servo Control
□
UPS
□
Welding Power Supplies
□
Laser Power Supplies
Ordering Information:
Example: Select the complete
module number you desire from
the table - i.e. CM400DU-24H is a
1200V (V
CES
), 400 Ampere Dual
IGBTMOD™ Power Module.
Current Rating
V
CES
Type
Amperes
Volts (x 50)
CM
400
24
C2E1
E2
G1
C1
E1
E2
G2
C2E1
E2
C1
G2
E2
E1
G1
A
B
E
E
J
K
J
F
Q
D
C
N
P
M
L
H
G
"R" (4 PLACES)
"S" (3 PLACES)
"T" (4 PLACES)
