219
Single IGBTMOD™
H-Series Module
400 Amperes/1700 Volts
CM400HA-34H
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

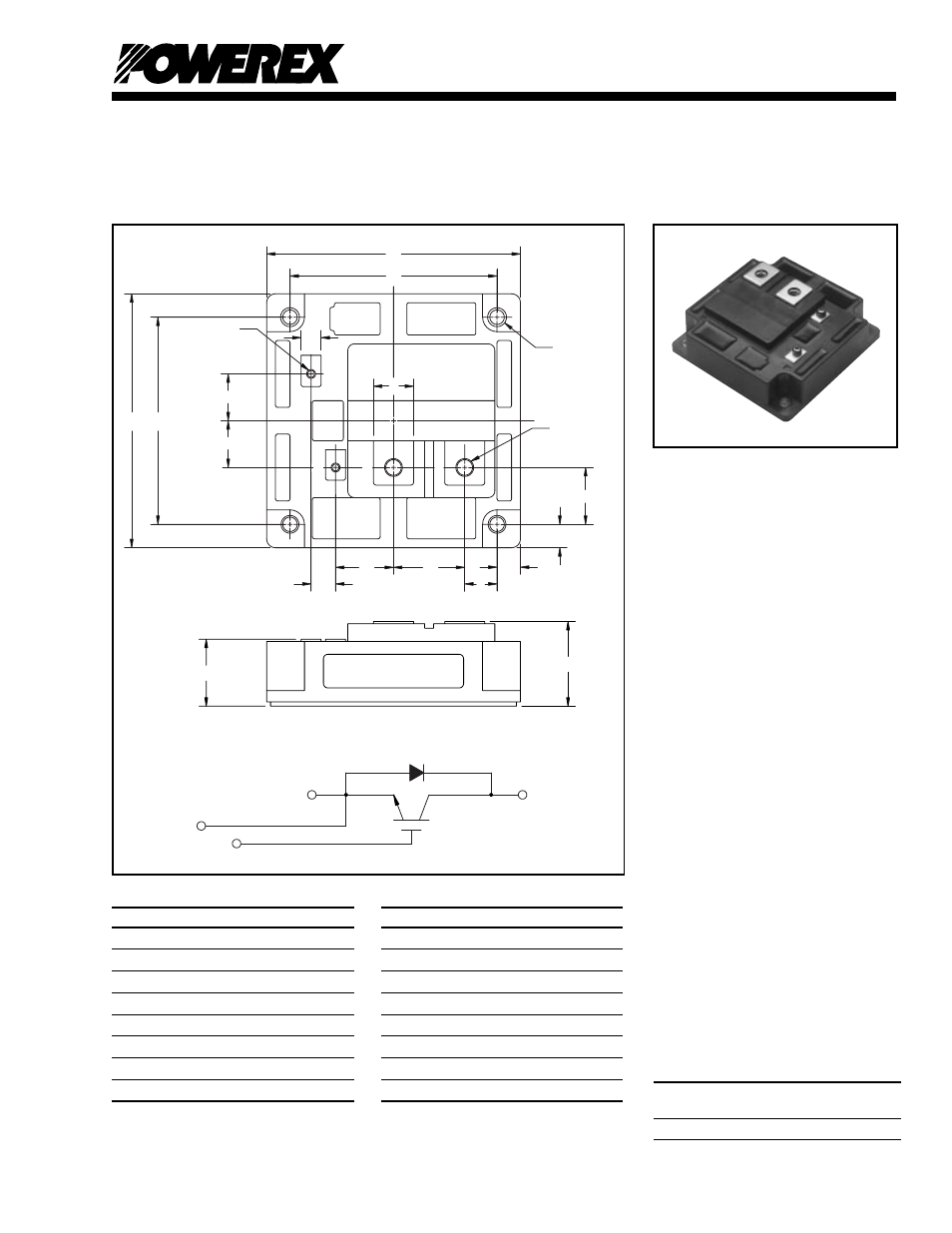

Outline Drawing and Circuit Diagram
Dimensions
Inches
Millimeters
A
4.49
114.0
B
3.66
±
0.01
93.0
±
0.25
C
1.50+0.04/-0.02 38.0+1.0/-0.5
D
1.26
32.0
E
1.18+0.04/-0.02 30.0+1.0/-0.5
F
1.02
26.0
G
1.0
25.5
H
0.83
21.0
Dimensions
Inches
Millimeters
J
0.71
18.0
K
0.57
14.5
L
0.43
11.0
M
0.41
10.5
N
0.35
9.0
P
M8 Metric
M8
Q
0.26 Dia.
Dia. 6.5
R
M4 Metric
M4
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module consists
of one IGBT Transistor in a single
configuration with a reverse-
connected super-fast recovery
free-wheel diode. All components
and interconnects are isolated
from the heat sinking baseplate,
offering simplified system assembly
and thermal management.
Features:
□
Low Drive Power
□
Low V
CE(sat)
□
Discrete Super-Fast Recovery
Free-Wheel Diode
□
High Frequency Operation
(20-25kHz)
□
Isolated Baseplate for Easy
Heat Sinking
Applications:
□
AC Motor Control
□
Auxilliary Inverter for Traction
□
UPS
□
Welding Power Supplies
□
Laser Power Supplies
Ordering Information:
Example: Select the complete part
module number you desire from
the table below -i.e. CM400HA-34H
is a 1700V (V
CES
), 400 Ampere
Single IGBTMOD™ Power Module.
Type
Current Rating
V
CES
Amperes
Volts (x 50)
CM
400
34
E
C
E
C
E
G
A
B
A
B
J
N
K
D
F
L
H
H
M
G
M
P - M8 THD
(2 TYP.)
Q - DIA.
(4 TYP.)
R - M4 THD
(2 TYP.)
G
E
E
C
