1
Single IGBTMOD™
H-Series Module
400 Amperes/1200 Volts
CM400HA-24H
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

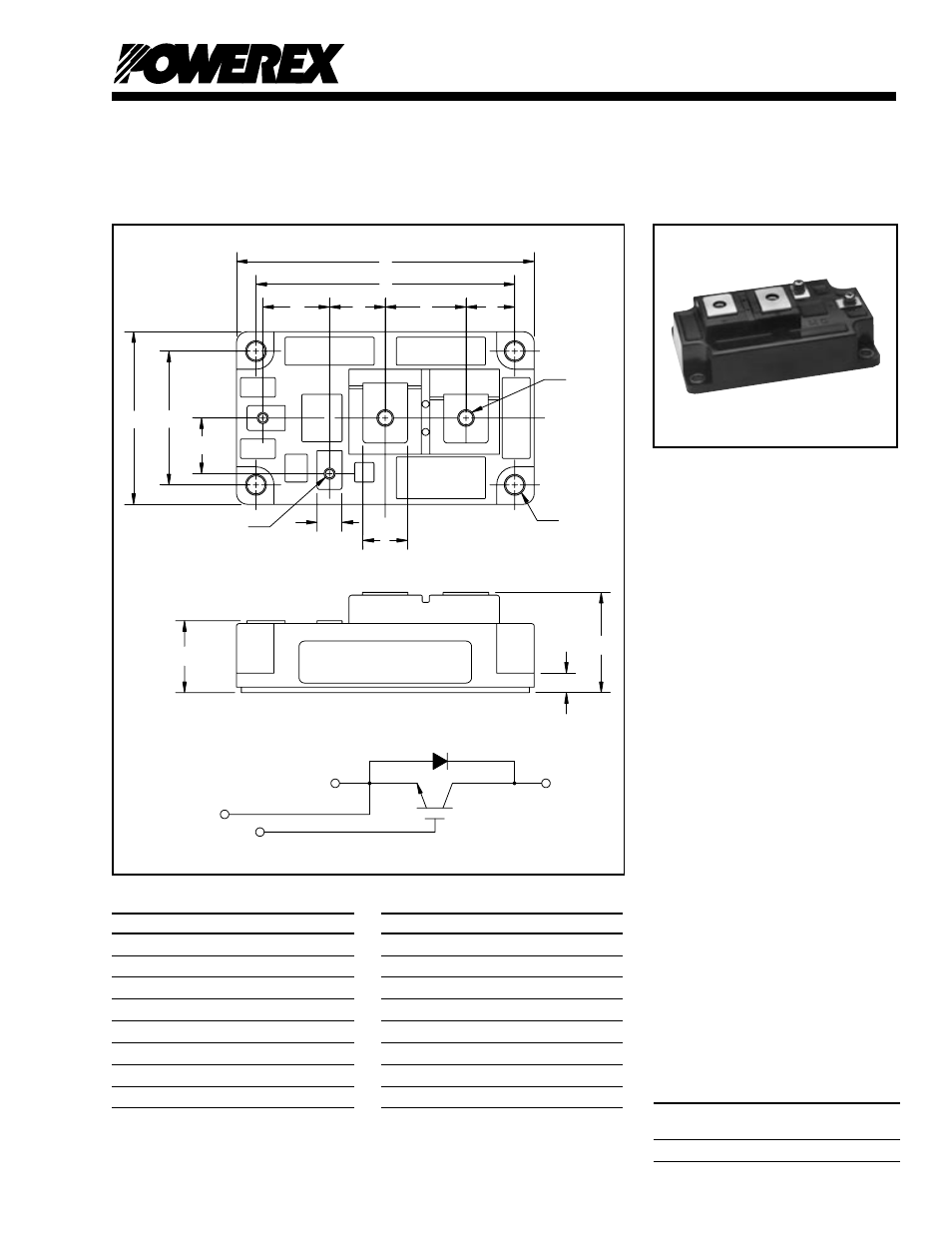

Outline Drawing and Circuit Diagram
Dimensions Inches Millimeters
A 4.21 107.0
B 3.661±0.01 93.0±0.25
C 2.44 62.0
D 1.89±0.01 48.0±0.25
E 1.42+0.04/-0.02 36.0+1.0/-0.5
F 1.14 29.0
G 1.02+0.04/-0.2 25.8+1.0/-0.5
H 0.94 24.0
Dimensions Inches Millimeters
J 0.79 20.0
K 0.69 17.5
L 0.63 16.0
M 0.35 9.0
N 0.28 7.0
P 0.26 Dia. Dia. 6.5
Q M6 Metric M6
R M4 Metric M4
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module consists
of one IGBT Transistor in a single
configuration with a reverse-
connected super-fast recovery
free-wheel diode. All components
and interconnects are isolated
from the heat sinking baseplate,
offering simplified system assembly
and thermal management.
Features:
£
Low Drive Power
£ Low V
CE(sat)
£ Discrete Super-Fast Recovery
(135ns) Free-Wheel Diode
£ High Frequency Operation
(20-25kHz)
£ Isolated Baseplate for Easy
Heat Sinking
Applications:
£
AC Motor Control
£ Motion/Servo Control
£ UPS
£ Welding Power Supplies
£ Laser Power Supplies
Ordering Information:
Example: Select the complete part
module number you desire from
the table below -i.e. CM400HA-24H
is a 1200V (V
CES
), 400 Ampere
Single IGBTMOD™ Power Module.
Type Current Rating V
CES
Amperes Volts (x 50)
CM 400 24
G
E
N
E C
E
G
M
A
B
K F J H
J
E
E
C
G
C
L
Q - THD
(2 TYP.)
P - DIA.
(4 TYP.)
R - THD
(2 TYP.)
