Single Discrete Diode
60 Amperes/4500 Volts
QRS4506002
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
www.pwrx.com
1 01/10 Rev. 3

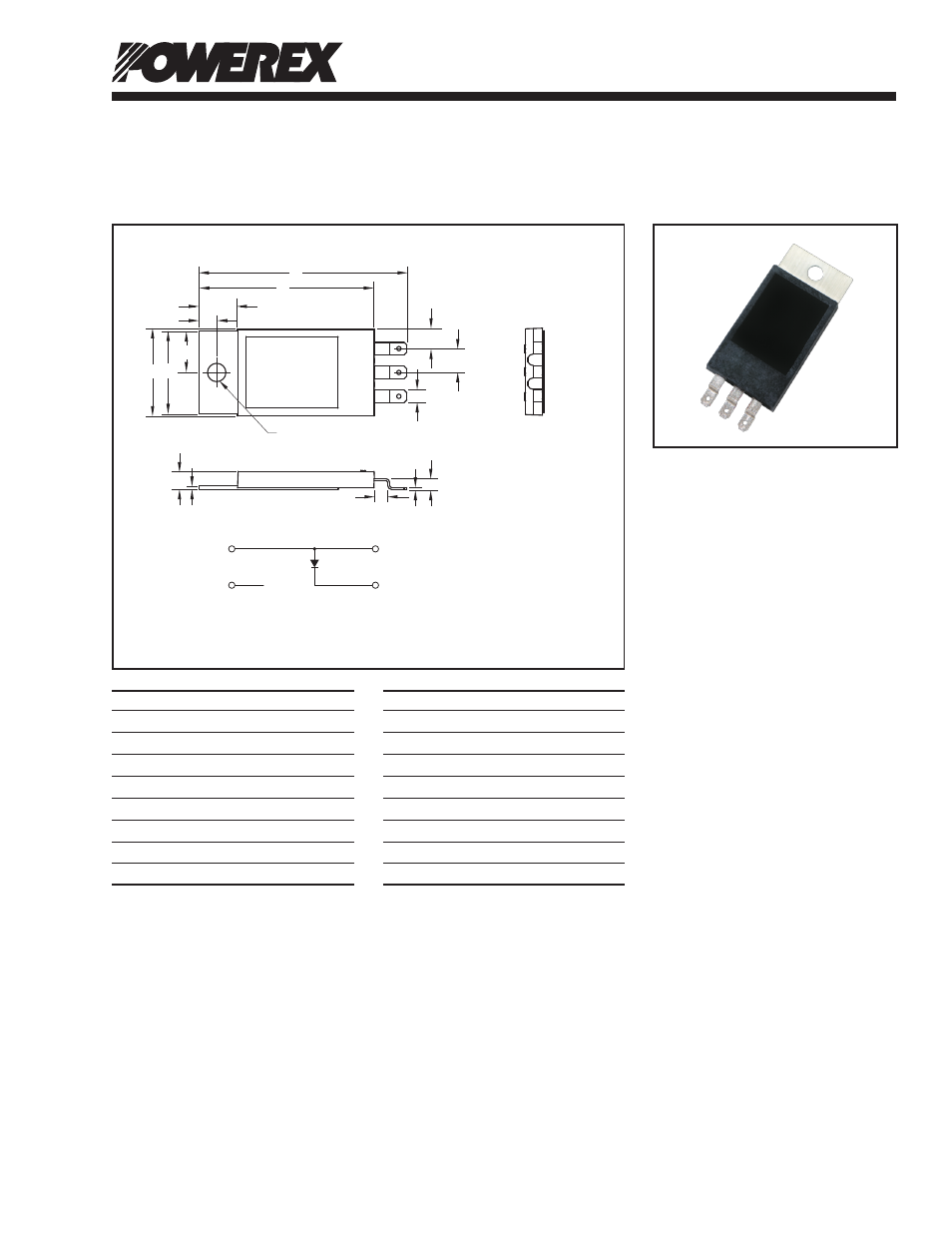

Outline Drawing and Circuit Diagram
Description:
Powerex Single Non-isolated
Discrete is designed specially
for customer high voltage
applications.
Features:
 Non-Isolated Package
 Molybdenum Mounting Plate
 Surface Mount Design
Applications:
 Snubber Circuits
 Free Wheeling
 Switching Power Supplies
A (3)
NC (2)
A (1)
K (BASE)
A
F
H
K
Q P
E
L
J B
G
M
R
C
N
D
A (3)
K (BASE) NC (2)
A (1)
Dimensions Inches Millimeters
A 2.35 59.7
B 0.98 25.0
C 1.98 50.3
D 0.197 5.0
E 0.22 5.5
F 0.22 5.6
G 0.465 11.8
H 0.27 6.9
Dimensions Inches Millimeters
J 0.93 23.6
K 0.14 3.6
L 0.20 5.2
M 0.40 1.0
N 0.43 11.0
P 0.20 0.5
Q 0.12 3.0
R 0.208 Dia. 5.3 Dia.
