HPS
Vishay Sfernice
High Ohmic Value (up to 1.5 G
Ω), High Power Resistors
(up to 10 W at 25 °C) Thick Film Technology
www.vishay.com For technical questions, contact: [email protected] Document Number: 52015
46 Revision: 09-Jun-08
FEATURES
• RoHS for most values, please consult us
• High ohmic values up to 1.5 GΩ
• Power rating up to 10 W at + 25 °C
• Molded or coated
• Ceramic core

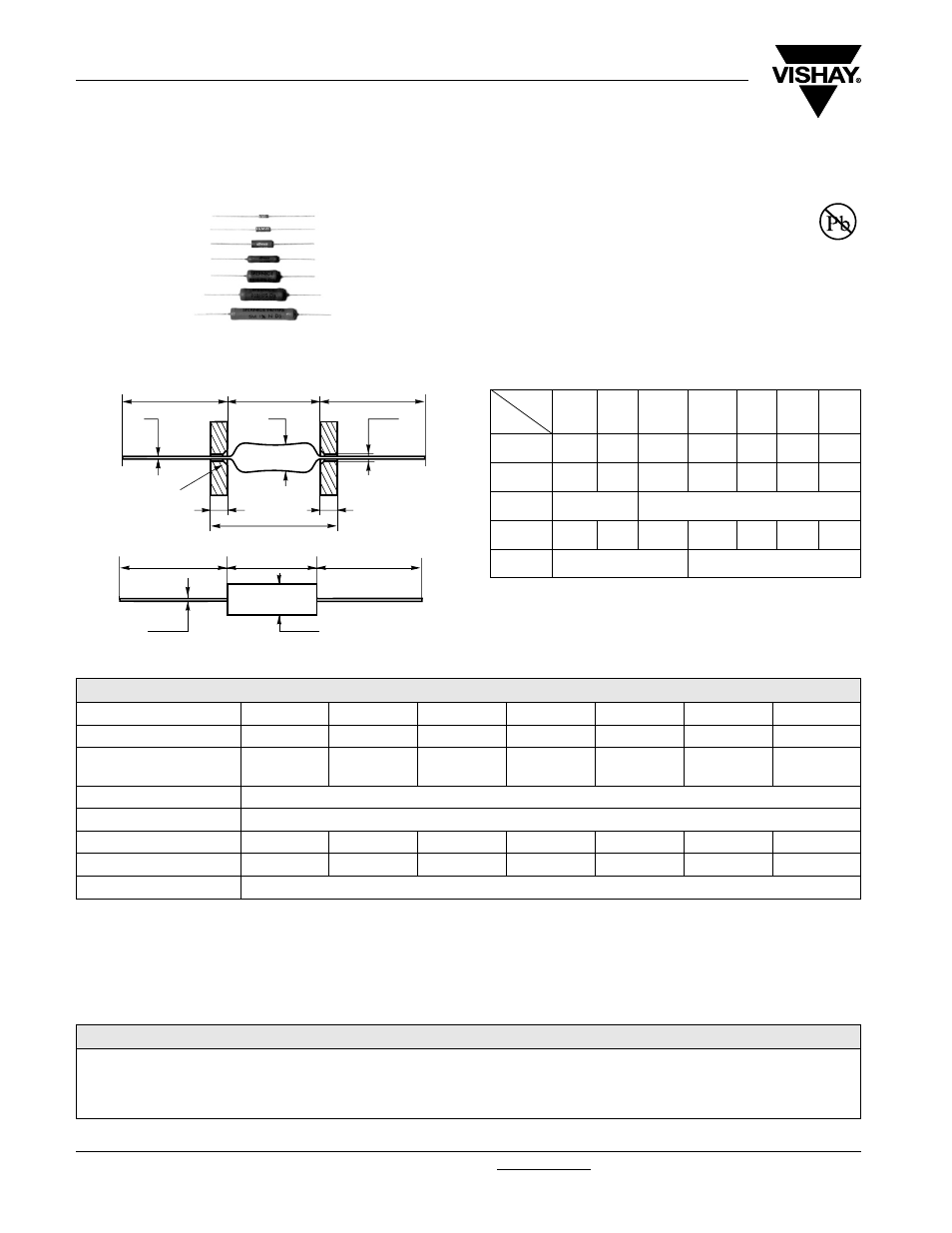

DIMENSIONS in millimeters
MARKING
GEKA trade-mark, series, style, nominal resistance (in
Ω), tolerance (in %), letter P for TCR ± 150 ppm/°C, manufacturing date.
Because of lack of space, small styles are marked with ohmic value (in
Ω), tolerance (in %) and letter P.
RoHS
COMPLIANT
25 min. 25 min. A
Ø B Ø E
L max.
4 4
45 ° chamfer
max. 0.25 mm deep
Ø a ± 0.02
COATED
25 min. 25 min. A
Ø B Ø E
MOLDED
STYLE
DIM.
HPS 58 HPS 63 HPS 68 HPS 523 HPS 923 HPS 932 HPS 947
A 6.5 ± 0.2 10 ± 0.2 15 ± 0.2 23 ± 2.3 23 ± 2.5 32 ± 2.5 47 ± 2.5
Ø B 2.4 ± 0.1 3.7 ± 0.1 5.6 ± 0.3 5 ± 0.3 9 ± 0.5 9 ± 0.5 9 ± 0.5
Ø E ± 0.1 0.6 0.8
Weight in g 0.24 0.29 0.67 1.23 4.60 5.27 7.18
Finish MOLDED COATED
TECHNICAL SPECIFICATIONS
SERIES AND STYLES HPS 58 HPS 63 HPS 68 HPS 523 HPS 923 HPS 932 HPS 947
Power Rating at + 25 °C 1 W 2 W 3 W 4 W 6 W 8 W 10 W
Ohmic Range
200 Ω
100 M
Ω
200 Ω
175 M
Ω
300 Ω
400 M
Ω
800 Ω
650 M
Ω
1 k Ω
1 G
Ω
1 k Ω
1 G
Ω
2 k Ω
1.5 G
Ω
Tolerance ± 0.5 % to ± 10 %
Temperature Coefficient ± 150 ppm/°C
Limiting Element Voltage 0.3 kV 0.7 kV 1.5 kV 2 kV 2.5 kV 5 kV 8 kV
Critical Resistance 90 k Ω 245 k Ω 750 k Ω 1 M Ω 1.041 M Ω 3.125 M Ω 6.4 M Ω
Climatic Category - 55 °C/+ 200 °C/56 days
ORDERING INFORMATION
HPS 68 50 M
Ω
10 % 150 ppm/°C BL20 e1
MODEL SIZE OHMIC VALUE TOLERANCE TEMPERATURE
COEFFICIENT
PACKAGING LEAD (Pb)-FREE
