T9S0__1803
Phase Control Thyristor
Powerex, Inc., 173 Pavilion Ln, Youngwood, Pennsylvania 15697-1800 (724)925-7272 www.pwrx.com 1800 Amperes 2200 Volts
0
500
1000
1500
2000
2500
3000
3500
4000
0 200 400 600 800 1000 1200 1400 1600 1800 2000
Pa
v
g
(Wa
tts
)
Iavg (A)

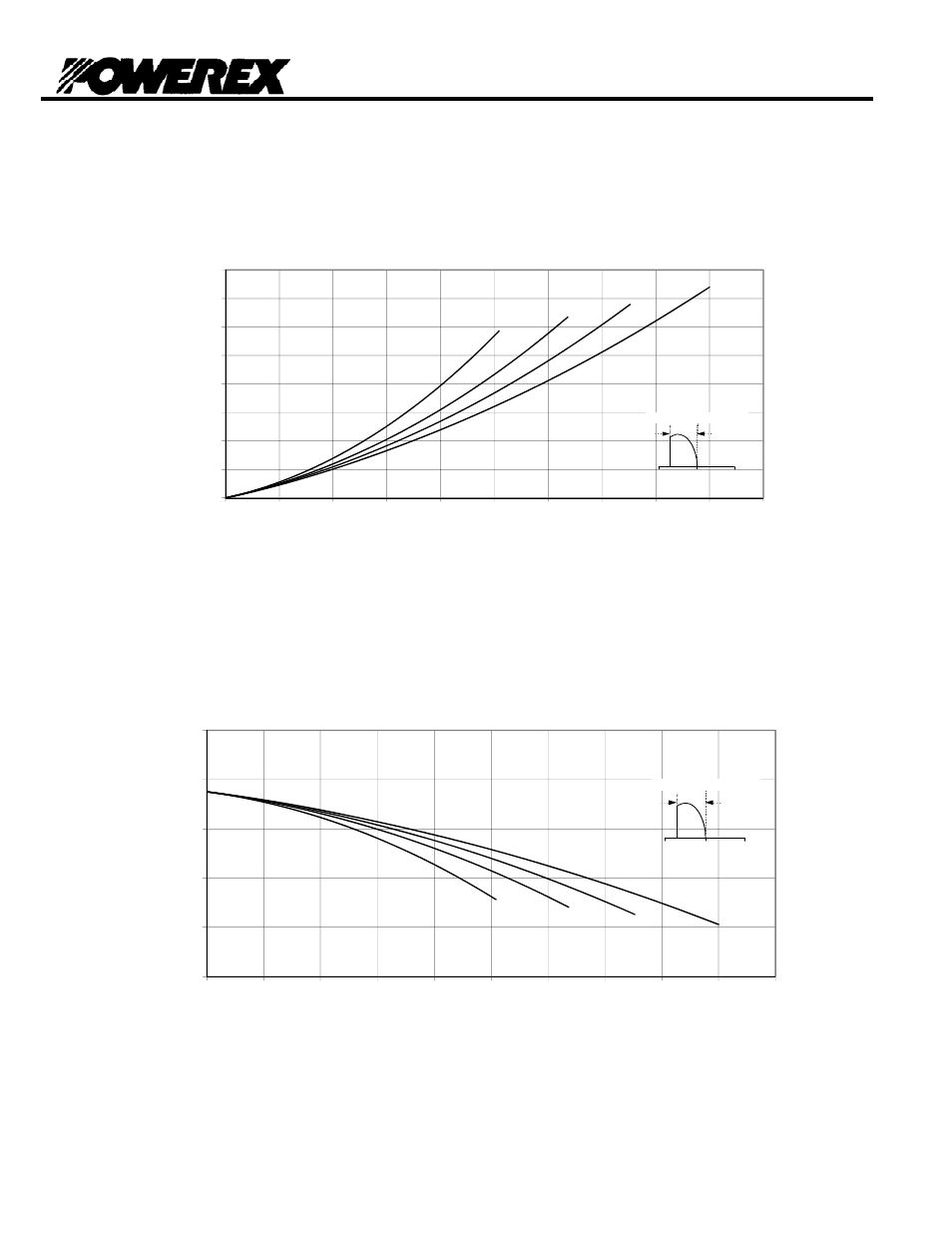

Maximum On-State Power Dissipation
Sinusoidal Waveform
60°
90°
120°
180°
0° 180° 360°
CONDUCTION ANGLE
50
70
90
110
130
150
0 200 400 600 800 1000 1200 1400 1600 1800 2000
Tc (°C)
Iavg (A)
Maximum Allowable Case Temperature
Sinusoidal Waveform
60°
90°
120°
180°
0° 180° 360°
CONDUCTION ANGLE
Page 5 of 6
