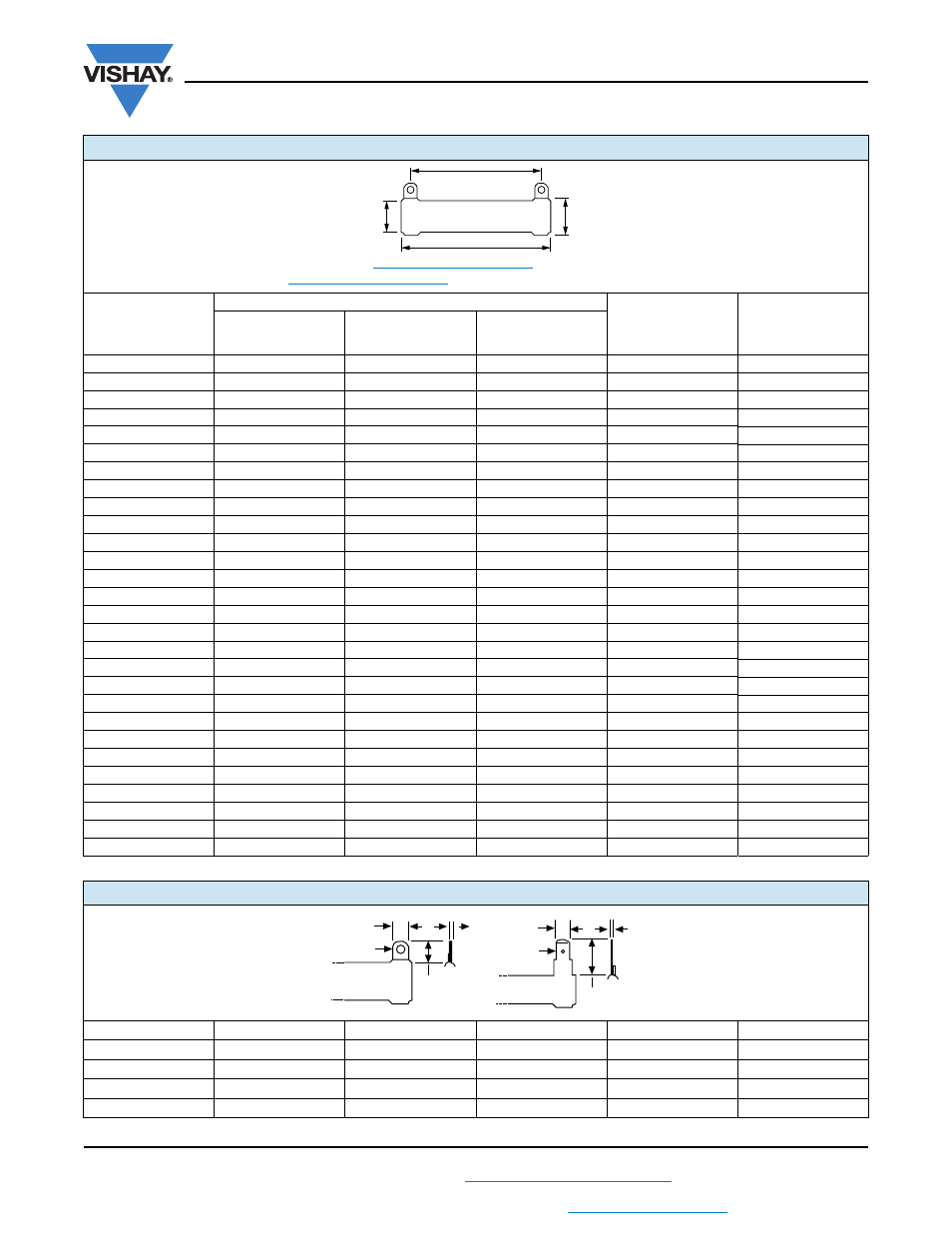

DIMENSIONS in inches (millimeters)
• For Terminal Data and Mounting Hardware, see www.vishay.com/doc?31811
• For Enclosures and Frames, see www.vishay.com/doc?31810
GLOBAL
MODEL
CORE DIMENSIONS (REF.) A
DISTANCE
BETWEEN
TERMINAL (REF.)
TERMINAL
STYLE
B
LENGTH
C
OUTER DIAMETER
D
INNER DIAMETER
RDEA0012 0.313 (7.95) 0.188 (4.775) 1.75 (44.45) 1.38 (34.925) A
RDEA0025 0.563 (14.3) 0.313 (7.95) 2 (50.8) 1.50 (38.1) D
RDEA0030 0.75 (19.05) 0.5 (12.7) 2 (50.8) 1.50 (38.1) D
RDEA0045 0.75 (19.05) 0.5 (12.7) 3 (76.2) 2.50 (63.5) D
RDEA0050 0.563 (14.3) 0.313 (7.95) 4 (101.6) 3.50 (88.9) D
RDEA0051 0.75 (19.05) 0.5 (12.7) 3.5 (88.9) 3.00 (76.2) D
RDEA0061 0.75 (19.05) 0.5 (12.7) 4 (101.6) 3.50 (88.9) D
RDEA0065 0.75 (19.05) 0.5 (12.7) 4.5 (114.3) 4.00 (101.6) D
RDEA0075 0.563 (14.3) 0.313 (7.95) 6 (152.4) 5.50 (139.7) D
RDEA0076 0.75 (19.05) 0.5 (12.7) 5 (127) 4.50 (114.3) D
RDEA0080 1.125 (28.575) 0.75 (19.05) 4 (101.6) 3.13 (79.375) F
RDEA0090 0.75 (19.05) 0.5 (12.7) 6 (152.4) 5.50 (139.7) D
RDEA0095 1.125 (28.575) 0.75 (19.05) 5 (127) 4.13 (104.775) F
RDEA0100 0.75 (19.05) 0.5 (12.7) 6.5 (165.1) 6.00 (152.4) D
RDEA0120 1.125 (28.575) 0.75 (19.05) 6 (152.4) 5.13 (130.175) F
RDEA0130 1.125 (28.575) 0.75 (19.05) 6.5 (165.1) 5.63 (142.875) F
RDEA0160 1.125 (28.575) 0.75 (19.05) 8 (203.2) 7.13 (193.675) F
RDEA0175 1.125 (28.575) 0.75 (19.05) 8.5 (215.9) 7.63 (177.8) F
RDEA0220 1.625 (41.275) 1.125 (28.575) 8.5 (215.9) 7.00 (177.8) G
RDEA0225 1.125 (28.575) 0.75 (19.05) 10.5 (266.7) 9.63 (244.475) F
RDEA0235 1.125 (28.575) 0.75 (19.05) 11.25 (285.75) 10.38 (263.525) F
RDEA0240 1.125 (28.575) 0.75 (19.05) 11.75 (298.45) 10.88 (276.225) F
RDEA0275 1.625 (41.275) 1.125 (28.575) 10.5 (266.7) 9.00 (228.6) G
RDEA0300 1.625 (41.275) 1.125 (28.575) 11.75 (298.45) 10.25 (260.35) G
RDEA0500 2 (50.8) 1.75 (44.45) 12 (304.8) 10.50 (266.7) G
RDEA0750 2.5 (63.5) 1.75 (44.45) 15 (381) 13.50 (342.9) G
RDEA1000 2.5 (63.5) 1.75 (44.45) 20 (508) 18.50 (469.9) G
RDEA1150 3.25 (82.55) 1.75 (44.45) 20 (508) 18.50 (469.9) G
TERMINAL STYLE in inches (millimeters)
DIMENSIONS A (3/16" LUG) D (1/4" LUG) F (3/8" LUG) G (1/2" LUG) H (1/4" SQC)
Width (A) 0.1875 (4.7625) 0.25 (6.35) 0.375 (9.525) 0.5 (12.7) 0.25 (6.35)
Height (B) 0.375 (9.525) 0.5 (12.7) 0.625 (15.875) 0.9375 (23.8125) 0.625 (15.875)
Dia. (C) 0.13 (3.302) 0.17 (4.318) 0.2 (5.08) 0.26 (6.604) 0.065 (1.651)
Thickness (D) 0.02 (0.508) 0.02 (0.508) 0.035 (0.889) 0.046 (1.1684) 0.032 (0.8128)
A
B
D C
D
Type H
B
A
C
B
D
C
A
Type A, D, F, G
