Dimension Inches Millimeters
A 4.25 108
B 3.661±0.012 93.0±0.3
C 2.44 Max. 62.0 Max.
D 1.890±0.012 48.0±0.3
E 1.63 Max. 41.5 Max.
F 1.42 Max. 36.0 Max.
G 1.14 29.0
H 0.63 16.0
J 0.26 6.5
K 0.256 Dia. Dia. 6.5
L 0.12 3.0
M M6 Metric M6
Description:
Powerex Super-Fast Recovery
Single Diode Modules are
designed for use in applications
requiring fast switching. The
modules are isolated for easy
mounting with other components
on common heatsinks.
Features:
Ⅺ
Isolated Mounting
Ⅺ
Planar Chips
Applications:
Ⅺ Inverters
Ⅺ Choppers
Ⅺ Switching Power Supplies
Ⅺ Free Wheeling
Ordering Information:
Select the complete ten digit
module part number you desire
from the table below.
Example: RM400HA-24S is a
1200 Volt, 400 Ampere, Super
Fast Recovery Single Diode
Module.
Current Rating Voltage
Type Amperes Volts (x50)
RM 400 24
D-37
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Super Fast Recovery
Single Diode Module
400 Amperes/1200 Volts
RM400HA-24S

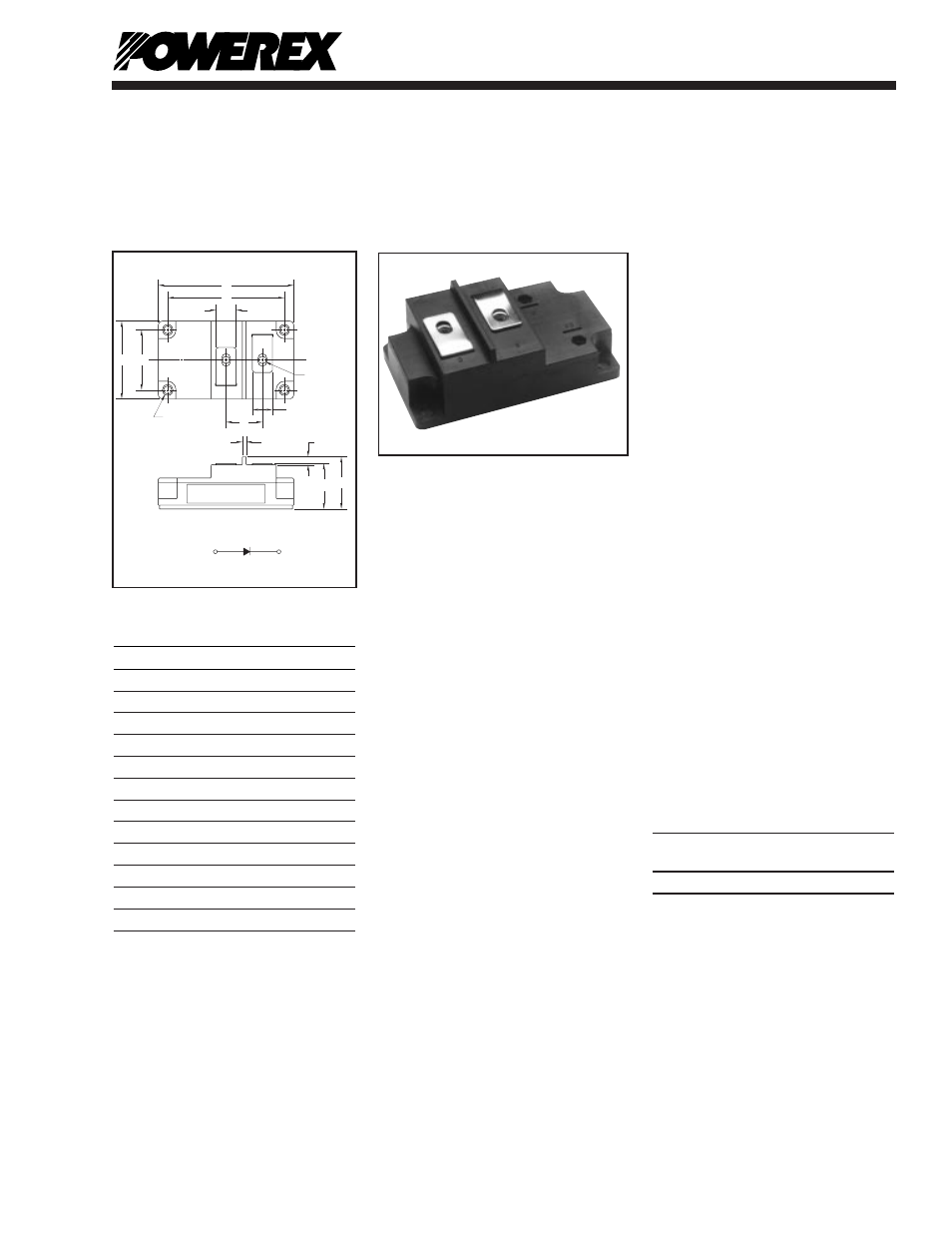

Outline Drawing
RM400HA-24S
Super Fast Recovery
Single Diode Module
400 Amperes/1200 Volts
F E
B
A
D C
G
H
H
J L
CONNECTION DIAGRAM
OUTLINE DRAWING
A K
A
K
K - DIA.
(4 TYP.)
M - M6 THD
(2 TYP.)
CL
CL
