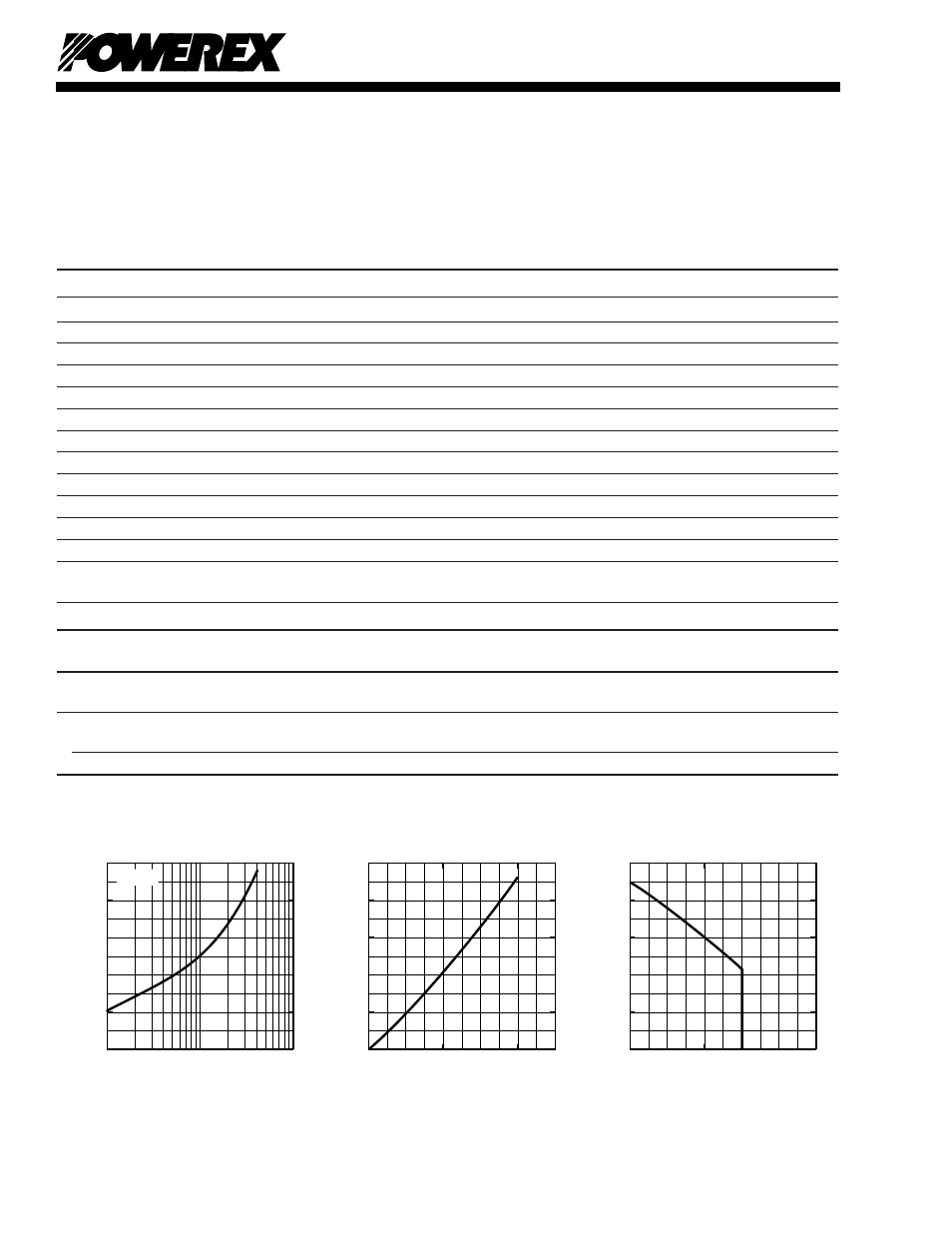

Three-Phase Diode Bridge Modules
30 Amperes/800 Volts
Absolute Maximum Ratings
Characteristics
Symbol
ME700803
Units
Peak Reverse Blocking Voltage
VRRM
800
Volts
Transient Peak Reverse Blocking Voltage (Non-Repetitive), t < 5ms
VRSM
900
Volts
DC Reverse Blocking Voltage
VR(DC)
640
Volts
DC Output Current, TC = 103°C
IO
30
Amperes
Peak One-Cycle Surge (Non-Repetitive) On-State Current (60Hz)
IFSM
400
Amperes
Peak One-Cycle Surge (Non-Repetitive) On-State Current (50Hz)
IFSM
365
Amperes
I2t (for Fusing), 8.3 milliseconds
I2t
667
A2sec
Storage Temperature
TSTG
-40 to 125
°C
Operating Temperature
Tj
-40 to 150
°C
Maximum Mounting Torque M6 Mounting Screw
—
26
in.-lb.
Module Weight (Typical)
—
120
Grams
V Isolation
VRMS
2000
Volts
Electrical and Thermal Characteristics,
Tj = 25°C unless otherwise specified
Characteristics
Symbol
Test Conditions
ME700803
Units
Blocking State Maximums
Reverse Leakage Current, Peak
IRRM
Tj = 150°C, VRRM = Rated
1.5
mA
Conducting State Maximums
Peak On-State Voltage
VFM
IFM = 30A
1.1
Volts
Thermal Maximums
Thermal Resistance, Junction-to-Case
R
(J-C)
Per Module
0.7
°C/Watt
Thermal Resistance, Case-to-Sink (Lubricated)
R
(C-S)
Per Module
0.1
°C/Watt
INSTANTANEOUS ON-STATE CURRENT, I
FM
,
(AMPERES)
MAXIMUM
ON-STATE CHARACTERISTICS
0.7
10
0
0.8
0.9
1.0
1.1
1.2
10
1
10
2
INSTANTANEOUS ON-STATE VOLTAGE, V
TM
, (VOLTS)
T
j
= 25
o
C
MAXIMUM
ON-STATE POWER DISSIPATION
DC OUTPUT CURRENT, I
O
, (AMPERES)
MAXIMUM POWER DISSIPATION, P
AV(MAX)
, (WATTS)
0
10
20
30
40
50
0
20
40
60
80
100
60
MAXIMUM
ALLOWABLE CASE TEMPERATURE
DC OUTPUT CURRENT, I
O
, (AMPERES)
MAXIMUM ALLOWABLE CASE TEMPERATURE, T
C
, (
o
C)
120
140
160
100
80
0
10
20
30
40
50
