ST1200C..KP Series
Vishay High Power Products Phase Control Thyristors
(Hockey PUK Version), 1650 A

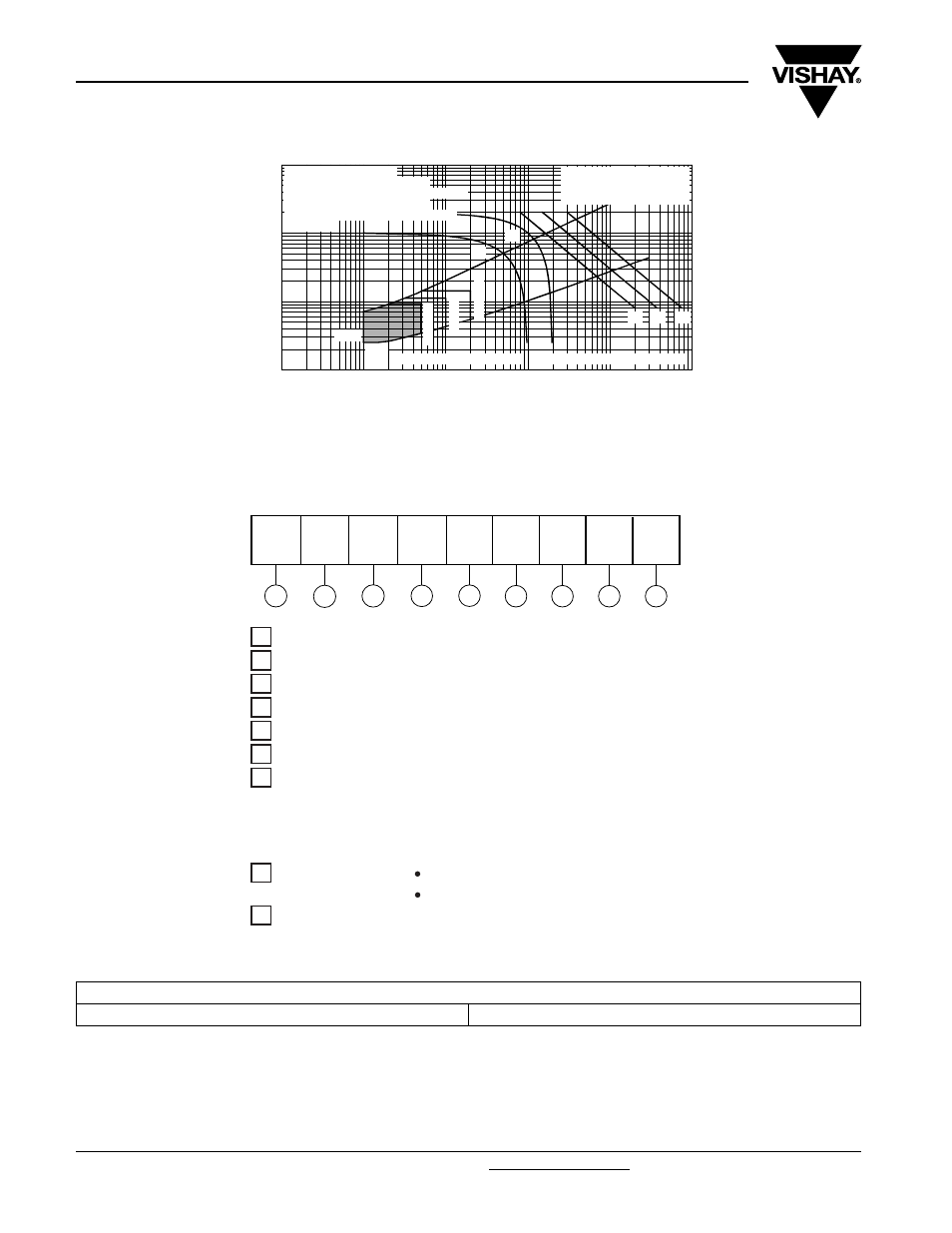

Fig. 11 - Gate Characteristics
ORDERING INFORMATION TABLE
Instantaneous Gate Current (A)
Instantaneous Gate Voltage (V)
0.1
1
10
100
0.001 0.01 0.1 1 10 100
VGD
IGD
(b)
(a)
Tj
=
2
5 °
C
Tj
=
1
25
°C
Tj=
-4
0
°
C
(2)
a) Recommended load line for
b) Recommended load line for
<=30% rated di/dt : 10V, 10ohms
Frequency Limited by PG(AV)
rated di/dt : 20V, 10ohms; tr<=1 µs
tr<=1 µs
Rectangular gate pulse
(3) (1)
(1) PGM = 10W, tp = 4ms
(2) PGM = 20W, tp = 2ms
(3) PGM = 40W, tp = 1ms
Device: ST1200C..K Series
1 - Thyristor
2 - Essential part number
3 - 0 = Converter grade
4
9 - Lead (Pb)-free
- C = Ceramic PUK
8 - Critical dV/dt:
5 - Voltage code x 100 = V
RRM
(see Voltage Ratings table)
6 - K = PUK case A-24 (K-PUK)
7 - 0 = Eyelet terminals (gate and auxiliary cathode unsoldered leads)
1 = Fast-on terminals (gate and auxiliary cathode unsoldered leads)
2 = Eyelet terminals (gate and auxiliary cathode soldered leads)
3 = Fast-on terminals (gate and auxiliary cathode soldered leads)
None = 500 V/µs (standard selection)
L = 1000 V/µs (special selection)
Device code
5 1 3 2 4 6 7 8 9
ST 112 0 C 20 K 1 - PbF
LINKS TO RELATED DOCUMENTS
Dimensions http://www.vishay.com/doc?95081
