GTO 4000-0.12R
Vishay ESTA
Document Number: 13098
Revision 14-Jan-02
GTO Snubber Capacitors, Dry Self-healing
PART NO. GTO 4000-0.12 R
ART. NO. 42844
NOMINAL RATINGS
Capacitance/Tolerance
CN 0.12uF
±
5%
Rated voltage UN 4000V
Rated DC voltage Udc 3000VDC
Rated RMS voltage Urms 1400VAC
Peak voltage period. Us 4000VDC
Peak voltage not period. Usmax 4600VDC
Voltage raise du/dt 4000V/us
Rated current In 20A
Peak current Is 480A
Inductance Ls < 10nH
Loss factor diel. tand < 2*10^ - 4
Loss factor 50Hz tand < 2*10^ - 4
Loss factor 1kHz tand < 10.0*10^ - 4
ROUTINE TESTS
Test voltage terminal/terminal
UT/T 6000V, DC, 10s
OPERATING TEMPERATURE
Minimum ambient temperature
Ta min - 40
°
C
Maximum ambient temperature Ta max 70
°
C
Minimum casing temperature Tc min - 40
°
C
Maximum casing temperature Tc max 75
°
C
Storage temperature
Minimum temperature
Tmin - 50
°
C
Maximum temperature Tmax 85
°
C
TECHNOLOGY
Dielectric
Polypropylene film
metallized, self-healing
Filling material resin, polyurethane
dry
BUSHING
Internal thread
M6 depth 8mm
Max. torque 6Nm
Air distance 79mm
Creepage distance 79mm
DESIGN DATA
Diameter
55mm
Height 59mm
Drawing 20-B-050
Weight 0.1kg
Casing material plastic
Mounting position every position
LIFE EXPECTANCY > 100000 Std
FAILURE RATE 300 FIT

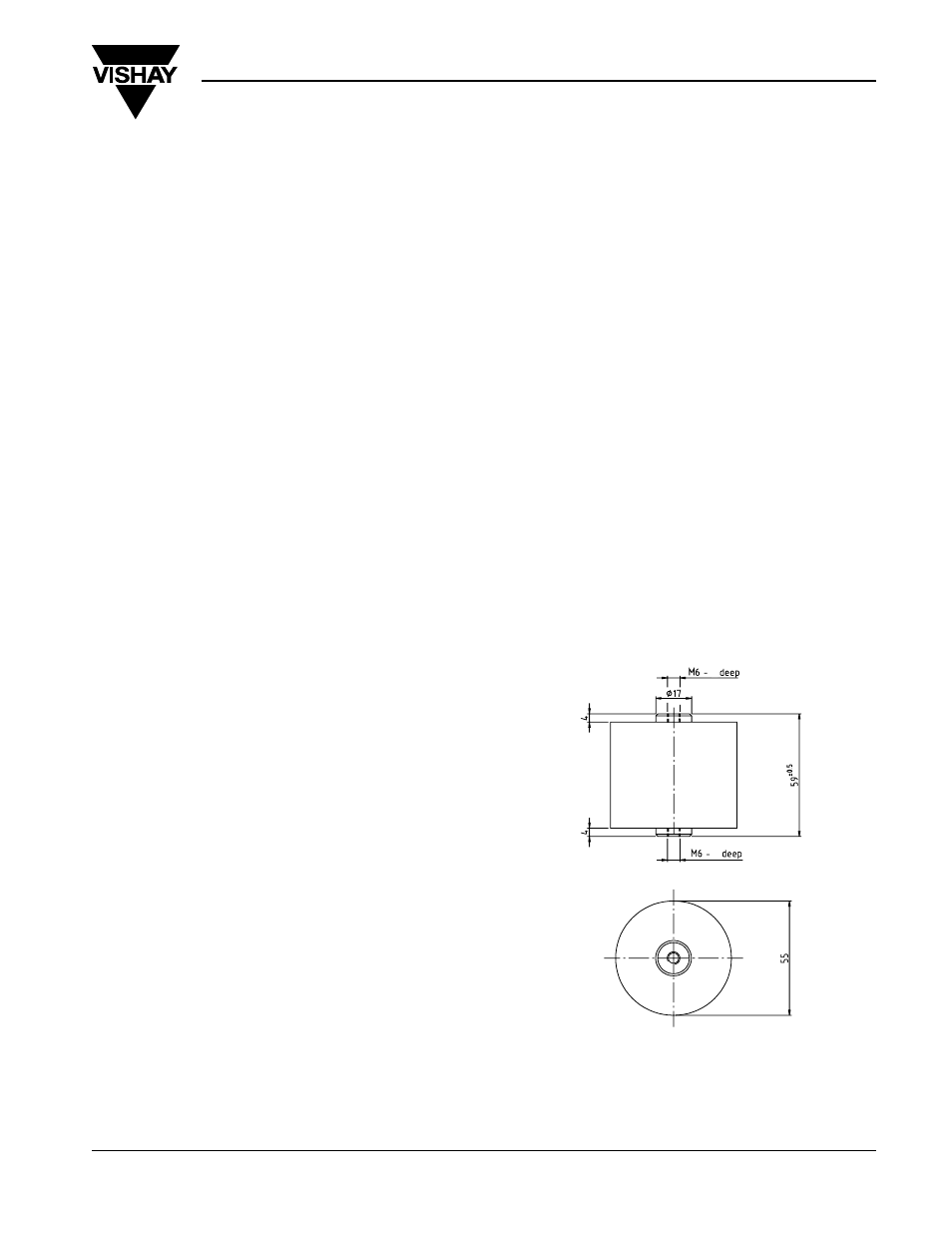

DIMENSIONS
6
6
