www.vishay.com
9
Phmkp...-DR/Phmkpg...-DR
Vishay ESTA
Document Number: 13054
Revision 16-May-02
Line Frequency Capacitors 50/60Hz
DESIGN
• MKP-type wound elements in high-quality steel sheet or
brass sheet welded casing;
• Casing varnish RAL 7033;
• IP00, indoor, - 25°C/+ 45° C (unless otherwise confi rmed);
• Self-healing, with overpressure switch (“DR”) or tear-off
fuse (A)*,(*available only for a limited number of types!);
• Connection bolt M12, or M20 (depending on application
current);
• Grounding bolt M12;
• Mounting in the upright position, or horizontally on the
narrow side.
Water-cooled capacitors can be supplied upon request.

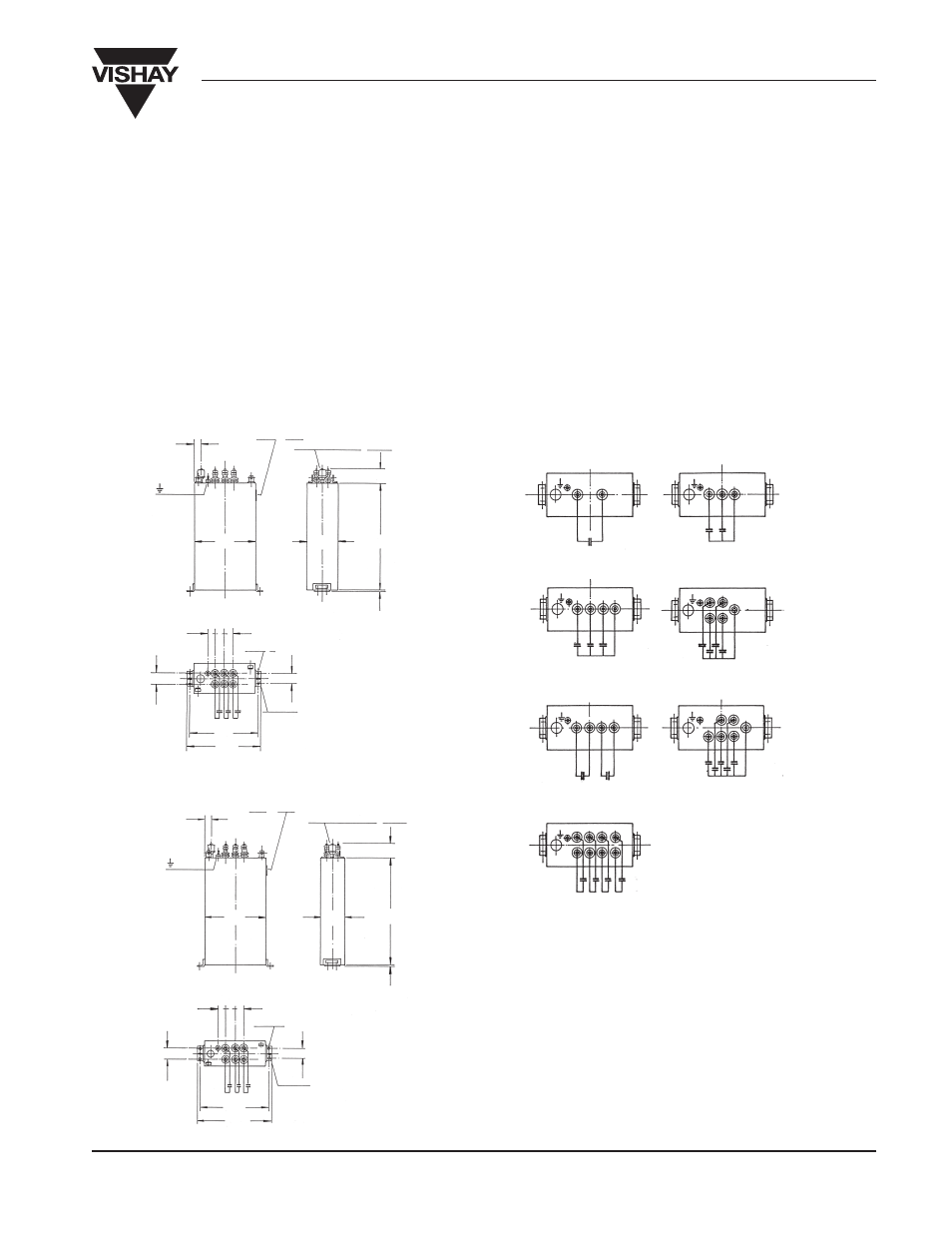

35
345
pressure monitoring device
H1
383
135
M 12
H
5
50
rating plate
2 x ø 9.8
405
V I
50
rating plate
I II
III
V
IV
VII
VERSION A/CIRCUITRY VI ADDITIONAL CIRTUITRY VERSIONS
VERSION B/CIRCUITRY VI
40
60
50
11 x 15
35
345
pressure monitoring device
H1
383
75
M 12
H
5
50
2 x ø 9.8
405
V I
50 40 50
11 x 15
60
IX
ESTAprop
®
/ESTAdry
®
200 - 1000V, SELF-COOLING, SINGLE-PHASE
