Three-Phase
Diode Bridge Module
150 Amperes / 800-1600 Volts
RM75TPM-H / -24 / -2H
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

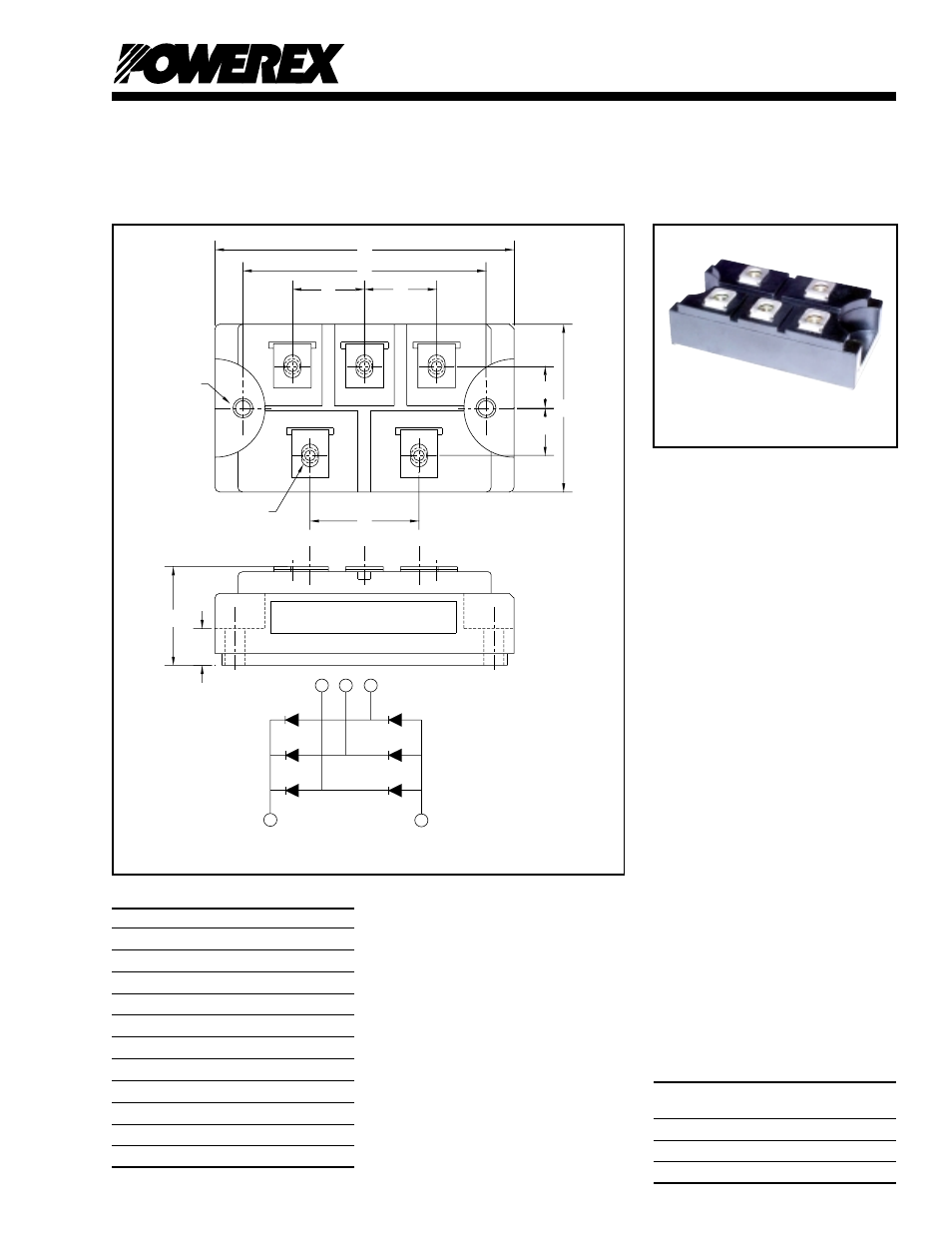

Outline Drawing and Circuit Diagram
Dimensions
Inches
Millimeters
A
3.15
80.0
B
1.58
40.0
C
0.95 +0.06/+0.02 24.1 +1.5/-0.5
D
2.68
±
0.01
68.0
±
0.25
E
0.79
20.0
F
0.41
10.5
G
0.45
11.5
H
1.18
30.0
J
0.32
8.0
K
0.217
5.5
L
M5
M5
Description:
Powerex Three-Phase Diode
Bridge Modules are designed for
use in applications requiring rectifi-
cation of three-phase AC lines into
DC voltage. Each module consists
of six diodes and the interconnect
required to form a complete three-
phase bridge circuit. Each diode is
electrically insulated from the
mounting base plate for easy
mounting on a common heatsink
with other components.
Features:
□
Isolated Mounting
□
Metal Base Plate
□
Low Thermal Impedance
Applications:
□
Motor Control
□
Inverters
□
UPS
Ordering Information:
Example: Select the complete
module number you desire from
the table - i.e. RM75TPM-H is a
800V (V
CES
), 150 Ampere Three-
Phase Diode Bridge Module.
Current Rating
V
CES
Type
Amperes
Volts
-H
150
800
-24
150
1200
-2H
150
1600
H
G
F
K (2 PLACES)
L THD
(5 PLACES)
C
J
B
A
D
E
E
LABEL
~
~
~
–
+
+
–
~
~
~
