EC
Vishay ESTA
Document Number: 13015
Revision 04-Jan-02
www.vishay.com
6

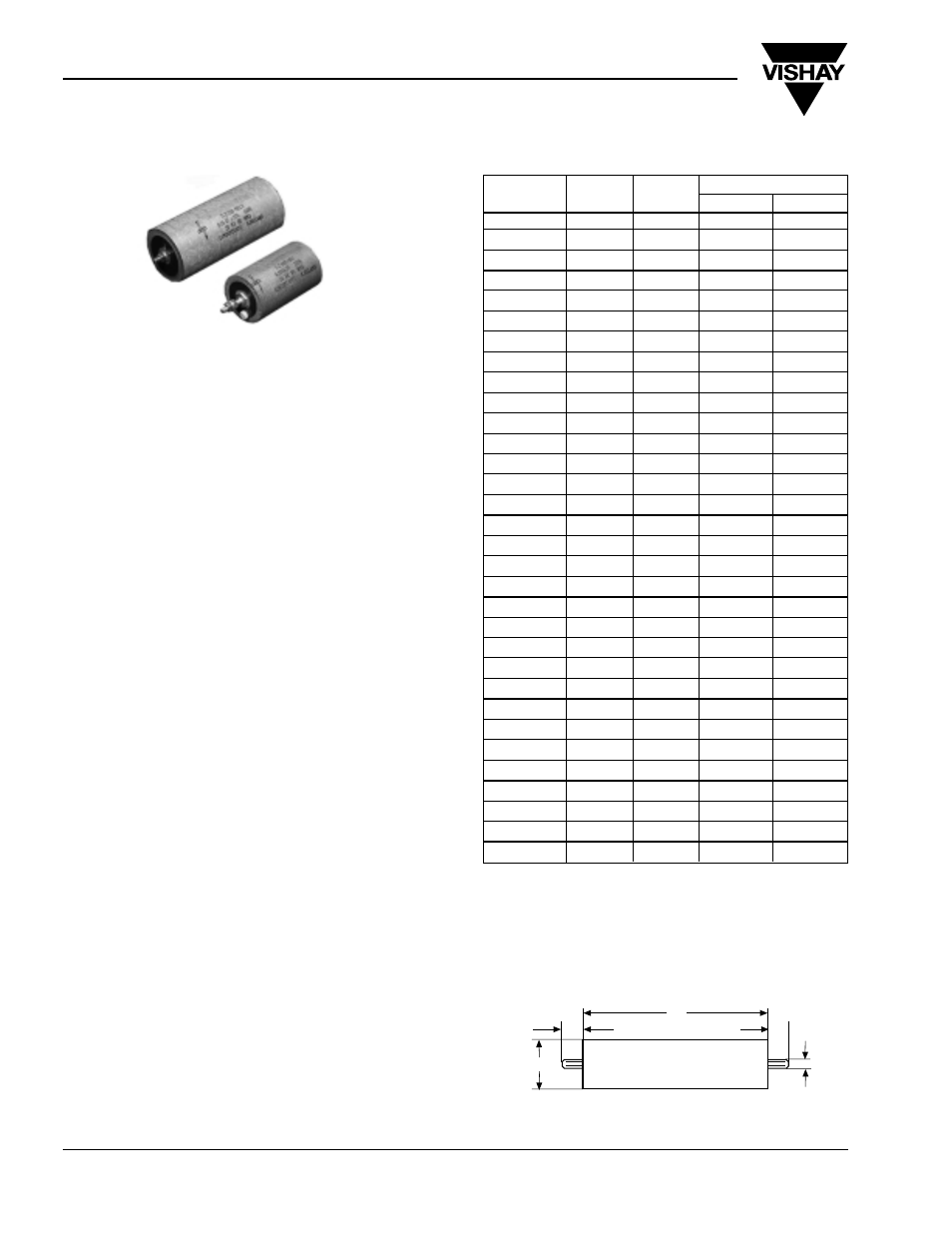

TYPE EC
The EC range of capacitors are similar in design to the
ET range but are housed in a more robust container.
They are manufactured using a mixed dielectric material
that consists of polyester/polypropylene film and
capacitor tissue. They are impregnated and filled with a
mineral oil. The container is a Synthetic Resin Bonded
Paper (SRBP) tube sealed at both ends with resin
assuring a hermetic seal. The capacitors may be used
in air, oil or SF6. They are terminated with M6 studs x
15mm long or tinned copper wire.
Note: The impregnant used is a non toxic highly purified
and inhibited mineral oil.
APPLICATIONS
The EC range of capacitors are specifically designed for
high voltage filters and can be sucessfully used in the
following applications:
High voltage smoothing
Induction heating
RT transmitter power supplies
X-ray power supplies
TEMPERATURE RANGE
Temperature range is - 40°C to + 85°C. Derating is
required for operation at higher temperatures.
TEMPERATURE COEFFICIENT
Capacitance will increase by 2% per 100°C temperature
rise.
CAPACITANCE RANGE
0.001µF - 2µF. The tolerance is ± 10%. Other tolerance
are available on request. Normal values measured at
1kHz.
VOLTAGE RANGE
1000VDC - 100kVDC
TEST VOLTAGE
Terminal/terminal (Vt/t)
For DC rating < 20kV
Vt/t = 2.0 x rated voltage 60s
For DC rating > 20kV
Vt/t = 1.5 x rated voltage 60s
High Voltage DC Filter Capacitors
PART
KILO-
DIMENSIONS
NUMBER
µF
VOLTS
L mm
D mm
EC100-104
0.1
10
115
65
EC100-254
0.25
10
140
75
EC100-504
0.5
10
205
95
EC200-503
0.05
20
180
65
EC200-104
0.1
20
230
65
EC200-254
0.25
20
280
75
EC200-504
0.5
20
360
95
EC300-253
0.025
30
245
65
EC300-503
0.05
30
320
65
EC300-104
0.1
30
395
65
EC300-254
0.25
30
510
75
EC400-253
0.025
40
305
65
EC400-503
0.05
40
410
65
EC400-104
0.01
40
345
95
EC400-124
0.12
40
440
95
EC500-103
0.01
50
270
65
EC500-253
0.025
50
335
65
EC500-503
0.05
50
430
75
EC500-104
0.1
50
430
95
EC600-502
0.005
60
310
65
EC600-103
0.01
60
310
75
EC600-253
0.025
60
390
75
EC600-503
0.05
60
500
75
EC600-104
0.1
60
615
95
EC800-502
0.005
80
400
65
EC800-103
0.01
80
400
75
EC800-253
0.025
80
500
95
EC800-503
0.05
80
650
95
EC1000-502
0.005
100
485
65
EC1000-103
0.01
100
485
75
EC1000-253
0.025
100
610
95
EC1200-502
0.005
120
425
75
Dimensions in Millimetres
15
L
15
5
D
