Dimension Inches Millimeters
A 1.02±0.02 26.0±0.5
B 0.81 Max. 20.5 Max.
C 0.79 Min. 20.0 Min.
D 0.24±0.008 6.0±0.2
E 0.214±0.012 5.45±0.3
F 0.20±0.012 5.0±0.3
G 0.214±0.012 Dia. Dia. 3.2±0.2
H 0.12±0.012 3.0±0.3
J 0.10±0.012 2.5±0.3
K 0.10 2.5
L 0.08±0.012 2.0±0.3
M 0.04±0.008 1.0±0.2
N 0.02±0.008 0.6±0.2
Description:
Powerex Super Fast Recovery
Diodes are designed for use in
applications requiring fast
switching.
Features:
Ⅺ
Non-Isolated Package
Ⅺ
Planar Chips
Ⅺ trr = 300 ns Max.
Applications:
Ⅺ Snubber Circuits
Ⅺ
Switching Power Supplies
Ⅺ
Free Wheeling
Ordering Information:
Select the complete eight digit
part number you desire from
the table below.
Example: RM25HG-24S is a
1200 Volt, 25 Ampere Super Fast
Recovery Single Diode.
Current Rating Voltage
Type Amperes Volts (x50)
RM 25 24
D-
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Super Fast Recovery
Single Diode
25 Amperes/1200 Volts
RM25HG-24S

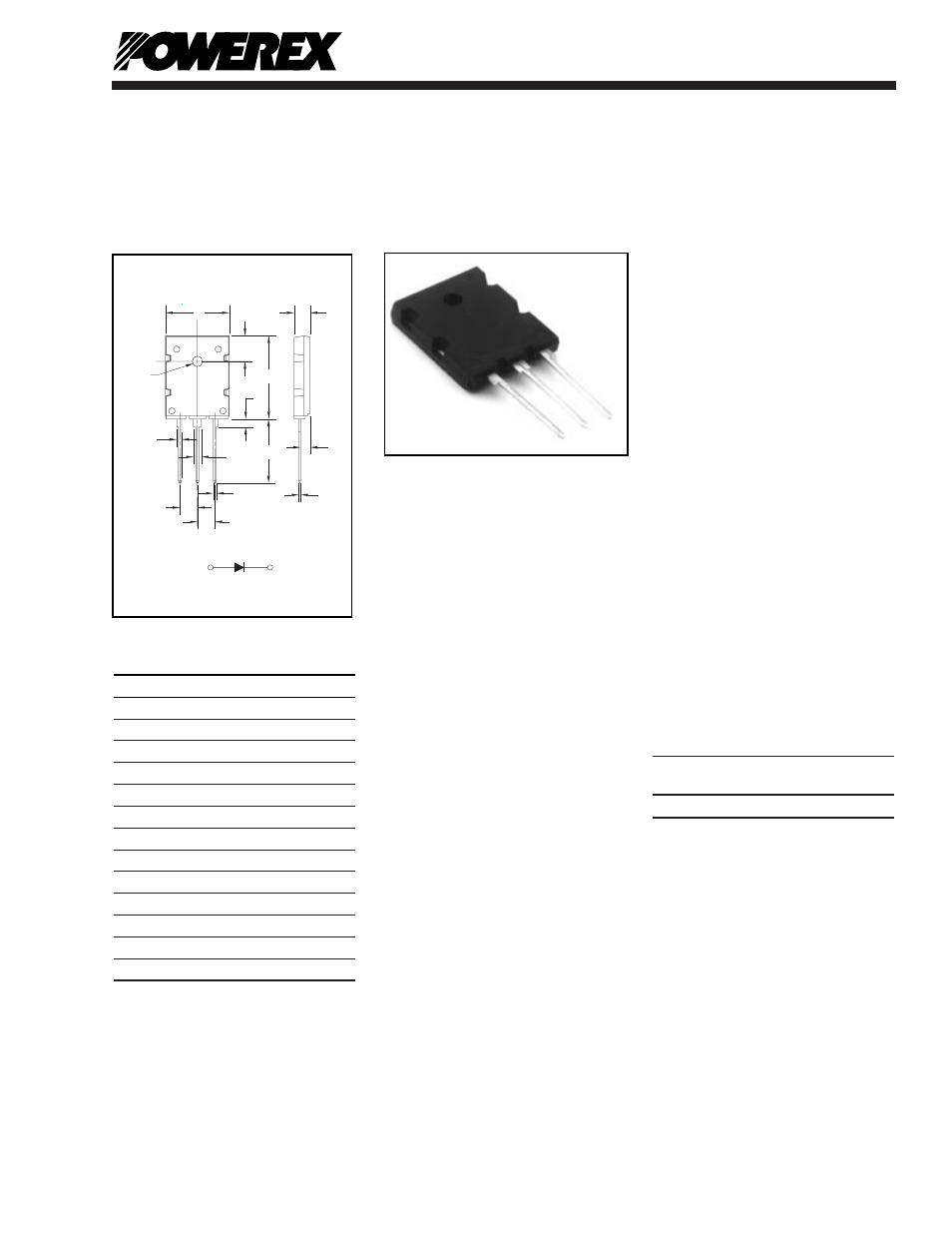

Outline Drawing
RM25HG-24S
Super Fast Recovery
Single Diode
25 Amperes/1200 Volts
A
C
D
E
E
F B
H
N M
K
J
L
G - DIA.
1 2 3
1 2
3 4
