T9K7
Phase Control Thyristor
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724)925-7272 1000 Amperes 3200 Volts
FEATURES:
Low On-State Voltage
High di/dt Capability
High dv/dt Capability
Hermetic Ceramic Package
Excellent Surge and I
2 t Ratings
APPLICATIONS:
DC Power Supplies
ORDERING INFORMATION Motor Controls
AC Soft-Starters
Select the complete Part Number using the table below.
EXAMPLE:
TK9732 is a 3200V-1000A SCR with 200ma
IGT and 12 inch gate and cathode potential leads.
PART
Voltage
Rating
Voltage
Code
Current
Rating
V
DRM
-V
RRM
I
tavg
T9K7 2400 V 24 1000A
2600V 26
2800V 28
3000V 30
3200V 32
Revised: 5/11/2004

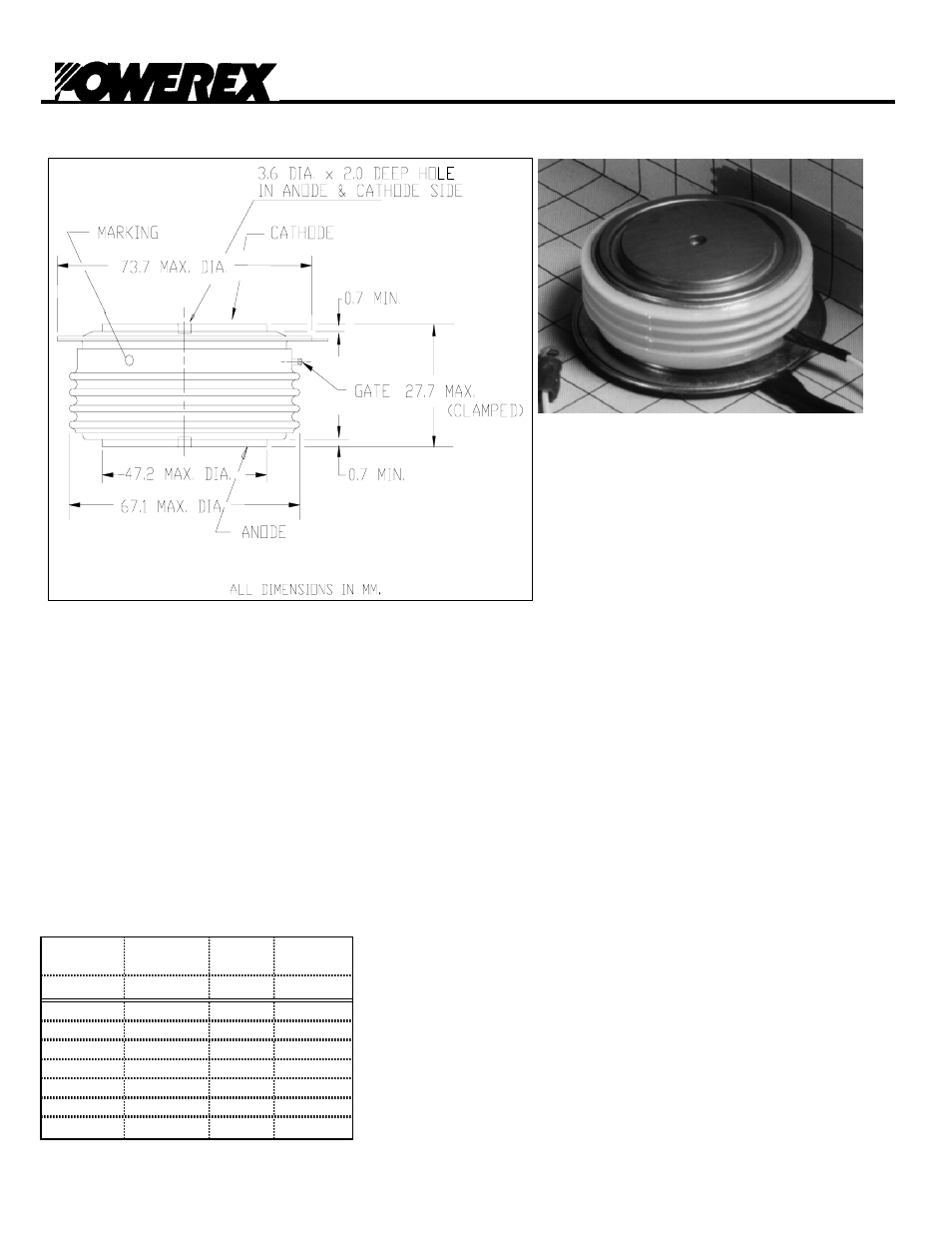

The T9K7 is a medium voltage, high
current disc pack SCR employing a Bar
gate, amplifying gate structure. This
amplifying gate design allows the SCR to
be reliably operated at high di/dt and
high dv/dt conditions in phase control
applications.
