Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272 General Purpose Rectifier
www.pwrx.com 1200 Amperes Average
2400 Volts
Revision Date: 09/01/2006
R7S0
1200A

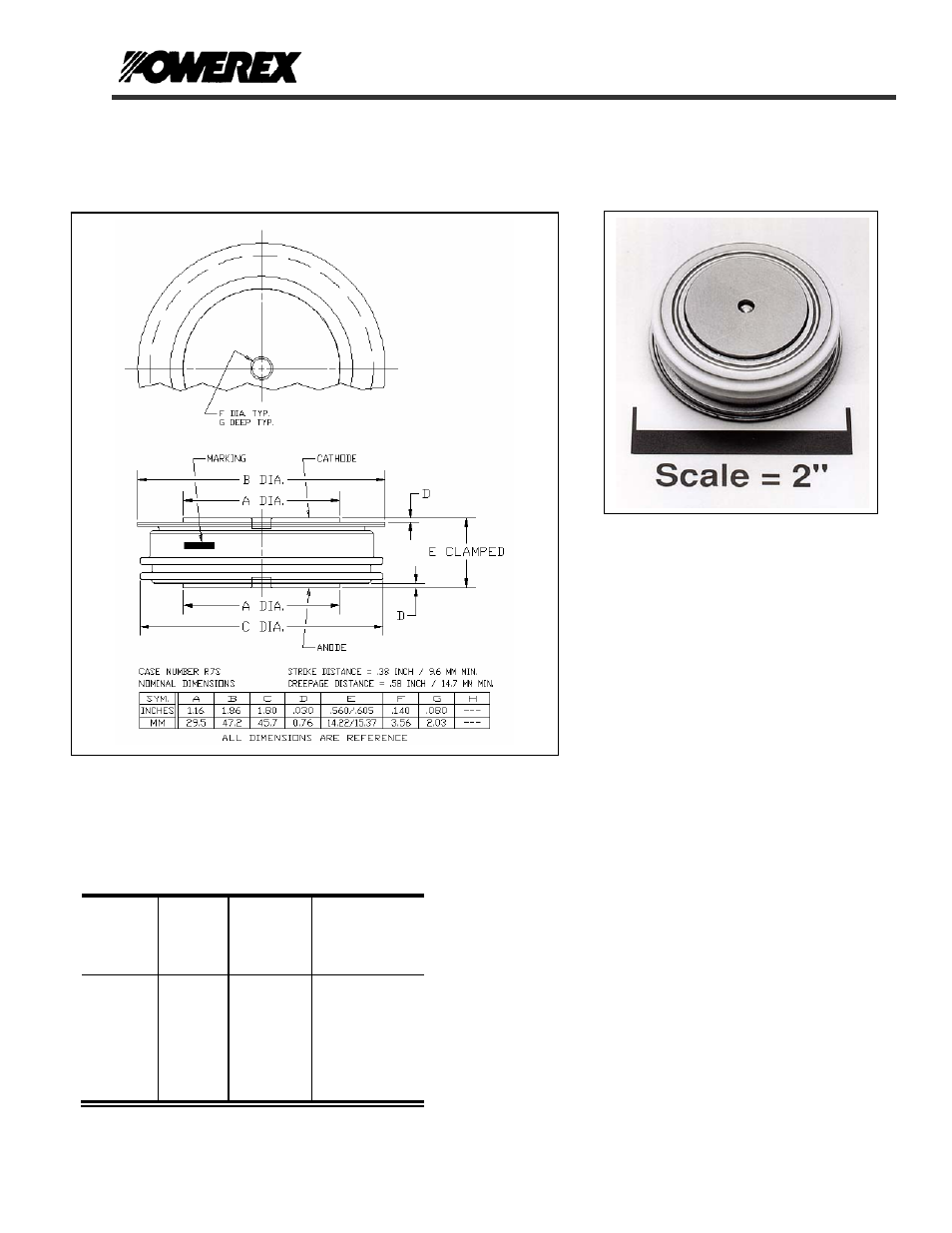

R7S0 1200A (Outline Drawing)
Ordering Information
:
Select the complete eight digit module part number from the table below.
Example: R7S01812XX is a 1800V 1200 A General Purpose Rectifier
Voltage
Current
Typical Recovery
Time
Type
V
RRM
(Volts)
I
T(av)
(A)
t
RR
(µsec)
R7S0 18
through
24
1800V
through
2400V
12
1200A
XX
10 µsec
typical
Description:
Powerex General Purpose
Rectifiers are designed for high
blocking voltage capability with low
forward voltage to minimize
conduction losses. The hermetic
Pow-R-Disc devices can be
mounted using commercially
available clamps and heatsinks.
Features:
Low Forward Voltage
Low Thermal Impedance
Low Profile Package
Hermetic Packaging
Excellent Surge and I 2 t Ratings
Applications:
Power Supplies
Motor Control
Free Wheeling Diode
Battery Chargers
Resistance Welding
R7S0 1200A General Purpose Rectifier
1200 Amperes Average, 2400 Volts
