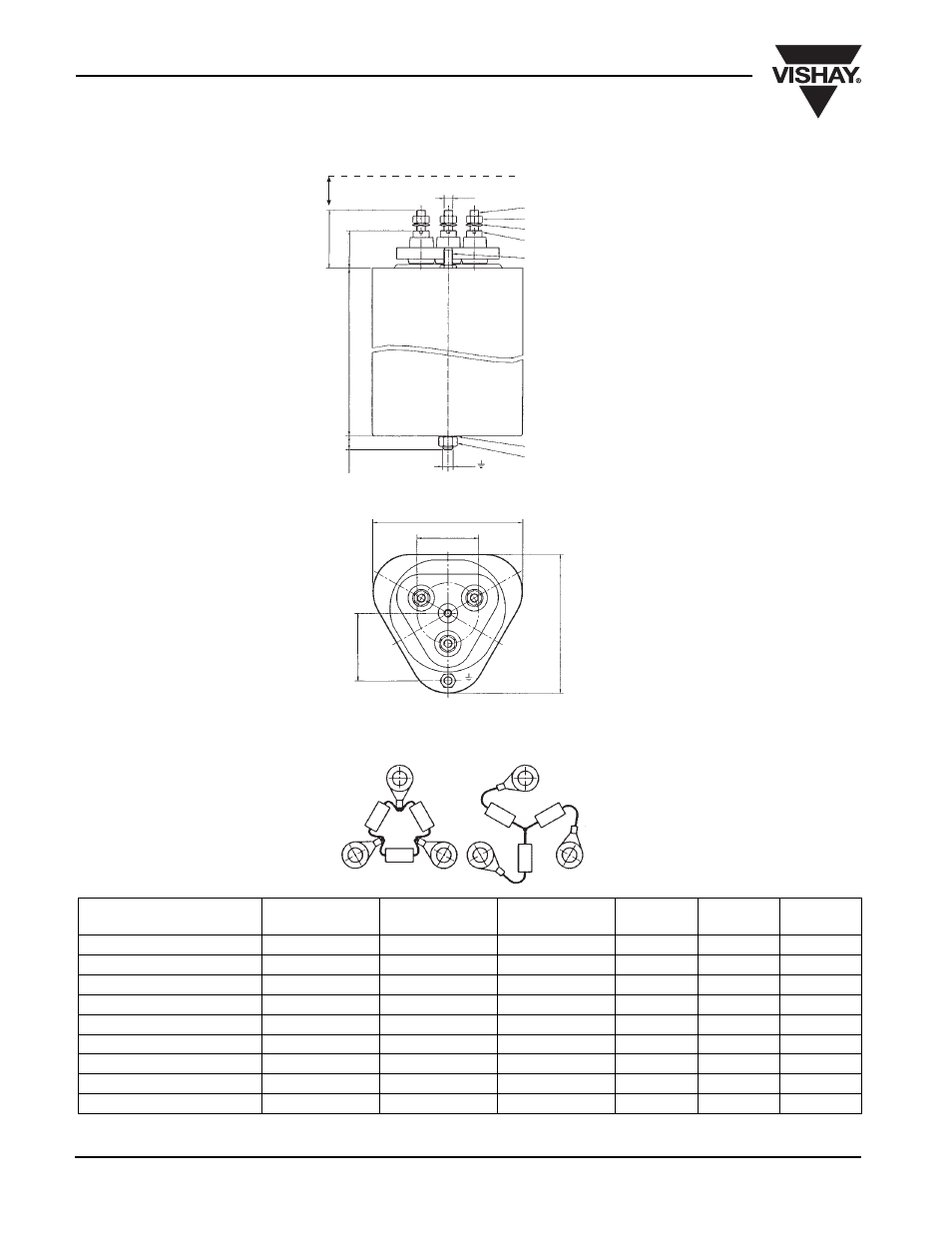

Vishay ESTA ESTAdry D-Type Capacitor For Indoor Use
www.vishay.com Document Number: 13050
4 Revision: 28-Mar-06
REQUIRED SPACE FOR BULGING
DISCHARGE RESISTORS
M10
M12
8.
5
1
1
+
H
± 1
2
-
4
4
2
+
2
-
8
6
2
+
SCREW BOLT M10
HEXAGONAL-NUT M10
SPRING WASHER WAVE
SLOTTED NUT M10
SCREW BOLT M8 X 15
TOOTHED LOCK WASHER
HEXAGONAL NUT M12
172
70
0
6
1
8
7
5
2
∆ Y
TYPE
RATED
VOLTAGE [V]
RATED OUTPUT
[KVAR]
CAPACITANCE
[µF]
CURRENT
[A]
WEIGHT
[KG]
HEIGHT H
[mm]
PHMKDG 400.3.50 400 50 3 x 331.6
Δ
72 app. 4.9 210
PHMKDG 415.3.40 415 40 3 x 246.4
Δ
56 app. 4.9 210
PHMKDG 415.3.50 415 50 3 x 308.0
Δ
70 app. 4.9 210
PHMKDG 440.3.50 440 50 3 x 274.0
Δ
66 app. 4.9 210
PHMKDG 440.3.56, 2 440 56.2 3 x 308.0
Δ
74 app. 4.9 210
PHMKDG 460.3.50 460 50 3 x 250.7 Δ 63 app. 4.9 210
PHMKDG 525.3.50 525 50 3 x 192.5 Δ 55 app. 4.9 210
PHMKDG 690.2.50 690 50 3 x 334.3 Y 42 app. 4.9 210
PHMKDG 760.2.50 760 50 3 x 275.5 Y 38 app. 4.9 210
