Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724)925-7272

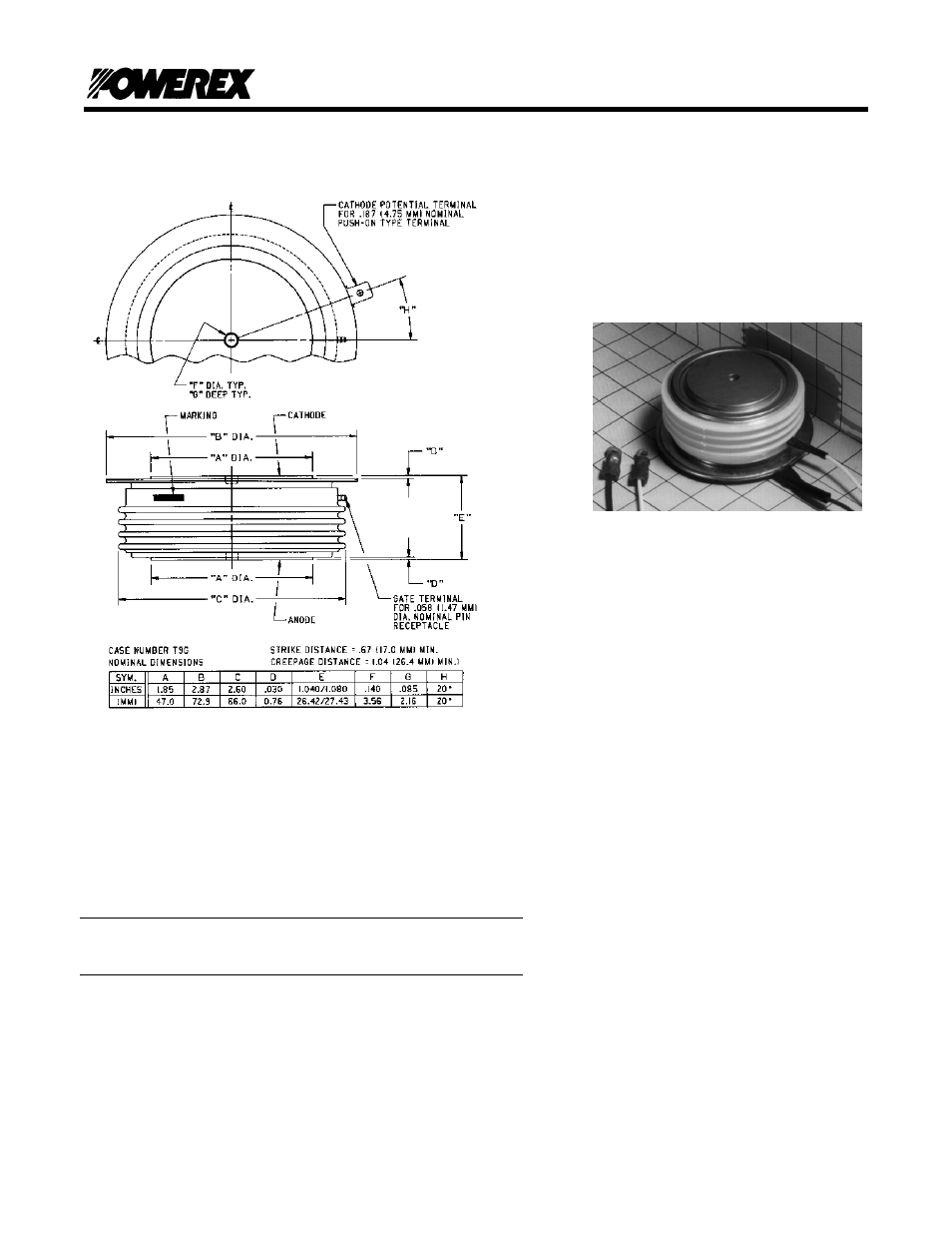

Phase Control Thyristor
1660 Amperes/Up to 1800 Volts
Ordering Information
Select the complete 10 digit device part number from the table below,
ie. T9G0161603 is a 1600V 1660A Phase Control SCR.
Description:
The T9GO is a medium voltage, high current disc
pack SCR employing a center fired, amplifying
gate structure suitable for operation to 400 Hz.
The amplifying gate allows this SCR to be
reliably operated at high di/dt and high dv/dt
conditions in phase control applications.
Features:
Low On-State Voltage
High di/dt Capability
High dv/dt Capability
Hermetic Packaging
Excellent Surge and I 2 t Ratings
Replaces PRX C450 Thyristor
Applications:
DC Power Supplies
Motor Controls
AC Switches
T9G0
1660A
Voltage
V
DRM
V
RRM
Voltage
Code
Current
IT
(avg)
Current
Code
Tq I
GT
T9G0 1200V
1400V
1600V
1800V
12
14
16
18 1660
A
16 0 3
022300
