Trench Gate Design
Single IGBTMOD™
600 Amperes/250 Volts
CM600HA-5F
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

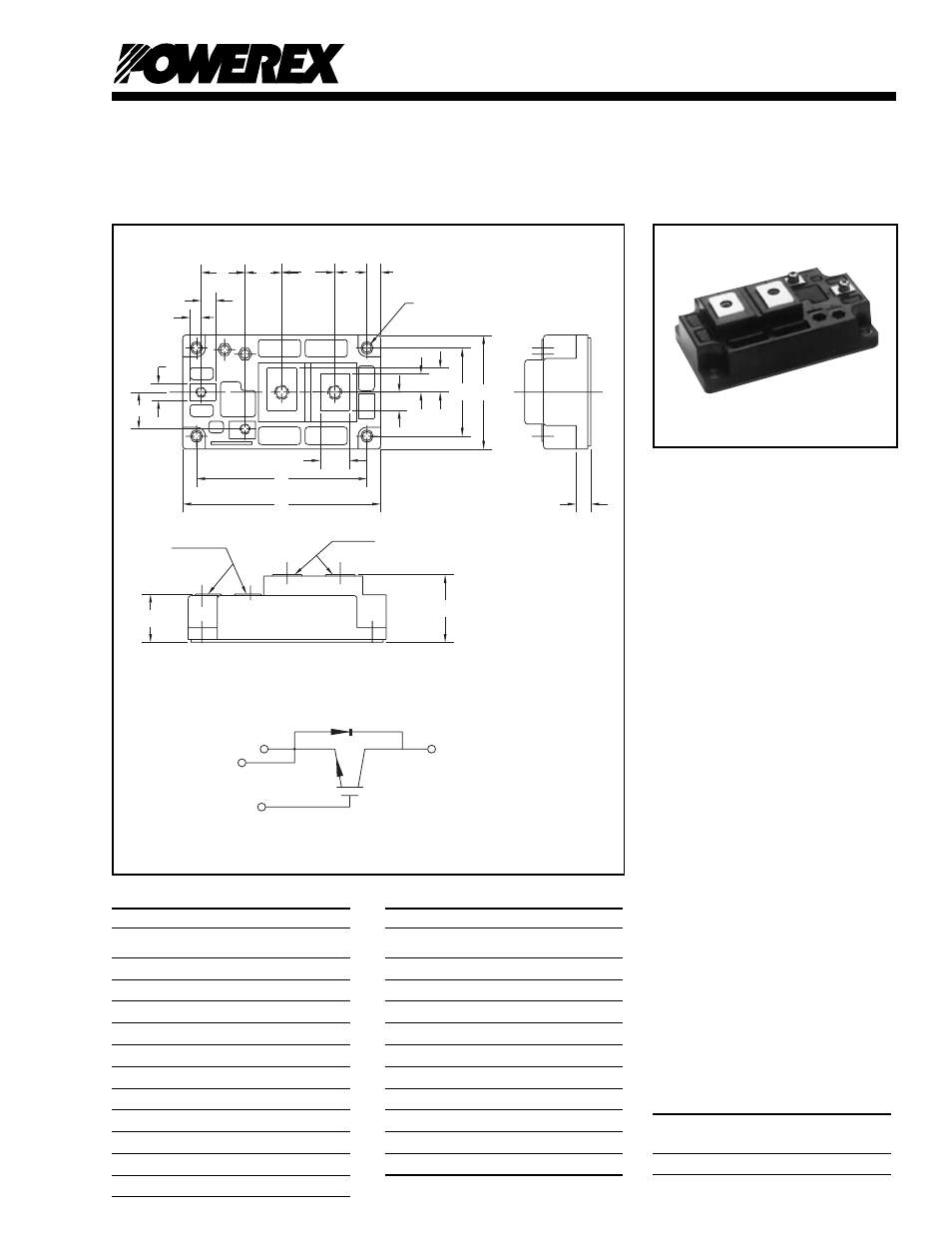

Outline Drawing and Circuit Diagram
Dimensions Inches Millimeters
A 4.25 108.0
B 3.66 93.0
C 0.63 16.0
D 0.30 7.5
E 0.69 17.5
F 1.14 29.0
G 0.79 20.0
H 0.94 24.0
J 0.31 7.9
K 0.24 6.0
L 2.44 62.0
M 1.89 48.0
Dimensions Inches Millimeters
N 0.39 10.0
P 0.39 10.0
Q 0.51 13.0
R 0.33 8.5
S 1.42 36.0
T 1.02 25.8
U M6 Metric M6
V M4 Metric M4
W 0.2 56 6 .5
X 0.79 20.0
Y 0.35 9.0
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module consists
of one IGBT Transistor in a single
configuration, with a reverse con-
nected super-fast recovery free-
wheel diode. All components and
interconnects are isolated from the
heat sinking baseplate, offering
simplified system assembly and
thermal management.
Features:
□
Low Drive Power
□
Low V
CE(sat)
□ Discrete Super-Fast
Recovery Free-Wheel
Diodes
□
High Frequency Operation
(20-25 kHz)
□
Isolated Baseplate for Easy
Heat Sinking
Applications:
□ DC Chopper
□
Inverter
□
UPS
□ Forklift
Ordering Information:
Example: Select the complete
nine digit module part number you
desire from the table below - i.e.
CM600HA-5F is a 250V (V
CES
),
600 Ampere Single IGBTMOD™
Power Module.
Current Rating V
CES
Type Amperes Volts (x 50)
CM 600 5
C
G
E
E
E
E
G
C
A
B
C
F
K
J
E D
M
N
P Q
R
S
U - THD.
(2 TYP.)
V -THD.
(2 TYP.)
W - DIA. (4 TYP.)
y
x
T
L
H G
