Dimension
Inches
Millimeters
A
3.54 90.0
B
3.07 78.0
C
2.91 74.0
D
2.60 66.0
E
1.97 50.0
F
1.26 32.0
G
1.22 31.0
H
1.18 30.0
J
0.90 23.0
K
0.79
20.0
L
0.63 16.0
M
0.55 14.0
N
0.26 6.5
P 0.177±0.004 Dia. Dia. 4.5±0.1
Description:
Powerex Three-Phase Diode
Bridge Modules are designed for
use in three-phase bridge applica-
tions. The modules are isolated
consisting of six rectifier diodes.
Features:
Ⅺ
Isolated Mounting
Ⅺ
Planar Chips
Applications:
Ⅺ
Inverters
Ⅺ
DC Power Supplies
Ⅺ
AC Motor Control Front End
Ordering Information:
Select the complete eight digit
module part number you desire
from the table below.
Example: ME600815 is an
800 Volt, 150 Ampere Three-
Phase Diode Bridge Module.
Voltage
Current Rating
Type
Volts (x100)
Amperes (x10)
ME60
08
15
D-87
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
Three-Phase
Diode Bridge Modules
150 Amperes/800 Volts
ME600815

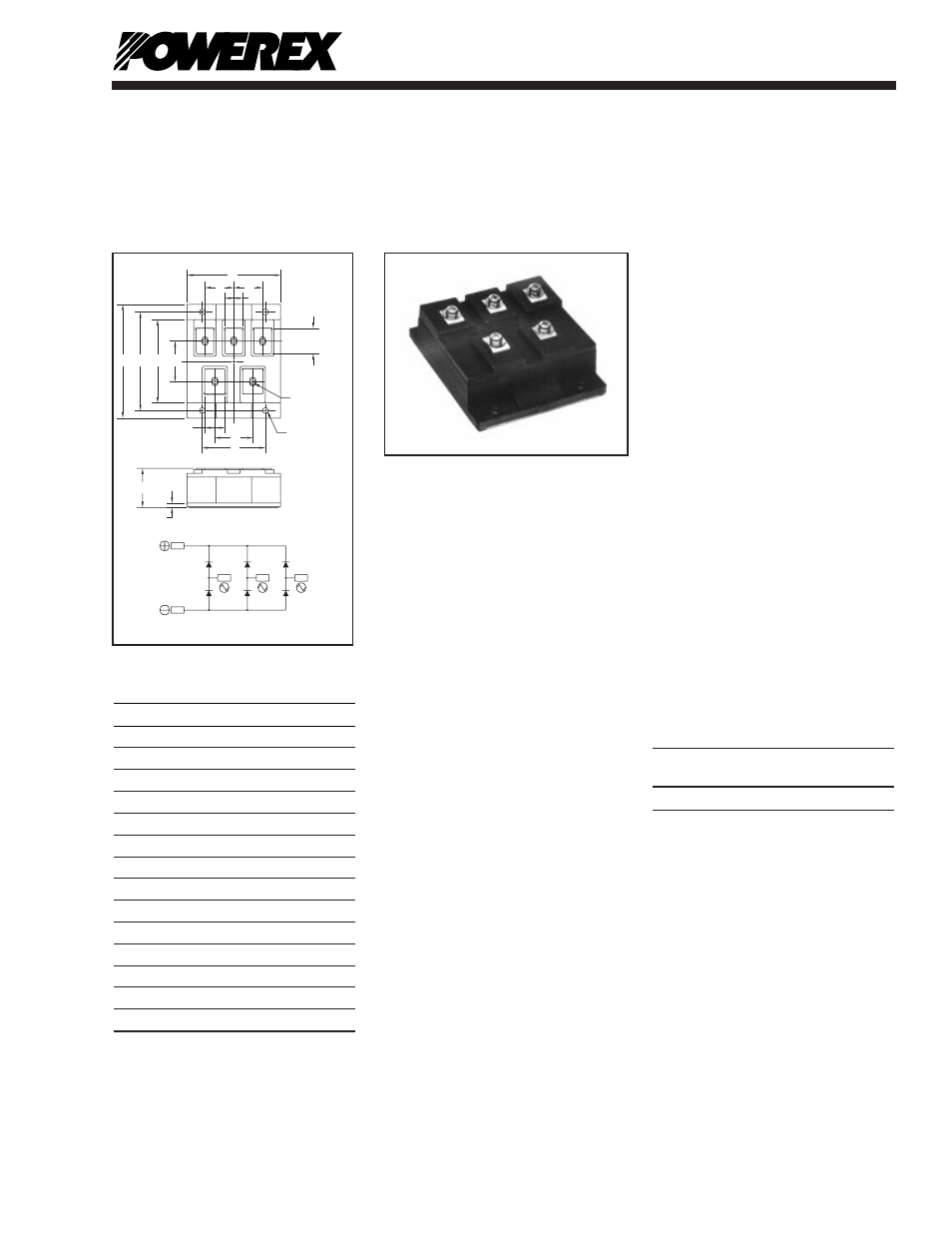

Outline Drawing
ME600815
Three-Phase Diode Bridge Modules
150 Amperes/800 Volts
J
J
M
F
L
H
E
C
B
D
A
K (TYP.)
N
G
P - DIA. (4 TYP.)
5 - M6
P
N
