VS-GB400AH120U
www.vishay.com
Vishay Semiconductors
Revision: 27-May-13
3
Document Number: 94790
For technical questions within your region:
,
,
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000

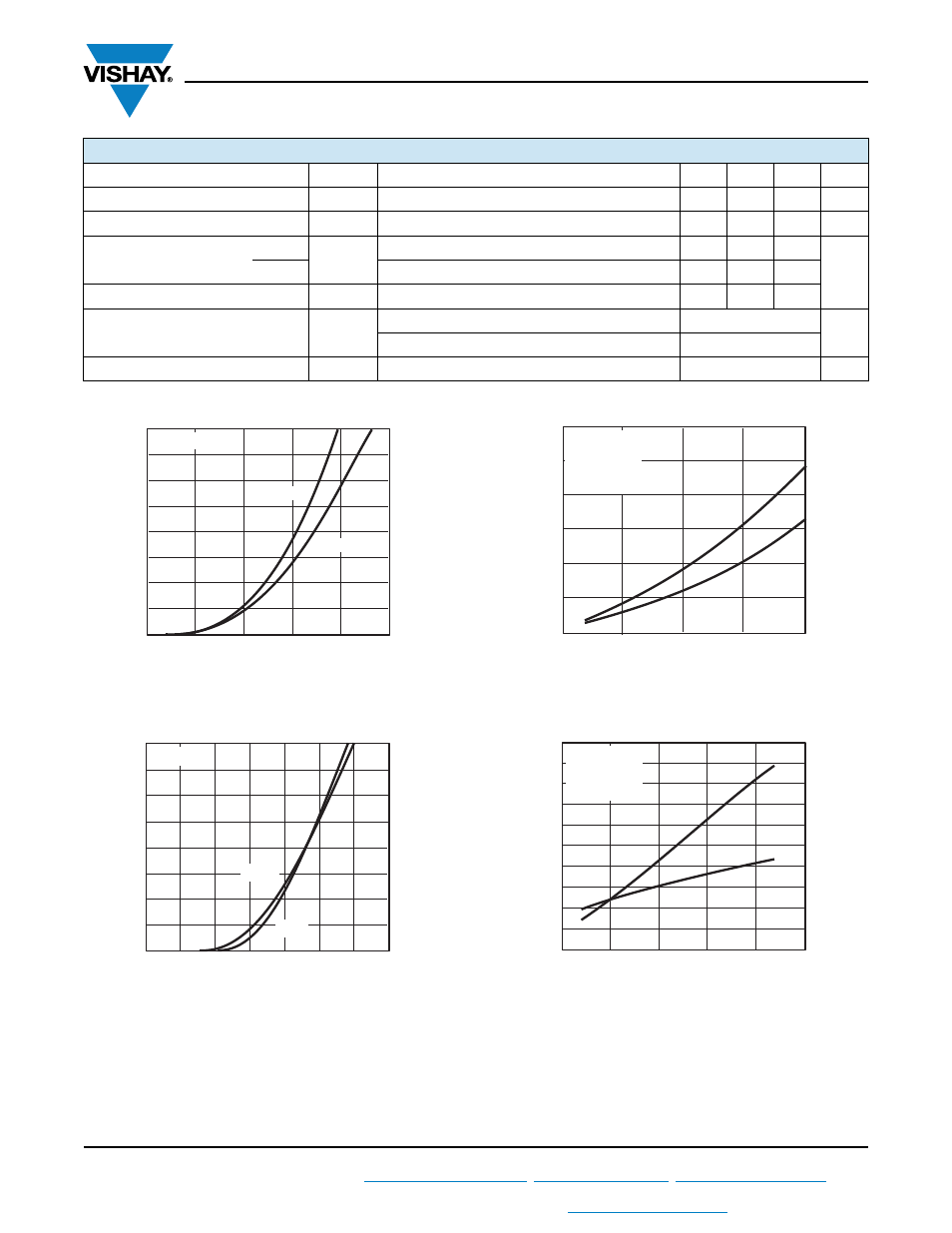

Fig. 1 - IGBT Typical Output Characteristics
Fig. 2 - IGBT Typical Transfer Characteristics
Fig. 3 - IGBT Switching Loss vs. Collector Current
Fig. 4 - IGBT Switching Loss vs. Gate Resistor
THERMAL AND MECHANICAL SPECIFICATIONS
PARAMETER
SYMBOL
TEST CONDITIONS
MIN.
TYP.
MAX.
UNITS
Maximum junction temperature range
T
J
-
-
150
°C
Storage temperature range
T
Stg
- 40
-
125
°C
Junction to case
per module
IGBT
R
thJC
-
-
0.044
K/W
Diode
-
-
0.088
Case to sink
R
thCS
Conductive grease applied
-
0.035
-
Mounting torque
Power terminal screw: M5
2.5 to 5.0
Nm
Mounting screw: M6
3.0 to 6.0
Weight
300
g
