P-2
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
POW-R-BRIK™
Phase Control Modules
345-800 Amperes/400-3000 Volts
Configuration Reference:
The POW-R-BRIK™ part number
system takes the form
P3 Z7A
CT7 00 W16 where:
•
P3 is the configuration number.
The configurations are shown
pictorially in the right hand
column.
•
Z7A is the package type per
the outline drawings Z7A and
Z9A on this data sheet.
•
CT7 denotes the element code.
The Element Code Reference
at the end of this data sheet
provides information on the
standard element codes
including the corresponding
disc device using the element.
Refer to the appropriate disc
package data sheets in the
Powerex Semiconductor Data
Book for additional device
specifications.
•
00 denotes special features:
00 – module includes
standard thermistor
XT – no thermistor
AA-ZZ – denotes unique
customer specification
•
W16 denotes voltage code per
the table below. Note that not
all voltage ratings are available
for every element. Refer to the
Element Code Reference for
available voltage ranges for a
given element.
Elements Voltage
Voltage Rating Code
400 V04
600 V06
800 V08
1000 W10
1200 W12
1400 W14
1600 W16
1800 W18
2000 W20
2200 W22
2400 W24
2600 W26
2800 W28
3000 W30

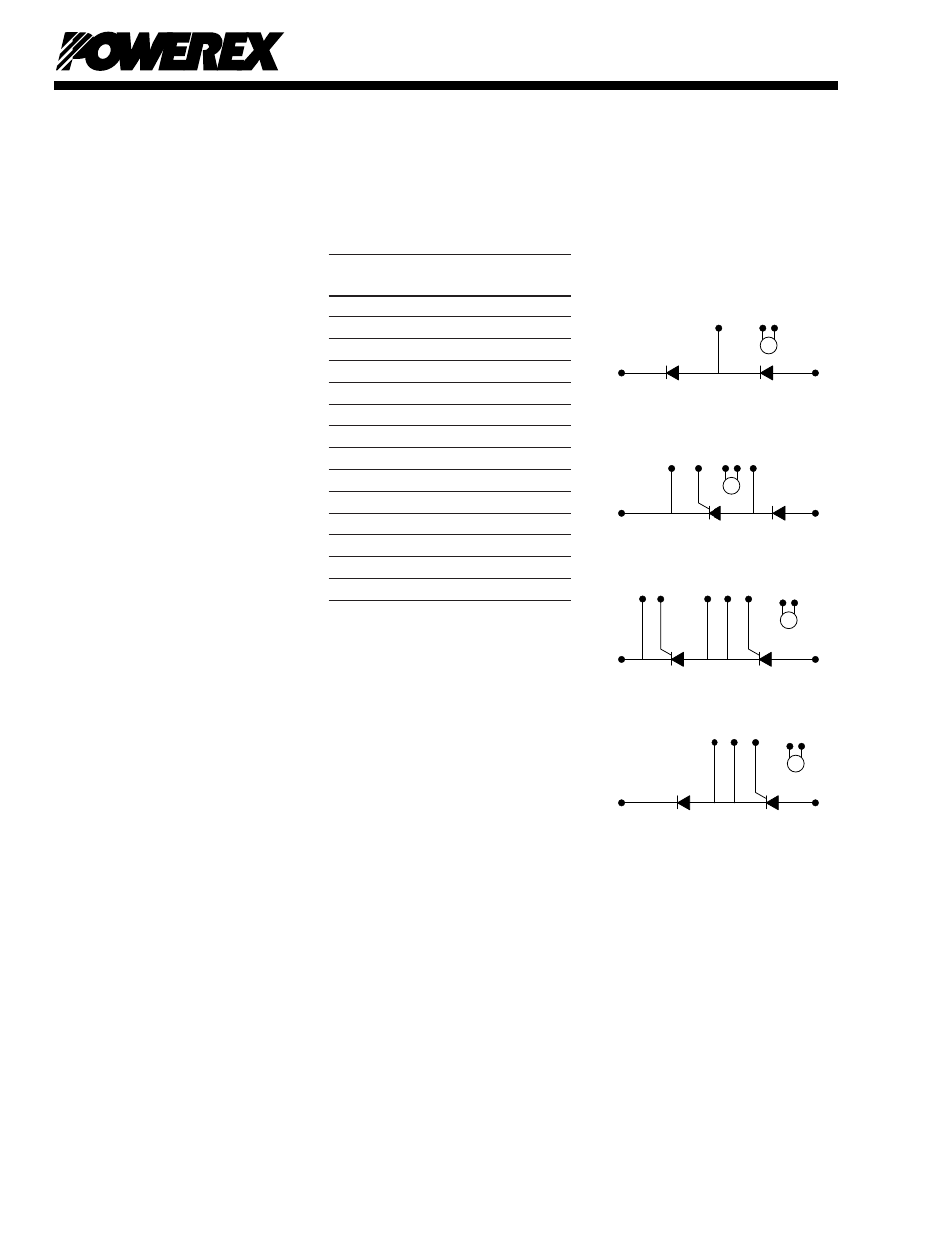

S
S
Element 1
S
S
Element 2
Element 1 Element 2
Element 1 Element 2
Element 1 Element 2
P1 - DIODE
P4 - FAST DIODE*
P2 - SCR/DIODE
P5 - FAST SCR/FAST DIODE*
P3 - SCR/SCR
P6 - FAST SCR/FAST SCR*
P7 - DIODE/SCR
P8 - FAST DIODE/FAST SCR*
* Consult Factory for Available Ratings.
Circuit Configurations:
